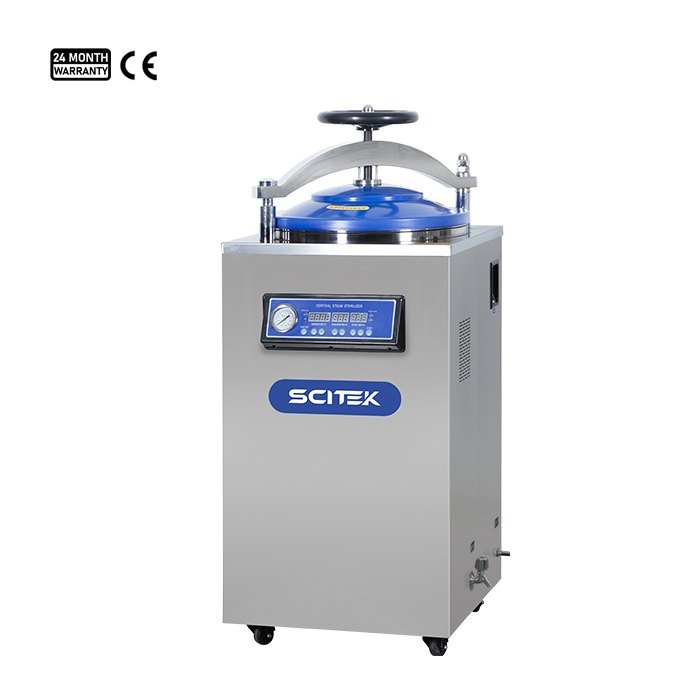

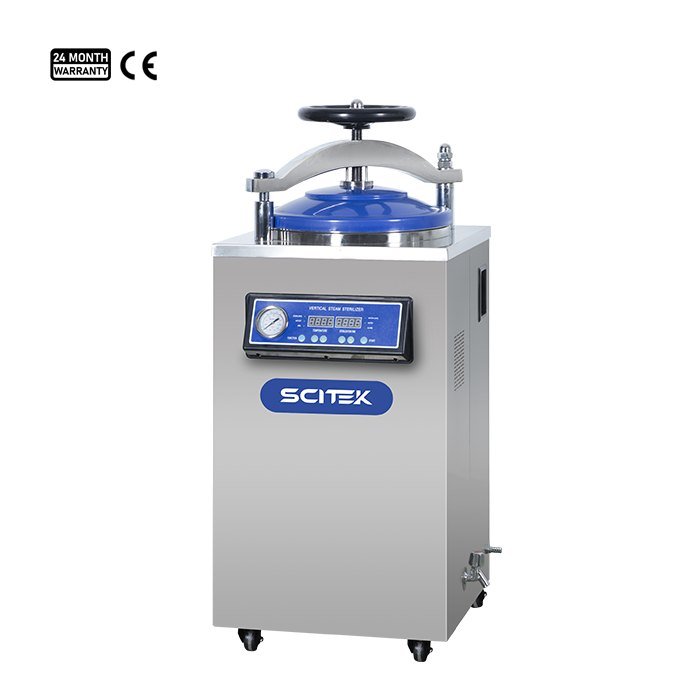

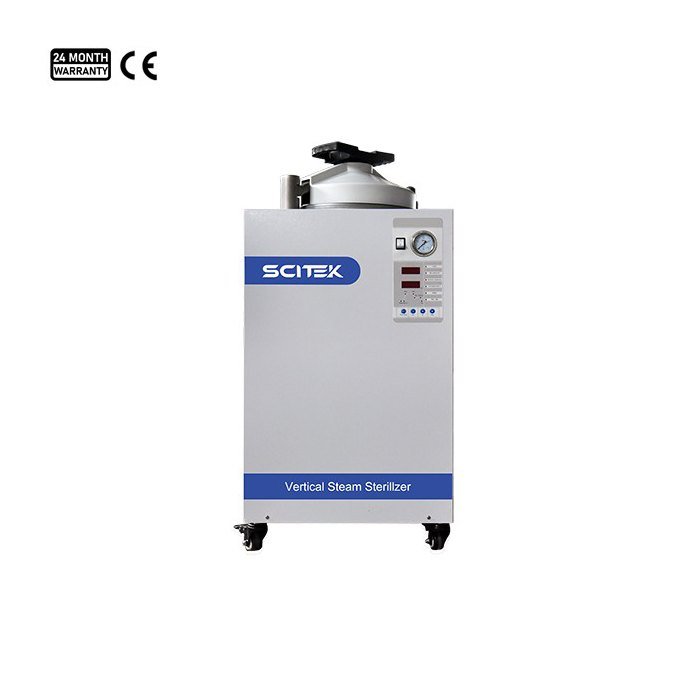

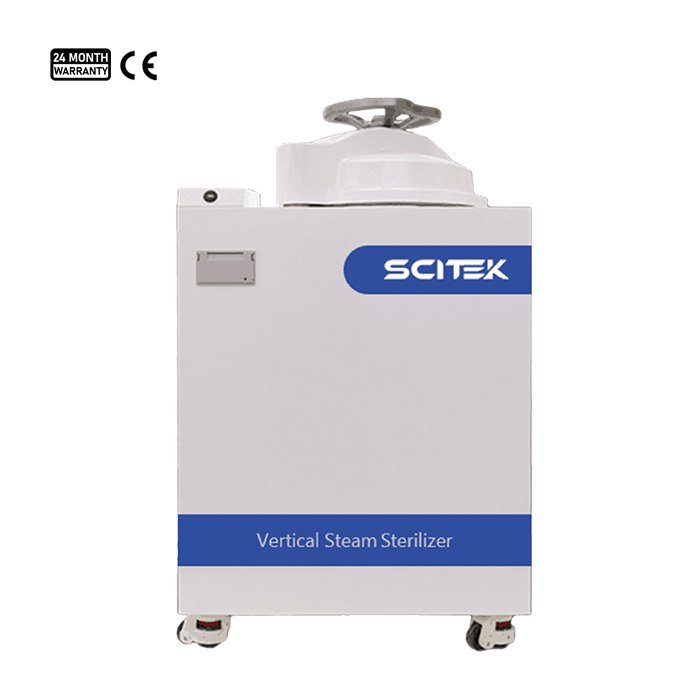

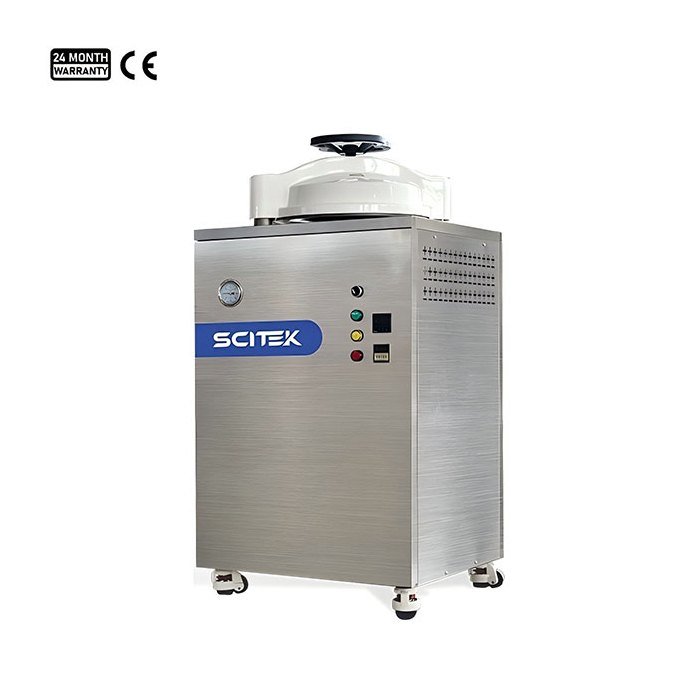

Vertical Autoclave
- Models
- ST-V50E; ST-V80E; ST-V100E
- Capacity
- 50L
- External Size (WxDxH)(mm)
- 476x616x990
- Chamber Size (ØxH)(mm)
- Ø316x667
- Chamber Material
- SUS304
The vertical pressure steam sterilizer is a primary device, low-priced, and equipped with an intuitive control panel and operating buttons, which make it easy to use, even for untrained pers…
Added to your inquiry list. It travels with your next quote request.
3 models
Product Description
Vertical Autoclave specification across the range. Figures are the manufacturer’s published values.
| Model | ST-V50E | ST-V80E | ST-V100E |
|---|---|---|---|
| Capacity | 50L | 80L | 100L |
| External Size (WxDxH)(mm) | 476x616x990 | 546x688x1030 | 566x708x1295 |
| Chamber Size (ØxH)(mm) | Ø316x667 | Ø386x695 | Ø400x800 |
| Chamber Material | SUS304 | ||
| Sterilization Temperature | 105~136 ℃ | ||
| Designed Temperature | 150℃ | ||
| Max.Working Temperature | 136 ℃ | ||
| Dissolution Temperature | 40~100℃ | ||
| Warming Temperature | 40~60℃ | ||
| Temp.Accuracy | 0.1℃ | ||
| Designed Pressure | 0.3 Mpa | ||
| Max.Sterilization Pressure | 0.23 Mpa | ||
| Sterilization Time Range | 0~99min | ||
| Temp. Controller | PID control by microprocessor | ||
| Display | LED display | ||
| Drying Function | YES | ||
| Drying Time | 15min | ||
| Sterilization Program | ●High temperature instrument program ●Low temperature instrument program ●Culture medium sterilization warming program ●Culture medium dissolution warming program | ||
| Water Injection Method | Manual | ||
| Power Consumption | 3KW | 4.5KW | 5.4KW |
| Power Supply | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Standard SS Basket | 2pcs | 2pcs | 2pcs |
| Net Weight | 55kg | 65kg | 80kg |
| Gross Weight | 90kg | 100kg | 120kg |
| Shipping Size (WxDxH)(mm) | 730x700x1250 | 800x770x1300 | 800x770x1480 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.
- Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.
- Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.
- Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
- Automatic operation of sterilization with PID microprocessor control and LED display.
- Positive pulsing function removes the air efficiently.
- Automatic air discharge control prevents boil over of liquids and explosions of bottles
- With Power-off memory function.
Applications
Where it is used
- Pressure steam sterilizer, commonly known as autoclave, is widely used for effective sterilization in various industries. Following is a brief description of their applications.
- Vertical pressure steam autoclaves are vital in sterilizing medical devices, equipment, and supplies in hospitals, clinics, and healthcare facilities. They ensure the elimination of bacteria, viruses and other pathogens, reducing the risk of infection during medical procedures.
- Autoclaves sterilize laboratory glassware, tools, and media in research and analytical laboratories. This is critical to maintaining sterile experiment conditions and ensuring accurate and reliable results.
- The pharmaceutical industry uses autoclaves to sterilize equipment, containers, and raw materials to meet stringent quality and safety standards in manufacturing drugs and pharmaceutical products.
- In biotechnology research and production, autoclaves are used to sterilize media, reagents, and equipment to ensure the integrity of experiments and the production of biotechnology products.
- In short, pressure steam sterilizers have different applications in several industries, helping to maintain aseptic conditions, ensure product quality, and safeguard public health.
- Autoclaves are vital in sterilizing medical devices, equipment, and supplies in hospitals, clinics, and healthcare facilities. They ensure the elimination of bacteria, viruses and other pathogens, reducing the risk of infection during medical procedures.
