Vacuum Pump
- Models
- VP-D15; VP-D20; VP-D20A; VP-D30; VP-D30A; VP-D30I; VP-D30AI; VP-D60; VP-D60A
- Pump Head
- 1
- Pump Head Material
- Nylon
- Ultimate Vacuum
- 250 mbar
- Speed of Evacuation
- 15 L/Min

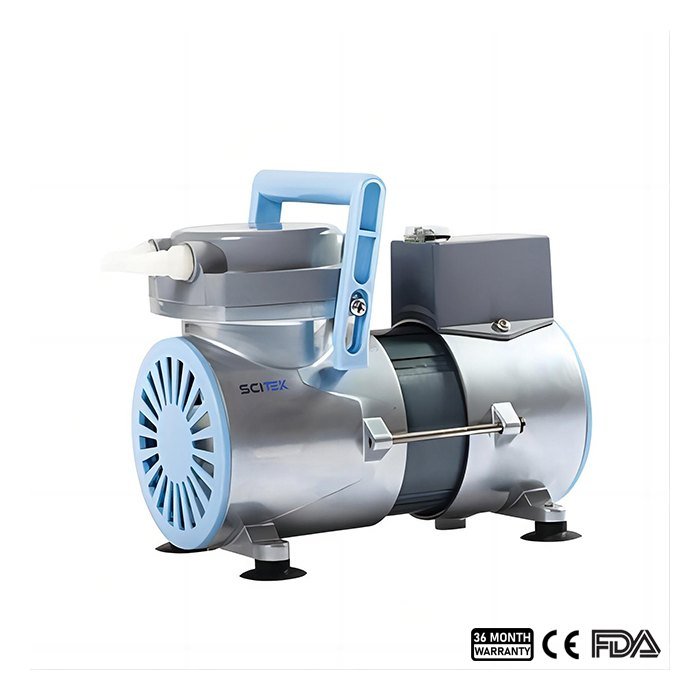

This diaphragm vacuum pump features a compact structure, low noise, easy to use, etc.
Added to your inquiry list. It travels with your next quote request.
9 models
Product Description
Vacuum Pump specification across the range. Figures are the manufacturer’s published values.
| Model | VP-D15 | VP-D20 | VP-D20A | VP-D30 | VP-D30A | VP-D30I | VP-D30AI | VP-D60 | VP-D60A |
|---|---|---|---|---|---|---|---|---|---|
| Pump Head | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Pump Head Material | Nylon | Anticorrosive materials | |||||||
| Ultimate Vacuum | 250 mbar | 200 mbar | 50 mbar | 200 mbar | |||||
| Speed of Evacuation | 15 L/Min | 20 L/Min | 30 L/Min | 60 L/Min | |||||
| Pressure | 30 Positive or negative pressure | Negative pressure | 30 Positive or negative pressure | Negative pressure | 30 Positive or negative pressure | ||||
| Inlet(mm) | φ6 | ||||||||
| Outlet(mm) | φ6 | Built-in soundproofing cotton | φ6 | Silencer | φ6 | ||||
| Working Temp. | 7~40℃ | ||||||||
| Pump Body Temp. | <55℃ | ||||||||
| Noise Level | <60 dB | ||||||||
| Power | 75W | 160W | |||||||
| Diaphragm | / | Imported rubber | |||||||
| Valves | / | Imported rubber | |||||||
| Power Supply | AC220/110V±10%, 50/60Hz | ||||||||
| Size (W×D×H)(mm) | 245x12 0x160 | 270x130 x210 | 270x130 x210 | 230x180 x265 | 230x180 x265 | 350x130 x220 | 350x130 x220 | 310x200 x210 | 310x200 x210 |
| Shipping Size (W×D×H)(mm) | 360x24 0x270 | 340x220 x330 | 340x220 x330 | 340x230 x330 | 340x230 x330 | 380x230 x340 | 380x230 x340 | 410x360 x290 | 410x360 x290 |
| N.W./G.W. (kg) | 4/6 | 7/9 | 7/9 | 7.5/10 | 7.5/10 | 10/13 | 10/13 | 10/15 | 10/15 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 1. Oil free,clean exhausted air by built-in filter.
- 2. Automatic cooling exhaust system ensures 24h operation continuously.
- 3. TEFLON surface treatment, anti-gas corrosion.
- 4. Anticorrosive vacuum pump: VP-D20A, VP-D30A, VP-D30AI, VP-D60A.
- A substitute for water circulating vacuum pump and rotary vane vacuum pump.
- No need of any working medium. No friction between working parts.
- Vacuum level can be adjusted according to experiment requirements.
- All parts that contacting gases are made of PTFE + FV rubber with chemical resistance.
Applications
Where it is used

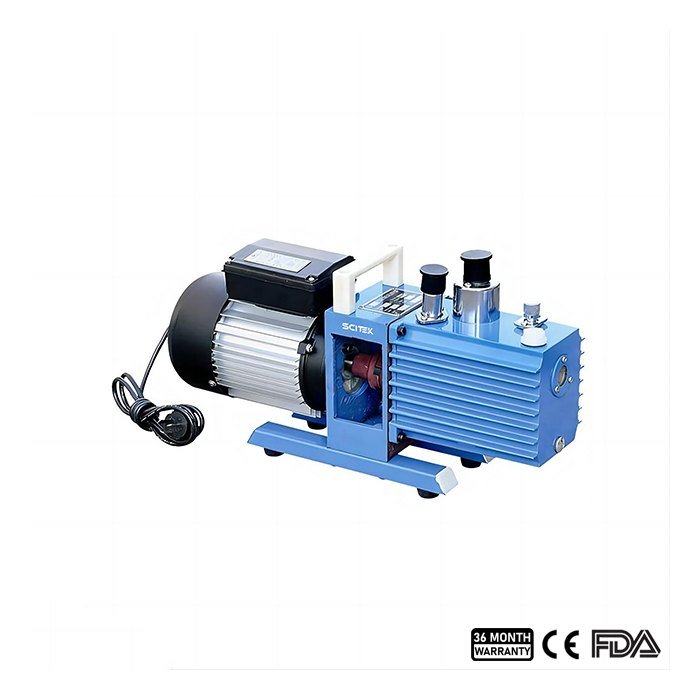

- Rotary slice vacuum pump is a basic equipment used to extract gas from sealed containers. It can be used alone or as a pre pumping pump for booster pumps, diffusion pumps, molecular pumps, maintenance pumps, and titanium pumps.
