Heating, cooling & storage

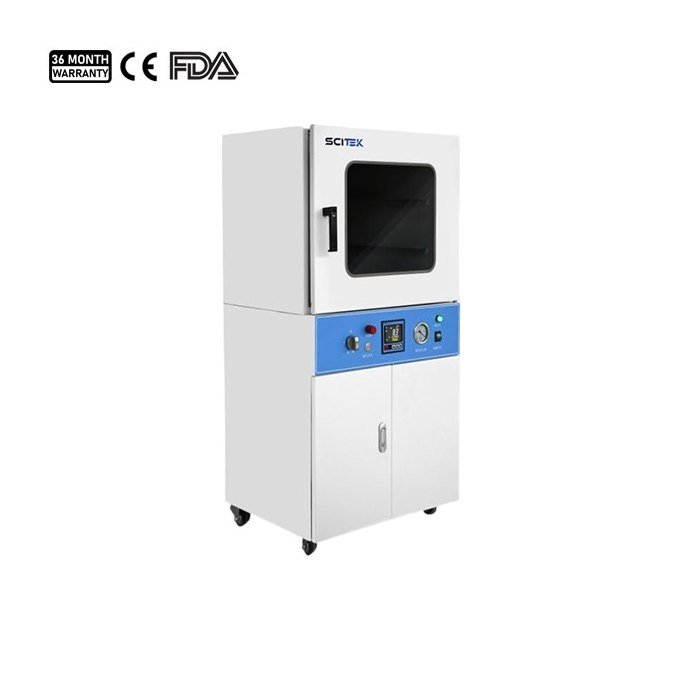

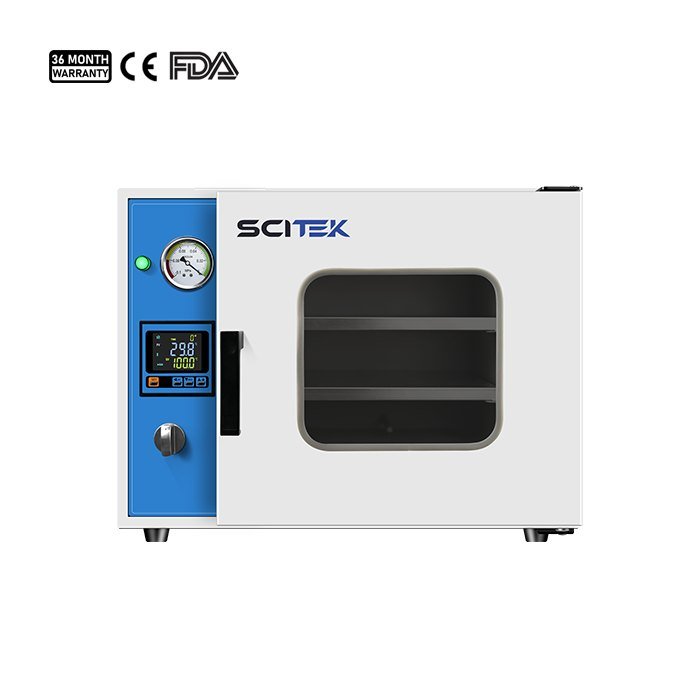

Vacuum Oven
- Models
- VO-20B; BE; VO-50B; VO-90B; VO-210B
- Capacity (L)
- 20L
- Temperature Range (℃)
- RT+10~250℃
- Display Resolution (℃)
- 0.1℃
- Small vacuum pump
- Optional
The vacuum oven's shell is crafted from cold-rolled steel plate with an electrostatically sprayed surface, while the inner tank features smooth arc transitions for easy cleaning.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Vacuum Oven specification across the range. Figures are the manufacturer’s published values.
| Model | VO-20B/BE | VO-50B/BE | VO-90B/BE | VO-210B/BE |
|---|---|---|---|---|
| Capacity (L) | 20L | 50L | 90L | 210L |
| Temperature Range (℃) | RT+10~250℃ | |||
| Display Resolution (℃) | 0.1℃ | |||
| Small vacuum pump | Optional | |||
| Vacuum Pressure | ＜133Pa | |||
| Shelves (Standard/Max) | 2/2 | 2/2 | 2/3 | 2/3 |
| Internal Material | VO-B (stainless steel) / VO-BE (304stainless steel) | |||
| External Material | Cold-rolled Steel Plate with Electrostatic Spraying | |||
| Power Supply | AC220/110V, 50/60Hz | |||
| Power(W) | 600W | 1400W | 2000W | 3000W |
| Chamber size(W×D×H)(mm) | 300x300x275 | 370x415x345 | 450x450x450 | 600x550x650 |
| Sizes(W×D×H)(mm) | 415x590x460 | 720x550x535 | 790x615x660 | 725x890x865 |
| Shipping size(W×D×H)(mm) | 525x670x550 | 790x645x635 | 855x670x768 | 910x1070x1165 |
| N.W/G.W. (kg) | 37/47kg | 61/68.5kg | 84.6/93kg | 170/189kg |
| Optional | Program-controlled instruments, printer, 485 interface, USB interface | |||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- The shell of the product is made of cold-rolled steel plate, the surface is electrostatically sprayed, and the inner tank is surrounded by arc transition, which is easy to clean.
- The unique design of silicone sealing ring is used between the outer door and the cabinet to ensure the vacuum level of the box. The door of the machine can be easily opened in a non-vacuum environment.
- The temperature control system adopts microcomputer PID design, which has the functions of temperature control, timing and over-temperature alarm.
- The studio is rectangular in structure with a large effective area.
- The unique design of the glass door not only ensures the tightness, but also allows the objects in the studio to be observed through the glass window.
- With microcomputer PID design, have function of temperature control, timing and over-temperature alarm.
- The outer shell is designed with galvanized sheet, the surface is mirror sprayed, the inner tank is made of stainless steel, and the inner tank is surrounded by arc transitions for easy cleaning.
- The door is adjustable, silicone door seal, ensure high vacuum inside the box.
Applications
Where it is used
- It is widely used in industries such as biochemistry, pharmaceuticals, chemicals, food, electronics, new materials, research institutes, and quality control laboratories.
