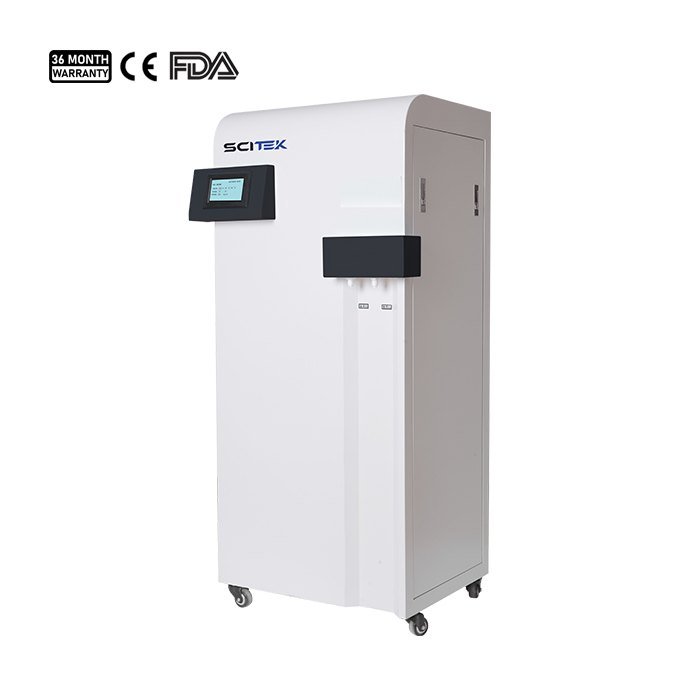

Ultra Water Purifier
- Models
- WP-U40M; WP-U60M; WP-U80M; WP-U100M; WP-U40MI; WP-U60MI; WP-U80MI; WP-U100MI
- Water Output(L/H)
- 40
- Product Water Quality
- First grade water
- RO Grade
- Single-stage reverse osmosis
- Conductivity
- ≤0.067μS/cm
The ultra water purifier utilizes a unique membrane treatment technology and pre-treatment system to ensure long-term stable operation.
Added to your inquiry list. It travels with your next quote request.
8 models
Product Description
Ultra Water Purifier specification across the range. Figures are the manufacturer’s published values.
| Model | WP-U40M | WP-U60M | WP-U80M | WP-U100M | WP-U40MI | WP-U60MI | WP-U80MI | WP-U100MI |
|---|---|---|---|---|---|---|---|---|
| Water Output(L/H) | 40 | 60 | 80 | 100 | 40 | 60 | 80 | 100 |
| Product Water Quality | First grade water | First grade water | First grade water | First grade water | First grade water | First grade water | First grade water | First grade water |
| Feed Water Requirements | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ | Inlet water: Municipal tap water Source water pressure: 0.15Mpa—0.5Mpa Inlet water temperature: 5-40℃ |
| RO Grade | Single-stage reverse osmosis | Single-stage reverse osmosis | Single-stage reverse osmosis | Single-stage reverse osmosis | Double-stage reverse osmosis | Double-stage reverse osmosis | Double-stage reverse osmosis | Double-stage reverse osmosis |
| Conductivity | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm | ≤0.067μS/cm |
| Resistivity | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm | ≥15MΩ.cm |
| TOC Content | ≤10ppb | ≤10ppb | ≤10ppb | ≤10ppb | ≤10ppb | ≤10ppb | ≤10ppb | ≤10ppb |
| Particulate Matter (0.22μm) | ≤1/ml | ≤1/ml | ≤1/ml | ≤1/ml | ≤1/ml | ≤1/ml | ≤1/ml | ≤1/ml |
| Bacteria (CFU/ml) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
| Intake Flow Rate | 1~2L/min | 1~2L/min | 1~2L/min | 1~2L/min | 1~2L/min | 1~2L/min | 1~2L/min | 1~2L/min |
| Metal Cation | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb | Fe, Al, Cr, Ni, Cu<0.005ppb; Zn, K<0.02ppb, Na<0.01ppb |
| Anion | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb | Cl - , SO 4 2- <0.01ppb; NO 2- , NO 3- <0.02ppb |
| Soluble Silicon (SiO 2 ) | <0.01mg/L | <0.01mg/L | <0.01mg/L | <0.01mg/L | <0.01mg/L | <0.01mg/L | <0.01mg/L | <0.01mg/L |
| Absorbance (254 nm.1cm optical path) | <0.001 | <0.001 | <0.001 | <0.001 | <0.001 | <0.001 | <0.001 | <0.001 |
| External Size (WxDxH)(mm) | 600x540x1350 | 600x540x1350 | 600x540x1350 | 600x540x1350 | 600x540x1350 | 600x540x1350 | 600x540x1350 | 600x540x1350 |
| Net Weight | 100KG | 100KG | 100KG | 100KG | 100KG | 100KG | 100KG | 100KG |
| Shipping Size(WxDxH)(mm) | 720x630x1560 | 720x630x1560 | 720x630x1560 | 720x630x1560 | 720x630x1560 | 720x630x1560 | 720x630x1560 | 720x630x1560 |
| Gross Weight | 120KG | 120KG | 120KG | 120KG | 120KG | 120KG | 120KG | 120KG |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- The unique membrane treatment technology and accessories can be adapted to different municipal tap water.
- The unique source water cleaning pretreatment system can prolong the service life of consumables and ensure the normal operation of the instrument for a long time.
- The reverse osmosis system has automatic, manual and regular flushing functions, which can effectively protect and prolong the service life of RO membrane.
- The multi-functional FLOM control system has the functions of no water, consumables failure, consumables expiration, water leakage, water full alarm prompt function, automatic fault detection function, water quality parameter setting exceeding alarm function, and storage function of various operating data, and The customer password protection function ensures the security of operating data.
- The unique three-pump design and the fully enclosed pipeline design automatically circulate regularly during the non-intake period to keep the water quality stable.
- The large LCD screen can visually display various operating parameters, including the water quality and temperature of the three-way water inlet, RO water, and UP water.
- Pure water and ultra-pure water can be produced at the same time, automatic continuous water production, and adjustable operating parameters.
- The water production system and the circuit system are completely separated, completely eliminating potential safety hazards.
