Home/Products/Scitek Global/Titrator
Weighing & measurement
Titrator
- Models
- TI-96A; TI-96PA
- Titration Module
- Potentiometric
- mV Measuring Range
- -2000.0mV~+2000.0mV
- mV Measuring
- Resolution: 0.1mV, Accuracy: 0.1mV±0.03%
- pH Measuring Range
- -20.000pH~+20.000pH
The automatic titrator allows you to start a titration and then leave the titrator to perform other tasks or tests.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Titrator specification across the range. Figures are the manufacturer’s published values.
| Model | TI-96A | TI-96PA |
|---|---|---|
| Titration Module | Potentiometric | Potentiometric, Dead-stop |
| mV Measuring Range | -2000.0mV~+2000.0mV | |
| mV Measuring | Resolution: 0.1mV, Accuracy: 0.1mV±0.03% | |
| pH Measuring Range | -20.000pH~+20.000pH | |
| pH Measuring | Resolution: 0.001pH, Accuracy: 0.003pH | |
| Temp. Measuring Range | -5~120℃ | |
| Temp. Accuracy | ±0.1℃ | |
| Maximum Number of Titration Modules | 4 (2 modules in the standard package) | |
| Maximum Number of Simultaneous Filling Modules | 4 (2 modules in the standard package) | |
| Burettes Type | Inbuilt Burette | |
| Burette Optional | 1mL 5mL 10mL 25mL (10ml Burette in the Standard Package ) | |
| Simultaneous Working Burette | 2 | |
| Burette Resolution | 1/1500000 | |
| Burette Refill Time | 16 Seconds (100% Filling Speed) | |
| User Grading Management System | Customizable Operation Permissions | |
| Audit Trail | Optional | Standard |
| Controlled by | PC | |
| Communication Ports | 2*USB, RS232, Internet | |
| WiFi Module | Optional | Standard |
| Stirring | Magnetic Stirring, Mechanical Stirring (Optional) | |
| Electrode Interface Type | mV/pH Measuring Electrode Interface Reference electrode interface | mV/pH Measuring Electrode Interface Reference Electrode Interface |
| PT1000 Temperature Electrode Interface | PT1000 Temperature Electrode Interface Polarized Electrode Interface | |

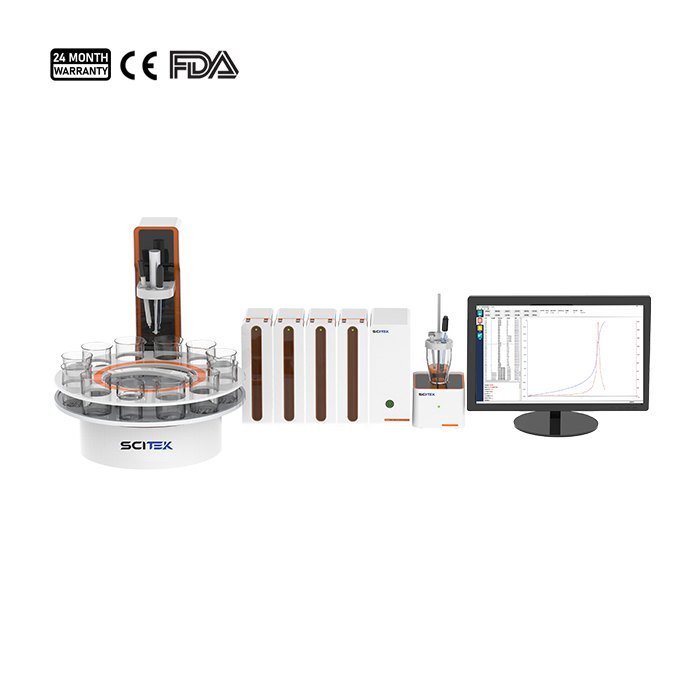

| Autosampler (Optional) | Equipped with 1 Independent Analysis Station, Optional 16-position 100mL Autosampler, 12-position 250mL Autosampler, and 18-position 50mL Autosampler | |
| Packages Size (WxDxH)(mm) | 415x345x370 | |
| Gross Weight (kg) | 14kg | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Multi-channel modular combination, which can combine multiple dosing units; supports 4 dosing units to work at the same time, free combination, no need to install and disassemble parts, and each module can be simply side-by-side to form an instrument system
- 4 types of standard burettes for adding liquid can be selected arbitrarily, and the experimental application is more targeted; standard 10mL, optional 1mL, 5mL, 25mL
- Built-in dosing unit, multiple guarantees against the danger of reagent spillage; minimize the risk of operators
- Multiple self-check functions, simplify the operation process and avoid misoperation
- With the application editing function, the user can generate a special titration mode according to the experiment and store it, and the next one-click retrieval
- With the audit trail function, the effective operation of the instrument will be recorded in the background and cannot be deleted
- Have user hierarchical authority management, and can check the specific use authority when creating an account
- With the function of password aging, each account can set the validity period of the password. After the expiration, it is mandatory to change the password before logging in to the instrument
Applications
Where it is used
- TI-96A/TI-96PA automatic titrator can be used in food, drug inspection, disease control, inspection, commodity inspection, water treatment, petroleum, chemical, marine, electric power, environmental protection, new energy, teaching, scientific research and other fields.
