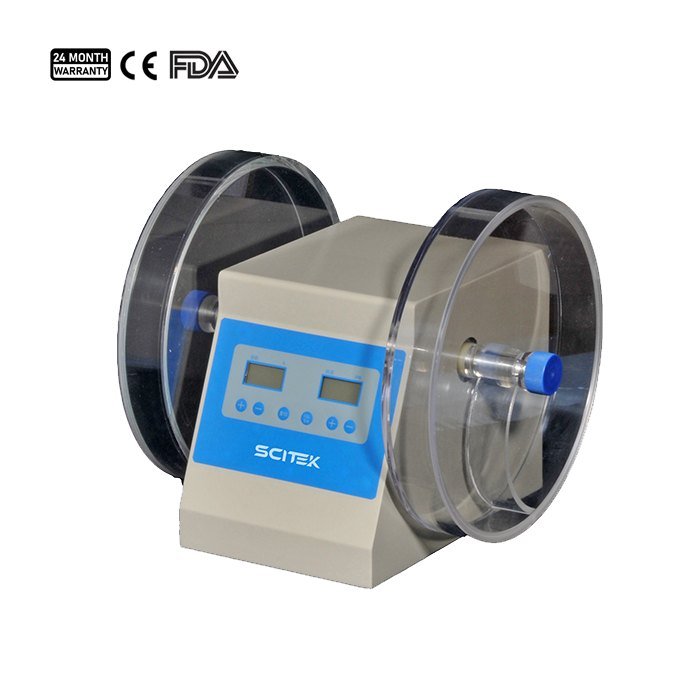

Tablet Friability Tester
- Models
- TFT-I; TFT-II; TFT-III; TFT-IV
- Number of Cylinder
- 2
- Rotating Speed
- 20～100 rpm can be set arbitrarily
- Rotating Accuracy
- ±1 rpm
- Counting Mode
- 5 turns～900 turns can be set arbitrarily; countdown is adopted
Tablet friability tester stands out with its dual cylinder configuration, adjustable speed, high rotational accuracy, versatile counting modes and clear cylinder specifications.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Tablet Friability Tester specification across the range. Figures are the manufacturer’s published values.
| Model | TFT-I | TFT-II | TFT-III | TFT-IV |
|---|---|---|---|---|
| Number of Cylinder | 2 | 1 | ||
| Rotating Speed | 20～100 rpm can be set arbitrarily | 25 rpm | ||
| Rotating Accuracy | ±1 rpm | |||
| Counting Mode | 5 turns～900 turns can be set arbitrarily; countdown is adopted | 100 turns, the countdown is adopted | 5 turns～900 turns can be set arbitrarily; countdown is adopted. | 5~900 turns |
| Inner Diameter of Cylinder | 286mm | |||
| Cylinder Depth | 39mm | |||
| Sliding Height | 156mm | |||
| Power Supply | AC220/110V, 50/60Hz | |||
| Total Power | 40W | 20W | 20W | 50W |
| Size(W×D×H)(mm) | 370x300x340 | 370x300x340 | 370x300x340 | 300x200x340 |
| Shipping Size (W×D×H)(mm) | 460x420x550 | 460x420x550 | 460x420x550 | 430x310x450 |
| N.W./G.W. (kg) | 12/20 | 12/20 | 12/20 | 8/12 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Tablet friability tester is used to accurately and reliably test the physical properties of tablets for friability and abrasion resistance during production, packaging and storage.
- The TFT-IV is a single-circuit, single-cylinder tester that operates independently and stops automatically.
- TFT-I, TFT-II, TFT-III are equipped with two cylinders, running synchronously and stopping automatically, providing higher testing efficiency.
- Users can arbitrarily set the optimum speed according to specific test requirements, ensuring accurate and comprehensive fragility assessment and providing a wide range of experiment options.
- A countdown timer further enhances the convenience of test parameter selection, allowing customized test protocols to meet specific analytical needs.
- The barrel is made of high-quality, colorless, transparent plexiglas for clear visibility and long service life.
- Instrument LCD supports split-time display of preset and real-time values.
- Intelligent control of two performance parameters, cylinder speed and number of revolutions, ensures accurate and efficient assessment of tablet friability.
