Spectrophotometer and Colorimeter

Models: NP-5600FL; NP-5800FL; NP-5900FL
Display: 8" touch screen
Light Source: Longevity lifeline xenon flashing light (10⁹ times)
Volume Requirement: Ultra trace: 0.3–2 μL
Wavelength Range: 185–930 nm (Ultra Trace and Cuvette)

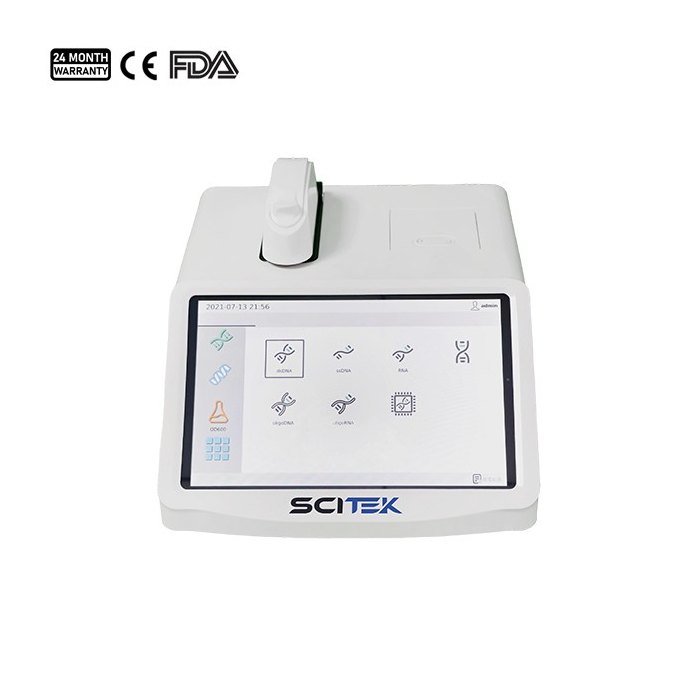

Nano Prime UV-FL Series Microvolume UV-Vis Spectrophotometer and Fluorometer—A Precise and Intelligent Analysis Platform

Quantity

3 models

Product Description

Spectrophotometer and Colorimeter specification across the range. Figures are the manufacturer’s published values.

Spectrophotometer and Colorimeter specification by model, as published by Scitek Global
Model		NP-5600FL	NP-5800FL	NP-5900FL
Display		8" touch screen	10.1" touch screen
Light Source		Longevity lifeline xenon flashing light (10⁹ times)
Volume Requirement		Ultra trace: 0.3–2 μL
Wavelength Range		185–930 nm (Ultra Trace and Cuvette)
Detector		3864 Element Linear Silicon CCD Array	2048-element CMOS Linear Image Sensor
Ultra Trace Optical Path		1, 0.2, 0.1, 0.03, 0.02 mm (Both Automatic and Adjustable)	1, 0.4, 0.1, 0.04, 0.02 mm (Both Automatic and Adjustable)	1, 0.4, 0.1, 0.04, 0.01 mm (Both Automatic and Adjustable)
Cuvette Optical Path		Adjustable: 10, 5, 2, 1 mm
Concentration Measurement Range		2–40000 ng/µL (dsDNA), 0.06–1194 mg/mL (BSA)	2–45000 ng/µL (dsDNA), 0.06–1343 mg/mL (BSA)
Wavelength Accuracy and Absorbance Accuracy		±1 nm, 0.002 Abs
Detection Time		Less than 3 seconds
Spectral Resolution (Bandwidth)		2 nm (FWHM at Hg 546 nm)
Detection Repeatability		0.002 A (1 mm optical path) or 1% CV
Pollutant Identification Function		No	Yes	Yes
Fluorescent Module	Light Source	Blue LED light, Red LED light (Standard); UV LED light, Green LED (Optional);		Longevity lifeline xenon flashing light (10⁹ times)
	Detector	Photodiode
	Linear	R² ≥0.995
	Sample Tube	0.5 mL PCR Tube (1 Sample position)
	Sample Volume	≥1μL (Signal intensity dependent)
	Measurement Speed	3s/Tube
	Built-in Reagent Calculator	Yes, calculates required dyes and buffers
	Fluorometer Mode	Yes
	Ion Sphere Mode	Yes
	Standard Curve Module	Yes, flexibly choose Ex/Em light sources
	Fluorescence Kinetics Module	Yes, up to 5 stages of delay/interval/test
Optional Function	Cuvette Stirring Function	●	●	●
	Print Function	●	●	●
	Liquid Column Monitoring Function	×	●	●
	Audit Tracking Function	×	●	●
Supported Language		Chinese, English, French, German, Arabic, Spanish, Russian, Japanese, and Korean (Language can be customized)
Interface		2 USB-A ports, 1 Type-C port, 1 HDMI port, and 1 Ethernet port
Data Management		Supports USB flash drive data output, Bluetooth, and Wi-Fi connectivity
Power Supply		AC 100–240V, 50/60Hz
External Size (W×D×H)		200×300×200 mm
Shipping Size (W×D×H)		360×290×330 mm
N.W/G.W.		3.5/4.5 kg

Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.

Key features

What the range offers

Comprehensive Application Module Coverage:
Nucleic Acid Analysis: dsDNA, ssDNA, RNA, Oligos, and gene chips
Protein Quantification: Protein assay & purity analysis (260/280 ratio). BCA, Bradford, Lowry, and Pierce 660.
Integrated Reagent Calculator (Fluorescence Mode): Automatically calculates dye and buffer dosages, compatible with various reagent kits and experimental protocols.
Quantification and Analysis: UV and fluorescence channels both feature powerful kinetic capabilities, supporting up to five customizable detection stages and multiple fitting methods to meet diverse quantitative needs.
Extended Applications: Colloidal gold analysis, microarray application, OD600 Cell fluid module.
Full Spectrum Scanning
Detailed spectral scanning
