Pulse Vacuum Autoclave
- Models
- ST-V50PV; ST-V80PV; ST-V100PV; ST-V120PV; ST-V150PV
- Capacity
- 50L
- External Size (W×D×H)(mm)
- 580×636×990
- Chamber Size (Ø×H)(mm)
- Ø316×667
- Chamber Material
- SUS304

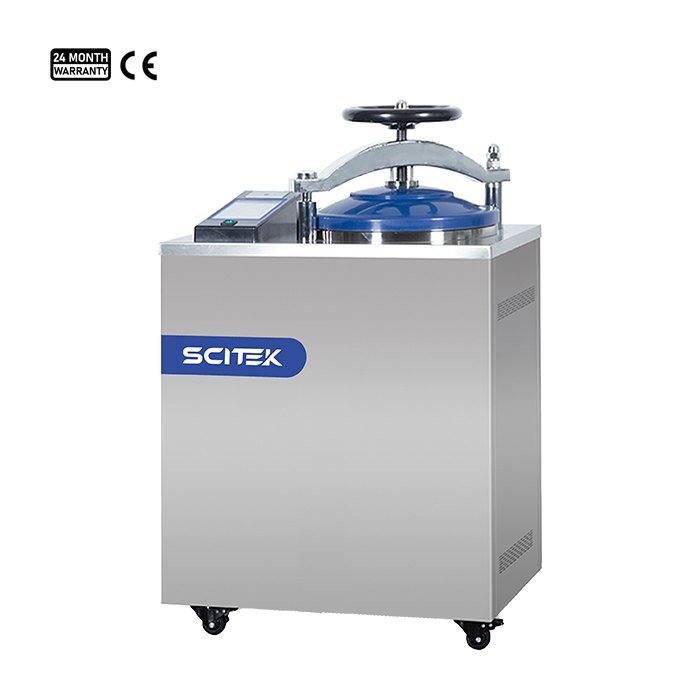

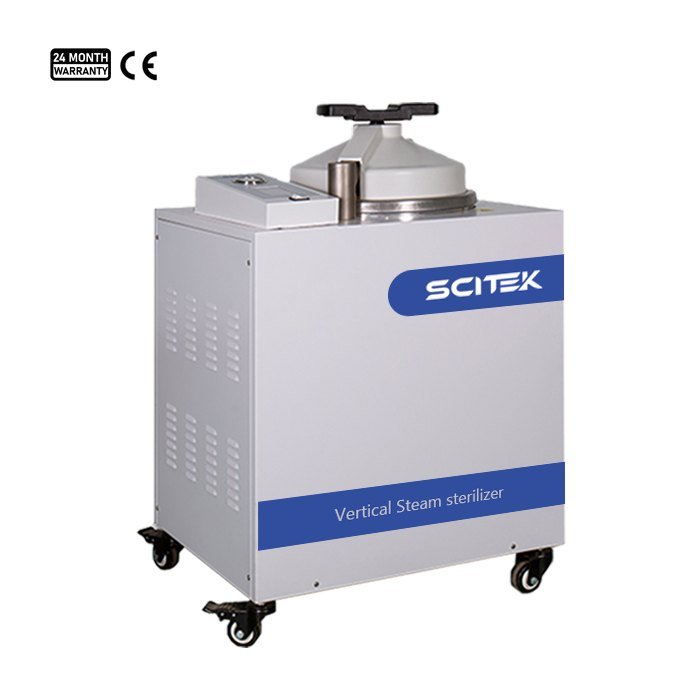

This vertical pulse vacuum autoclave is capable of completing the sterilisation process in a shorter period of time and also features multiple safety protections, such as over-temperature pr…
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Pulse Vacuum Autoclave specification across the range. Figures are the manufacturer’s published values.
| Model | ST-V50PV | ST-V80PV | ST-V100PV | ST-V120PV | ST-V150PV |
|---|---|---|---|---|---|
| Capacity | 50L | 80L | 100L | 120L | 150L |
| External Size (W×D×H)(mm) | 580×636×990 | 636×710×1030 | 630×710×1295 | 700×780×1190 | 780×850×1180 |
| Chamber Size (Ø×H)(mm) | Ø316×667 | Ø386×695 | Ø386×860 | Ø450×760 | Ø500×780 |
| Chamber Material | SUS304 | ||||
| Sterilization Temperature | 105~136 ℃ | ||||
| Designed Temperature | 150℃ | ||||
| Max. Working Temperature | 136 ℃ | ||||
| Dissolution Temperature | 40~100℃ | ||||
| Warming Temperature | 40~60℃ | ||||
| Temp.Accuracy | 0.1℃ | ||||
| Temp. Uniformity | ≤±0.5℃ | ||||
| Designed Pressure | 0.3Mpa | ||||
| Max.Sterilization Pressure | 0.23Mpa | ||||
| Ultimate Vacuum | -0.096MPa | ||||
| Pressure Resoluiton | 0.1KPa | ||||
| Sterilization Time Range | 0~99min | ||||
| Temp. Controller | PID control by microprocessor | ||||
| Display | LCD touch screen | ||||
| Drying Function | YES | ||||
| Drying Time | 15min | ||||
| Sterilization Program | ●Medical instrument program ●Luminal instruments ●Dressings/Fabric program ●Rubber program ●Liquid program ●BD Test program ●Vacuum Test progrm Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test. | ||||
| Water Injection Method | Built-in water tank | Automatic water feeding | |||
| Power Consumption | 3 kW | 4.5 kW | 5.4 kW | 7.2 kW | 9.3 kW |
| Power Supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 380V 50Hz | 380V 50Hz |
| Standard SS Basket | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
| Net Weight | 85kg | 95kg | 112kg | 180kg | 210kg |
| Gross Weight | 122kg | 130kg | 152kg | 220kg | 250kg |
| Shipping Size (WD×H)(mm) | 84 0×770×1170 | 880×910×1300 | 880×910×1550 | 1030×1050×1300 | 1030×1050×1450 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.
- Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.
- Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.
- Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
- Automatic operation from sterilization to drying (Pre-vacuum sequence, heating, sterilization, steam discharge and post-vacuum drying) can be easily set and monitored by the LCD touch screen
- Built-in vacuum pump provides 3-time pulsed vacuum process,extracting the air out of the medical dressing and the Class A hollow medical instrument efficiently.
- Built-in steam generator prevents the media from contamination.
- Post-vacuum drying function offers efficient drying results.
