Home/Products/Scitek Global/PCR Cabinet
Safety & containment
PCR Cabinet
- Models
- PCR-800
- External Size (WxDxH)(mm)
- 710 x 680 x 1050 (Without Base Stand) 710 x 680 x 1680 ( With Base Stand)
- Internal Size (WxDxH)(mm)
- 610x590x625
- Work Surface Height
- 750mm
- Control System
- Display

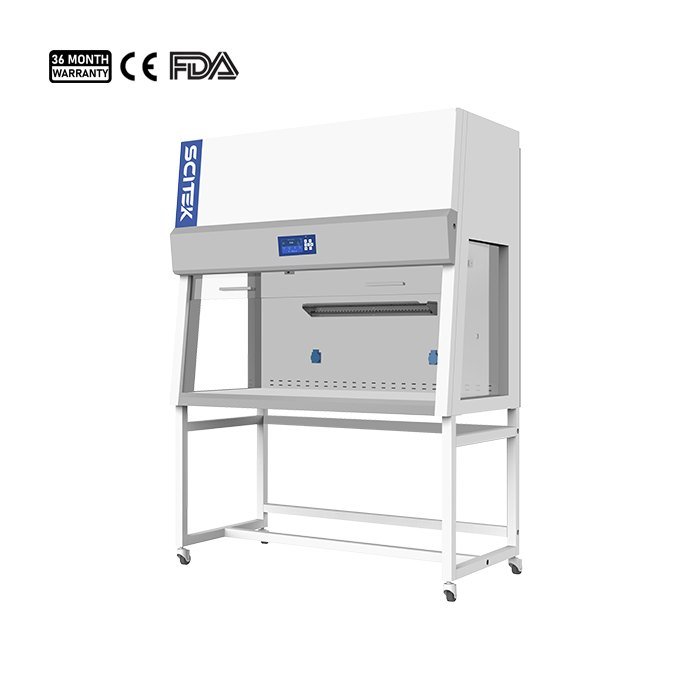

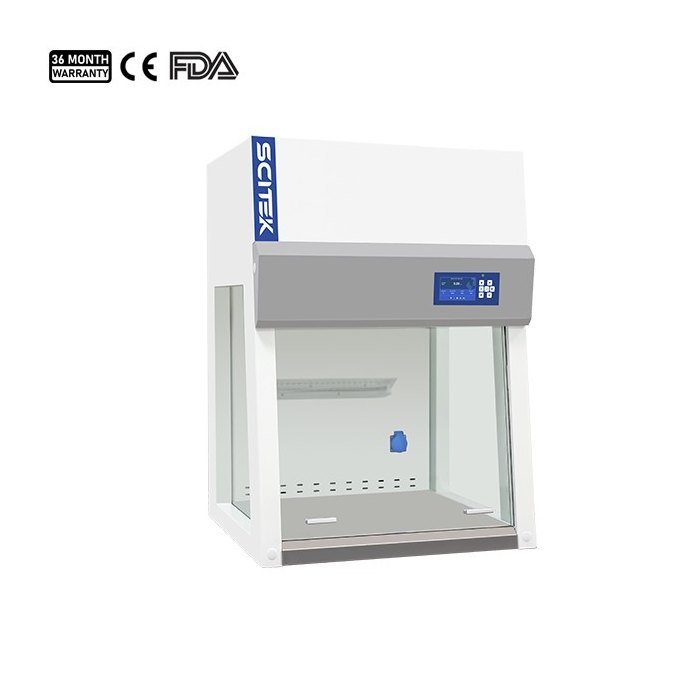

PCR Cabinet to minimize the risk of sample contamination while performing PCR experiments.
Added to your inquiry list. It travels with your next quote request.
1 models
Product Description
PCR Cabinet specification across the range. Figures are the manufacturer’s published values.
| Model | PCR-800 | |
|---|---|---|
| External Size (WxDxH)(mm) | 710 x 680 x 1050 (Without Base Stand) 710 x 680 x 1680 ( With Base Stand) | |
| Internal Size (WxDxH)(mm) | 610x590x625 | |
| Work Surface Height | 750mm | |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp | |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
| Airflow System | Airflow Velocity | 0.2~0.5m/s, Speed adjustable |
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable |
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |
| Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass | |
| Electrical System | UV Lamp | 10W×2 |
| With timing function from 0 to 999 minutes Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | ||
| LED Lamp | 8W×2 | |
| Consumption | 149W (Not include socket loading power consumption) | |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | |
| Illumination | ≥500Lux | |
| Sound Emission | ≤62dB(A) | |
| Standard Accessory | 1. LED Lamp; 2. UV Lamp; 3. Waterproof Socket×1; 4. Shelves with IV Bar; 5. Air Velocity Sensor. | |
| Optional Accessory | 1. Base stand; 2. Gas Tap | |
| Net Weight | 80kg (Without base stand), 130kg (With base stand) | |
| Gross Weight | 115kg (Without base stand), 165kg (With base stand) | |
| Shipping Size (W×D×H)(mm) | 920x855x1190 | |
| Shipping Volume | 0.94m³ | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Front sliding sash interlock with fan and UV lamp.
- Front sash and side windows are made of UV-resistant tempered glass.
- The host and sockets have independent capacitors to prevent current overload.
- Standard shelves with IV bar.
- Memory function in case of power-failure.
- HEPA filter and UV life indicators facilitate a timely replacem ent plan.
- Easy-to-change pre-filter installed could extend the HEPA filter’s life time.
- Equipped with temperature sensor to show the real temperature during operation.
