Home/Products/Scitek Global/Mould Incubator
Heating, cooling & storage

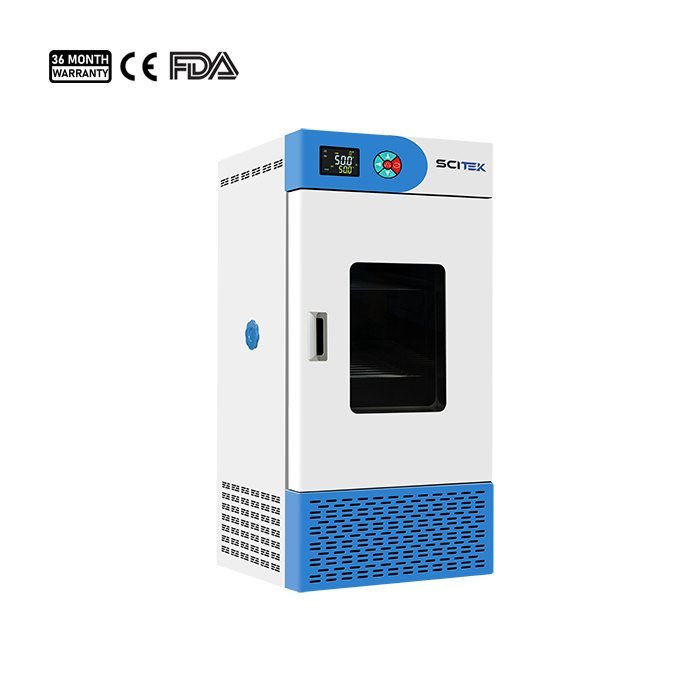

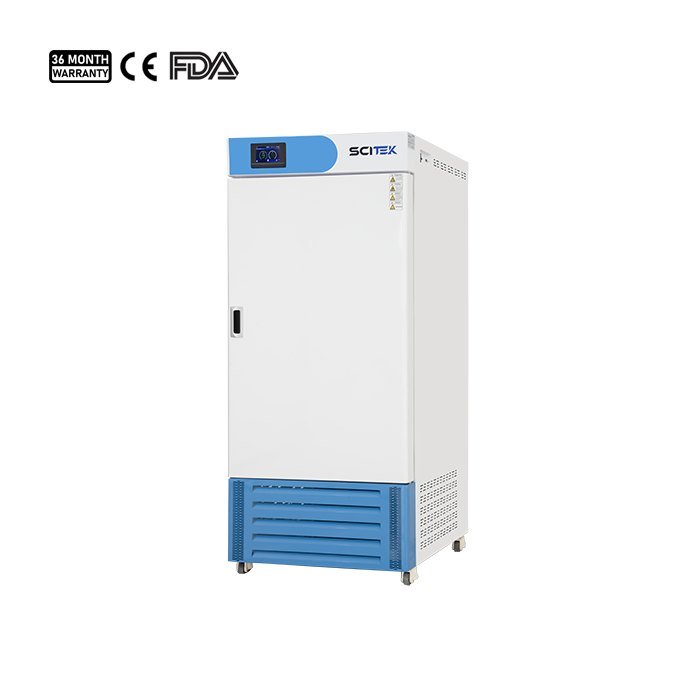

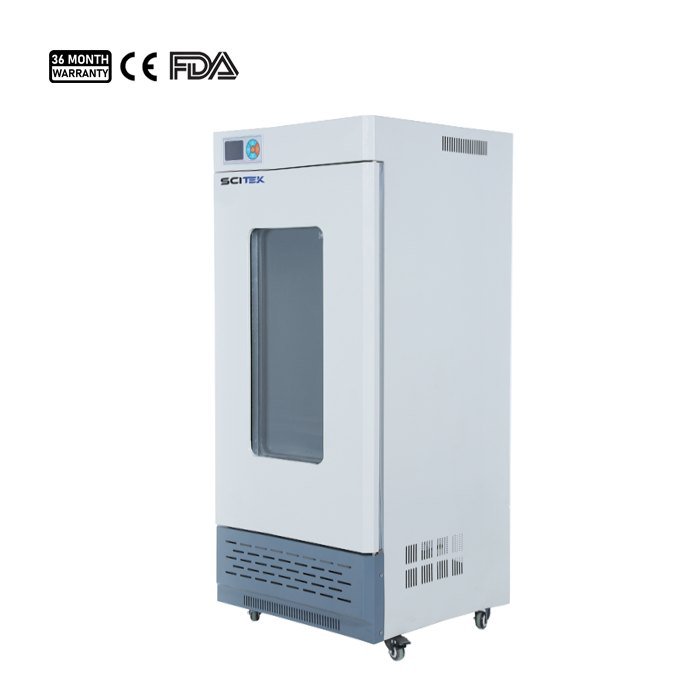

Mould Incubator
- Models
- ICB-80MP; ICB-150MP; ICB-250MP; ICB-350MP; ICB-460MP
- Capacity(L)
- 80
- Circulation Mode
- Forced convection
- Size(WxDxH)(mm)
- Internal
- External
- 625x550x1065
The mould incubator precisely controls humidity and temperature for accurate microbial growth.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Mould Incubator specification across the range. Figures are the manufacturer’s published values.
| Model | ICB-80MP | ICB-150MP | ICB-250MP | ICB-350MP | ICB-460MP | |
|---|---|---|---|---|---|---|
| Capacity(L) | 80 | 150 | 250 | 350 | 460 | |
| Circulation Mode | Forced convection | |||||
| Size(WxDxH)(mm) | Internal | 400x400x500 | 400x500x750 | 500x550x910 | 600x600x1000 | 650x650x1100 |
| External | 625x550x1065 | 600x660x1360 | 720x710x157 | 800x760x1610 | 850x810x1715 | |
| Temperature | Range (℃) | 0 ~ 65 | ||||
| Fluctuation (℃) | High Temp.: ±0.5°C; Low Temp.:±1°C | |||||
| Resolution (℃) | 0.1 | |||||
| Uniformity (℃) | ±1 | |||||
| Sensor | PT100 | |||||
| Controller | PID controller | |||||
| Display | Large high definition LCD | |||||
| Timer | 0-99h59min/99*5Segments (with timing waiting function) | |||||
| Material | Internal | 304 stainless steel | ||||
| External | Cold rolled steel electrostaticspraying exterior | |||||
| Lighting System | UV germicidal lamp | |||||
| Test Hole | Standard Φ43mm test hole on the left side | |||||
| External Socket | Universal socket(one) | |||||
| Refrigerant | R134a (CFC free) | |||||
| Defrost Mode | Automatic | |||||
| Safety Device | Over temperature | |||||
| Voltage /Frequency | AC 220/110V, 50/60Hz | |||||
| Consumption (W) | 600 | 800 | 1000 | 1200 | 1400 | |
| Shelves | 2 | |||||
| G.W. (kg) | 61 | 88 | 112 | 139 | 168 | |
| Shipping Size (WxDxH)(mm) | 690x620x1150 | 770x735x1520 | 820x800x1660 | 870x860x1800 | 990x1040x1970 | |
| Standard | USB port for storing and exporting data | |||||
| Optional | RS485 interface, printer and spare shelf | |||||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 304 Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
- The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
- Large touch screen, 99×5-segment program control, with temperature curve, data storage function.
- High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
- Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
- Double-layer door structure, the inner door uses tempered glass for easy observation of samples, and the outer door uses magnetic strips for good sealing and heat preservation performance.
- A UV sterilizer lamp is installed in the chamber.
- Observation window for easy viewing of chamber contents.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
