Home/Products/Scitek Global/Medicine Stability Testing Chamber
Heating, cooling & storage

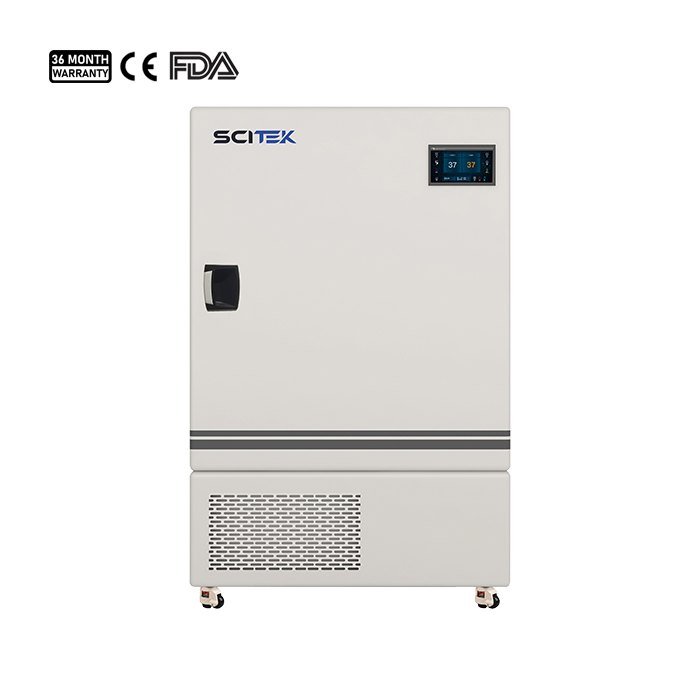

Medicine Stability Testing Chamber
- Models
- BSTC-250; BSTC-460; BSTC-760; BSTC-860; BSTC-1000
- Chamber Capaticy
- 250L
- Display
- 7-inch LCD touch screen
- Control Mode
- Intelligent Fuzzy PID Control, Normal/Program Operation
- Convection Method
- Forced convection
Battery stability test chamber is used for battery performance testing to ensure that the battery undergoes constant current and constant voltage charge/discharge processes.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Medicine Stability Testing Chamber specification across the range. Figures are the manufacturer’s published values.
| Model | BSTC-250 | BSTC-460 | BSTC-760 | BSTC-860 | BSTC-1000 |
|---|---|---|---|---|---|
| Chamber Capaticy | 250L | 460L | 760L | 860L | 1000L |
| Display | 7-inch LCD touch screen | ||||
| Control Mode | Intelligent Fuzzy PID Control, Normal/Program Operation | ||||
| Convection Method | Forced convection | ||||
| Working Conditions | 5 ℃~35 ℃ (it is recommended to use an ambient temperature of 25~28 ℃) | ||||
| Temperature Control Range | -10℃~+85℃ | ||||
| Temperature Resolution | 0.1℃ | ||||
| Temperature Control Accuracy | ±0.1℃ | ||||
| Temperature Deviation(15~45℃) | ±0.2~0.6℃ | ||||
| Insulation Material | Polyurethane integral foaming | ||||
| Program Control | Programmable intelligence, program operation mode, and regular operation mode | ||||
| Defrost Function | Automatic defrost or intermittent defrost | ||||
| Test Hole | Φ 50, 75, 100 (choose one) | ||||
| Refrigeration Method | Environmentally friendly variable frequency compression refrigeration technology | ||||
| Temperature Sensor | German HERAEUS PT100 temperature sensor | ||||
| Safety Setting | automatic start, automatic stop, Power resumption, scheduled operation, with compressor overpressure protection, overtemperature alarm, leakage protection, door open alarm, and sensor malfunction alarm functions. | ||||
| Shelves | Three (Standard) | ||||
| Optional Accessories | Printer, Computer monitoring software, Remote control alarm system | ||||
| Power Supply | AC220V, 50/60Hz | ||||
| Consumption | 1100W | 1200W | 2000W | 2000W | 2000W |
| Chamber Size (W×D×H)(mm) | 670x410x912 | 750x560x1105 | 1180x500x1300 | 1200x450x1600 | 1200x720x1180 |
| External Size (W×D×H)(mm) | 850x797x1510 | 933x960x1765 | 1490x887x1790 | 1390x937x1840 | 1390x1120x1840 |
| Shipping Size (W×D×H)(mm) | 945x920x1700 | 1060x1015x2000 | 1620x1060x2000 | 1500x1160x2070 | 1620x1180x2000 |
| N.W./G.W. (kg) | 160/185 | 210/235 | 295/330 | 310/345 | 355/390 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Electronic PID control, intelligent operating system, high-performance processor
- Utilizes a full-color LCD touch screen
- Data recording and storage function; capable of storing test data for over 10 years; original data exportable via USB drive
- Temperature data can be viewed through curve display
- Features event recording, permission management, multi-point temperature correction, and variable frequency refrigeration system
- Equipped with Danfoss (SECOP) compressor and German EBM condensing fan, environmentally friendly refrigerant
- Capacitive temperature sensor
- Box insulation material using integrated polyurethane foam technology
