Home/Products/Scitek Global/Insoluble Particle Counter
Particle & environment

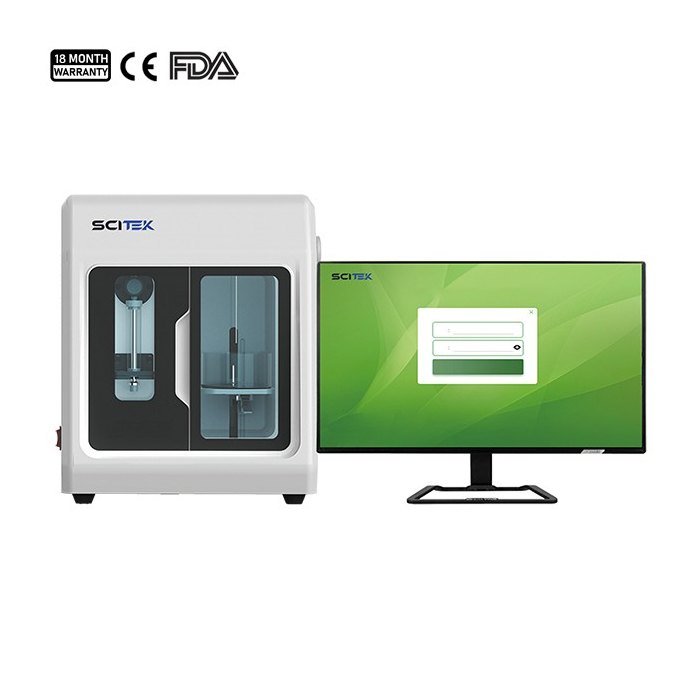

Insoluble Particle Counter
- Models
- IPC-8AS
- Optical System
- Laser light obscuration method
- Test Range
- 1-700 μm
- Detection Channel
- 8 channels
- Channel Setting
- ≥ 2 µm, ≥ 5 µm, ≥ 8 µm, ≥ 10 µm, ≥ 12 µm, ≥ 20 µm, ≥ 25 µm, ≥ 50 µm
The IPC-8AS insoluble particle counter enables direct detection of the content and size of insoluble particles in injections, sterile powders, infusion sets, and pharmaceutical packaging mat…
Added to your inquiry list. It travels with your next quote request.
1 models
Product Description
Insoluble Particle Counter specification across the range. Figures are the manufacturer’s published values.
| Model | IPC-8AS |
|---|---|
| Optical System | Laser light obscuration method |
| Test Range | 1-700 μm |
| Detection Channel | 8 channels |
| Channel Setting | ≥ 2 µm, ≥ 5 µm, ≥ 8 µm, ≥ 10 µm, ≥ 12 µm, ≥ 20 µm, ≥ 25 µm, ≥ 50 µm |
| Pharmacopoeial Standard Dedicated Channel | ≥ 10 μm, ≥ 25 μm |
| Minimum Injection Volume | 0.1 mL |
| Injection Volume | Any volume ≥ 0.1 mL |
| Counting Range | 0-9,999,999 particles |
| Detectable Particle Concentration | 0-20,000 particles/mL |
| Relative Standard Deviation (RSD) | ≤ 1.5% (for standard particles ≥ 1000 particles/mL) |
| Sampling Time | < 5 seconds (5 mL), < 3 minutes (100 mL) |
| Accuracy | Within ±4% of the specified value |
| Channel Resolution | ≥ 95% (for ≥ 10 μm channel) |
| Stirring Speed | 0-2000 rpm |
| Operating Temperature | 0-40 ℃ |
| Power Supply | AC 220 V ± 10%, 50 Hz |
| Power | ≤ 90 W |
| External Size (W×D×H) | 352×329×423 mm |
| Shipping Size (W×D×H) | 450×450×620 mm |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 1. Features unlimited automatic channel calibration: automatically calibrates channel data and resolution without the need for on-site disassembly and calibration by manufacturer engineers, enabling users to obtain accurate data anytime.
- 7. Unaffected by geographical factors, it is suitable for use in regions with different altitudes. 8. Built-in injection drug names from the Chinese Pharmacopoeia (ChP) for on-demand retrieval and printing. Users can customize and save test protocols for direct recall in subsequent use.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
