Incubator / Drying Oven (Dual use)

This dual-function design of the Drying Oven/Incubator (Dual-Use) saves money on purchase costs and has both incubation and drying functions.

Quantity

5 models

Product Description

Incubator / Drying Oven (Dual use) specification across the range. Figures are the manufacturer’s published values.

Incubator / Drying Oven (Dual use) specification by model, as published by Scitek Global
Model		DOI-30	DOI-50	DOI-70	DOI-140	DOI-240
Capacity(L)		30	50	70	140	240
Circulation		Forced convection
Size (WxDxH)	Internal(mm)	340×325×290	420×350×500	400×360×500	500×450×600	550×500×800
Size (WxDxH)	External(mm)	490×520×690	710×520×520	540×550×870	640×680×970	690×700×1140
Temperature	Range(℃)	Oven: 80-200
	Range(℃)	Incubator: RT+5-80
	Fluctuation(℃)	±0.5
	Resolution(℃)	0.1
	Uniformity(℃)	25%
	Sensor	PT100
Controller		PID
Display		LCD
Timer(min)		1 - 9999
Material	Internal	304 Stainless steel
Material	External	Electro-galvanized steel with antimicrobial powder coating
Shelves		2
Safety Device		Leakage protector/Over- temperature alarm
Electricity	Voltage/Frequency	AC 220/110 V, 50/60Hz
Electricity	Consumption(W)	550	850	1100	1500	2050
N. W./G.W.(kg)		40/47	42/45	55/75	70/85	85/110
Shipping Size (WxDxH)(mm)		680x580x870	810x640x600	670x660x1040	730x860x1080	780x920x1270
Optional		1. Independent temperature limiting controller 2. Intelligent LCD procedure temperature controller(Optional USB, RS485/232 and printer) 3. Test hole(mm): Ф25/50/80

Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.

Key features

Large-screen LCD display with menu-type operation interface, real-time parameter display, simple and convenient operation, quickly set temperature and time parameters.
A new synthetic silicone sealing strip is used for the incubator's sealing ring to prevent heat loss effectively.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
Adopts high-quality fan and large impeller fan, leads higher ventilation efficiency and better temperature uniformity.
Running function: Fixed value running, timing running, the screen displays "END" when the running time is completed, accompanied by a buzzer reminder.
Adjustable shelves with a minimum spacing of 30mm.

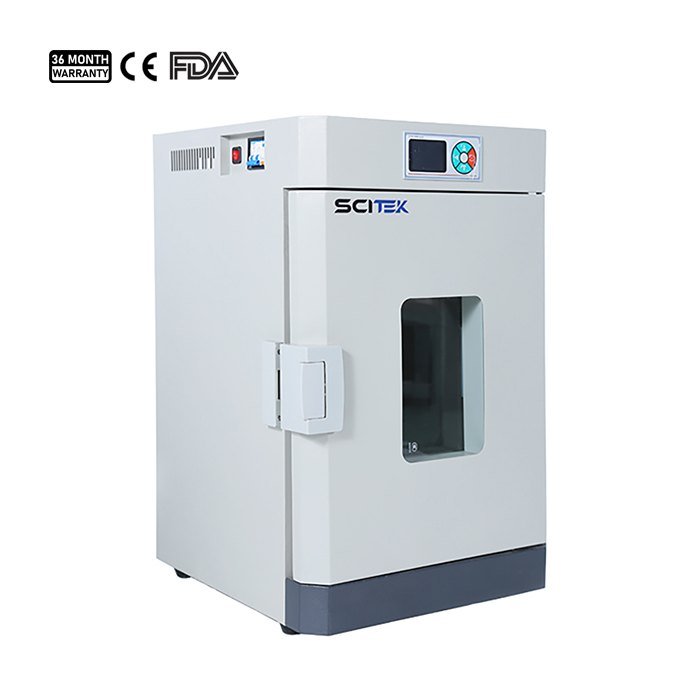

Built in observation window to make the objects in the chamber clear at a glance.
E×ternal material: cold-rolled steel plate surface sprayed with plastic;

Applications

Constant Temperature Dual-use Drying Oven/Incubator, ideal for laboratories, pharmaceuticals, food and materials science fields. Precise PID temperature control, multi-functional design saves space and costs.
