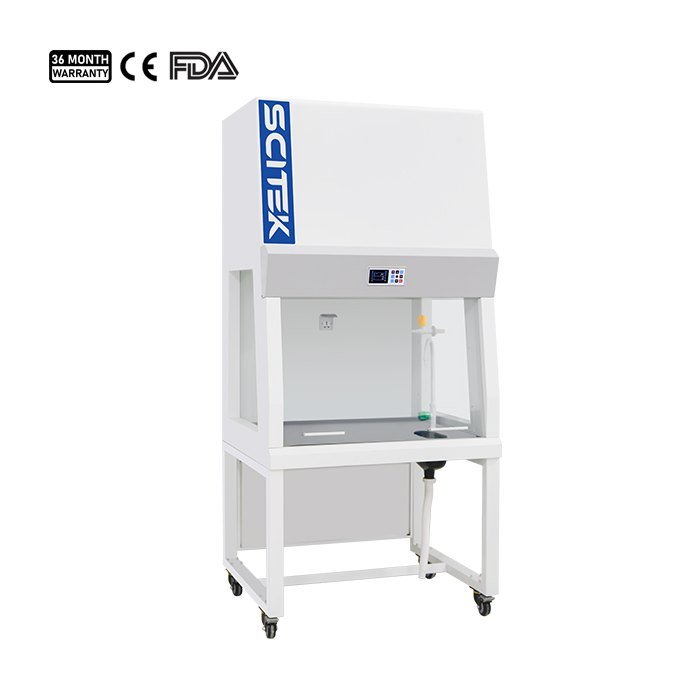

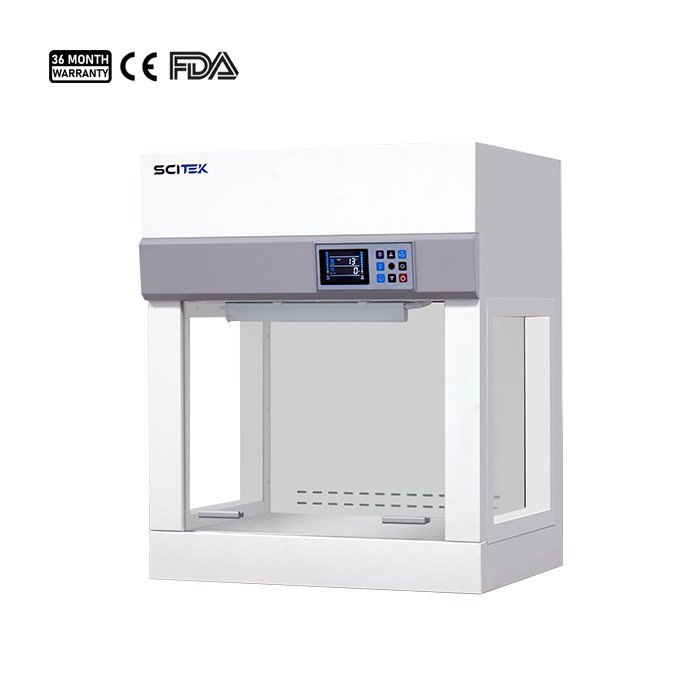

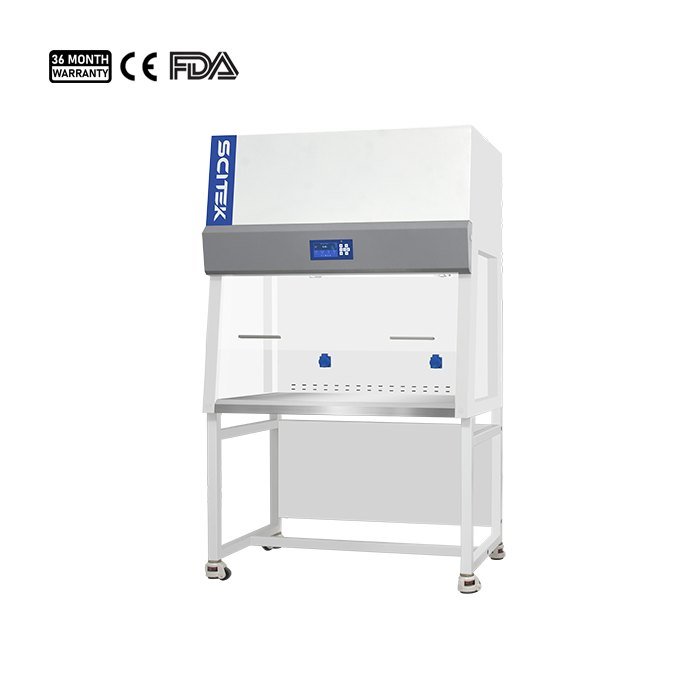

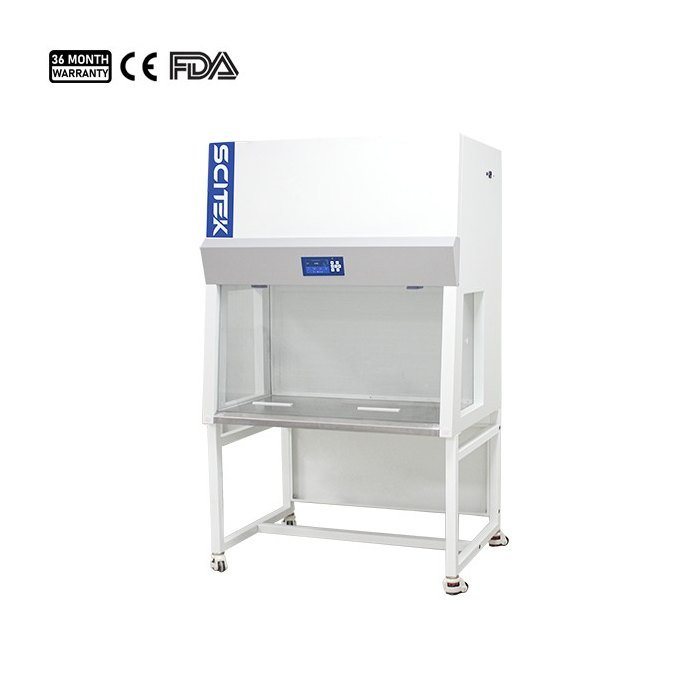

Horizontal Laminar Flow Cabinet
- Models
- LCB-H1100; LCB-H1300; LCB-H1600; LCB-H1900
- External Size (WxDxH)(mm)
- 1050x805x1950
- Internal Size (WxDxH)(mm)
- 950x490x574
- Work Surface Height
- 750mm
- Control System
- Display
CE, FDA certified laminar flow cabinets, clean bench and laminar flow hoods are ideally suited for sample protechtion experiment.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Horizontal Laminar Flow Cabinet specification across the range. Figures are the manufacturer’s published values.
| Model | LCB-H1100 | LCB-H1300 | LCB-H1600 | LCB-H1900 | |||
|---|---|---|---|---|---|---|---|
| External Size (WxDxH)(mm) | 1050x805x1950 | 1320x805x1950 | 1625x805x1950 | 1930x805x1950 | |||
| Internal Size (WxDxH)(mm) | 950x490x574 | 1220x490x574 | 1525x490x574 | 1830x490x574 | |||
| Work Surface Height | 750mm | ||||||
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function | |||||
| Interlock | Front sliding sash interlock with fan and UV lamp | ||||||
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | ||||||
| Airflow System | Airflow Velocity | 0.2~0.5 m/s, speed adjustable | |||||
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable | |||||
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | ||||||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | ||||||
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating | |||||
| Work Surface | 304 Stainless steel | ||||||
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | ||||||
| Side window | 5 mm UV resistant tempered glass | ||||||
| Electrical System | UV Lamp | 20W×2 | 30W×1 | 30W×1 | 18W×2 | ||
| With timing function from 0 to 999 minutes, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | |||||||
| LED Lamp | 6.5W×1 | 9.6W×1 | 9.6W×1 | 6.5W×2 | |||
| Consumption | 160W | 170W | 300W | 310W | |||
| Not include socket loading power consumption | |||||||
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||||
| Illumination | ≥900Lux | ||||||
| Sound Emission | ≤65dB(A) | ||||||
| Standard Accessory | 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2; 5.Air Velocity Sensor. | ||||||
| Optional Accessory | 1.Gas Tap; 2. IV Bar with Hooks | ||||||
| Gross Weight (kg) | 220 | 260 | 300 | 340 | |||
| Shipping Size (W×D×H)(mm) | 1190x1010x1425 | 1460x1010x1425 | 1765x1010x1425 | 2070x1010x1425 | |||
| Shipping Volume (m³) | 1.7 | 2.3 | 2.55 | 3 | |||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Ergonomic control panel location, centered and angled down for an easy reach & viewing.
- Brushed stainless steel work surface is for easy cleaning.
- The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.
- Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
- Front sliding sash interlock with fan and UV lamp.
- UV sterilization with UV lamp timing function.
- Front sash and side windows are made of UV-resistant tempered glass.
- The host and sockets have independent capacitors to prevent current overload.
Applications
Where it is used
- Horizontal laminar flow cabinet is equipped with advanced features and precise controls, laminar flow cabinets find a wide variety of applications in environments where aseptic and controlled workspaces are critical.
- Ideal for microbiological research laboratories, they provide aseptic conditions for microbiological cultures, culture substrate preparation and sample processing.
