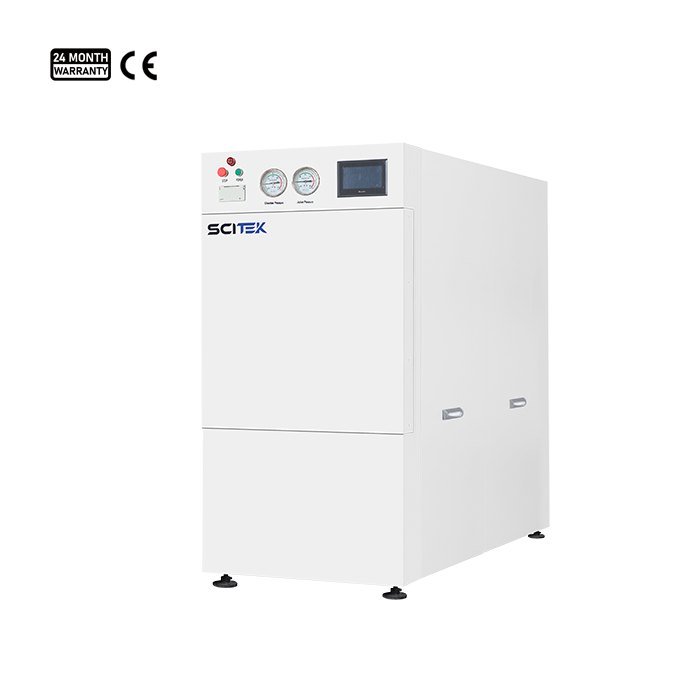

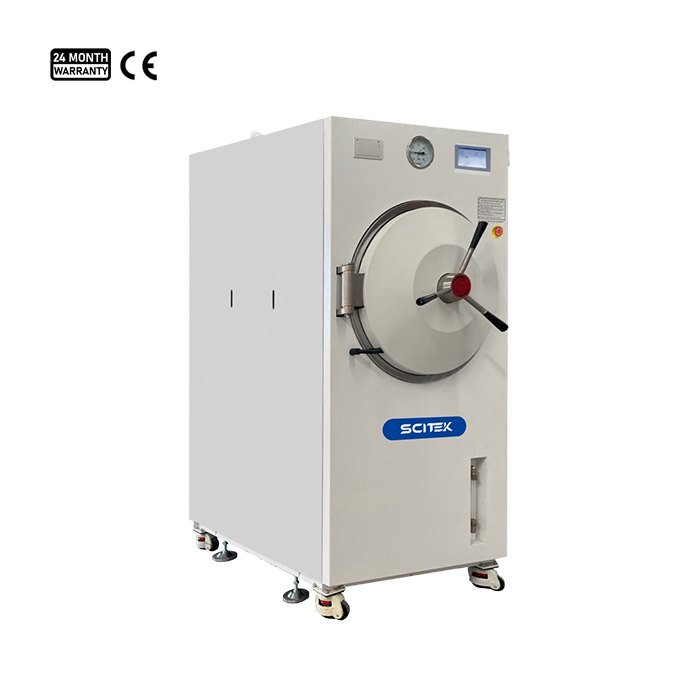

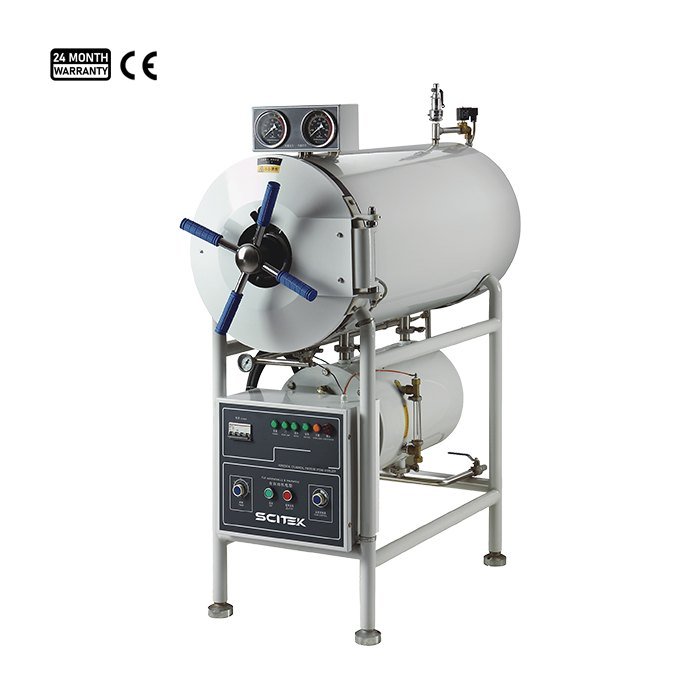

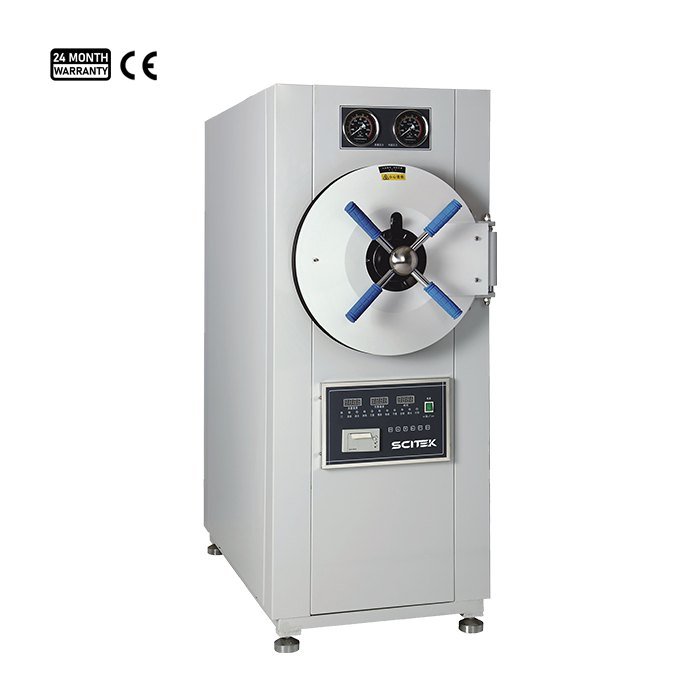

Horizontal Autoclave
- Models
- ST-H150YDA; ST-H200YDA; ST-H280YDA; ST-H400YDA; ST-H500YDA
- Capacity
- 150L
- Chamber Size (ΦxH)(mm)
- Φ440x1000
- Working Pressure
- 0.22MPa
- Max. Working Temperature
- 134℃
This horizontal pressure steam sterilizer adopts microcomputer control, heating, adding water, sterilising, drying, exhausting, the whole sterilisation process is fully automatic.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Horizontal Autoclave specification across the range. Figures are the manufacturer’s published values.
| Model | ST-H150YDA | ST-H200YDA | ST-H280YDA | ST-H400YDA | ST-H500YDA |
|---|---|---|---|---|---|
| Capacity | 150L | 200L | 280L | 400L | 500L |
| Chamber Size (ΦxH)(mm) | Φ440x1000 | Φ515x1000 | Φ600x1000 | Φ700x1100 | Φ700x1300 |
| Working Pressure | 0.22MPa | ||||
| Max. Working Temperature | 134℃ | ||||
| Sterilization Temperature | 40~134℃ | ||||
| Sterilization Time Range | 0~60min | ||||
| Drying Time Range | 0~60min | ||||
| Temp. Uniformity | ≤±2℃ | ||||
| Consumption | 9KW | 9KW | 12KW | 18KW | 18KW |
| Power Supply | 380V, 50Hz | ||||
| External Size (WxDxH)(mm) | 1400x600x1300 | 1400x670x1650 | 1400x770x1780 | 1430x880x1830 | 1800x900x1820 |
| Net Weight | 240kg | 260kg | 365kg | 420kg | 470kg |
| Gross Weight | 320kg | 350kg | 465kg | 530kg | 615kg |
| Shipping Size (WxDxH)(mm) | 1560x750x1850 | 1560x820x1850 | 1680x920x1950 | 1600x1050x2050 | 1850x1050x2010 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Automatially controlled the sterilizing process, easy to operate.
- With drying function, suitable for the medical dressing drying.
- With over-temperature, over-pressure auto-protect.
- The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
- The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
- Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
- The chamber of the sterilizer is made of stainless steel.
- Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.
