Home/Products/Scitek Global/Hardness Tester THT-50E
Tablet & capsule

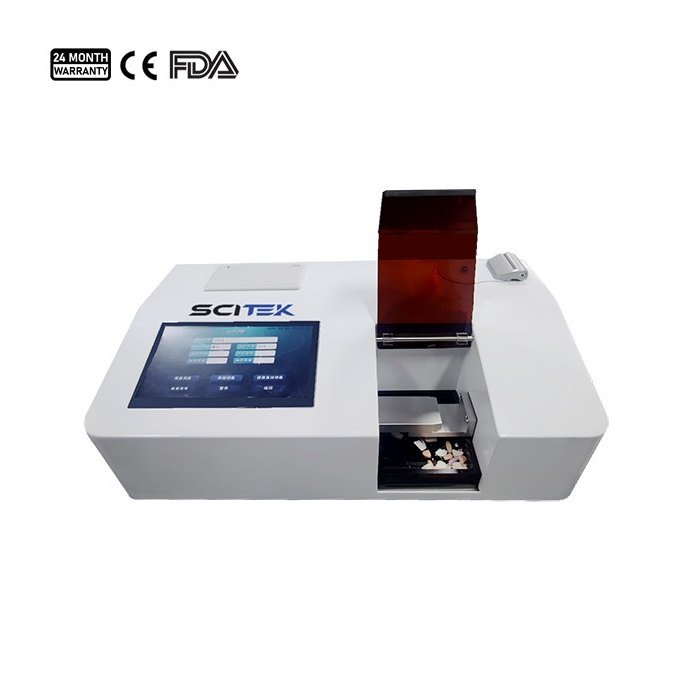

Hardness Tester THT-50E
- Models
- THT-50E
- Hardness
- 10-500 N, resolution 0.01 N, accuracy 0.1 N.
- Diameter
- 2-25 mm, resolution 0.01 mm, accuracy 0.1 mm.
- Thickness
- 0.5-15 mm, resolution 0.01 mm, accuracy 0.1 mm.
- Hardness
- Options include N/Kg/Kpa.
THT-50E tablet hardness tester is a pharmaceutical analyzer used to determine four physical parameters of tablets.
Added to your inquiry list. It travels with your next quote request.
1 models
Product Description
Hardness Tester THT-50E specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| THT-50E — Hardness Tester, THT-50E | |
| Hardness | 10-500 N, resolution 0.01 N, accuracy 0.1 N. |
| Diameter | 2-25 mm, resolution 0.01 mm, accuracy 0.1 mm. |
| Thickness | 0.5-15 mm, resolution 0.01 mm, accuracy 0.1 mm. |
| Weight | 1-20000 mg, resolution 1 mg, accuracy 20 mg. |
| Hardness | Options include N/Kg/Kpa. |
| Diameter | Options include mm/inch. |
| Measurement Mode | Manual single-piece or automatic continuous(up to 100 tablets). |
| Display | 7-inch touch screen. |
| Printing Interface | Standard Centronics serial print interface, supports Chinese or English output. |
| Power Supply | 110/220 V, 50/60 HZ |
| Packing Size(WxDxH)(mm) | 507x308x208 |
| G.W. | 15 kg |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Control and Operation: The instrument uses a micro controller to manage the user interface, making it convenient and easy to operate.
- Measurement Accuracy: Equipped with high-precision pressure sensors to ensure accurate measurements.
- Display: Touch screen with options for Chinese or English interface.
- Data Processing: Automatically performs statistical analysis, printing,and display of measurement data.
- Time Recording: Features a real-time clock function that can print the date and time of testing and calibration on the report.
- Fault Diagnosis: Has a self-diagnosis function to automatically prompt for any abnormal phenomena during testing.
- Printing Function: Built-in thermal printer with the option to connect an external dot-matrix printer.
- Calibration: Simple and convenient calibration method.
Applications
Where it is used
- THT-50E tablet hardness tester is a pharmaceutical analysis instrument designed for measuring four physical parameters of tablets: hardness, diameter, thickness, and weight.
