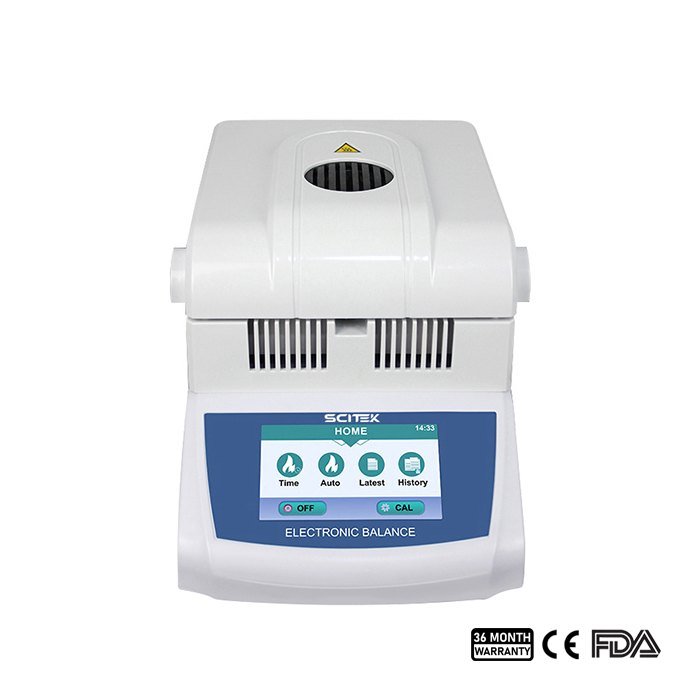

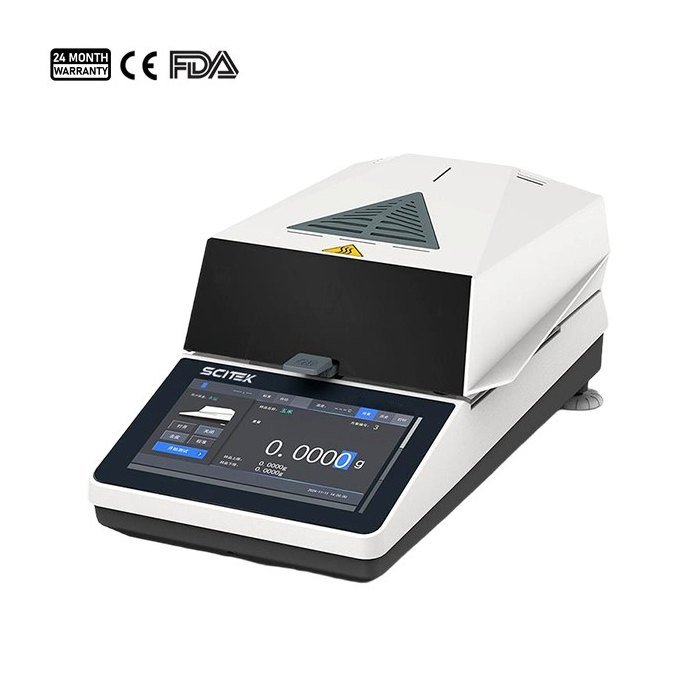

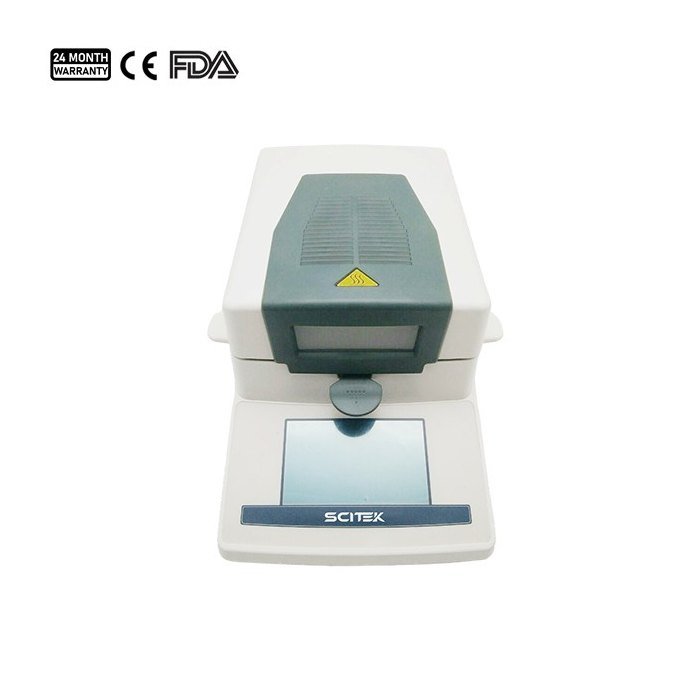

Halogen Moisture Analyzer
- Models
- BA-HM005; BA-HM105; BA-HM102; BA-HM101
- Capacity (g)
- 50
- Readability (g)
- 0.005
- Moisture Range
- 0~100%
- Accuracy for Moisture Measure
- ±0.5% (Sample≥5g)
The halogen moisture analyzer uses an aluminium alloy base with an ABS case for good corrosion resistance and long life.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Halogen Moisture Analyzer specification across the range. Figures are the manufacturer’s published values.
| Model | BA-HM005 | BA-HM105 | BA-HM102 | BA-HM101 |
|---|---|---|---|---|
| Capacity (g) | 50 | 100 | 100 | 100 |
| Readability (g) | 0.005 | 0.005 | 0.002 | 0.001 |
| Moisture Range | 0~100% | |||
| Accuracy for Moisture Measure | ±0.5% (Sample≥5g) | |||
| Moisture Readability | 0.02% | 0.02% | 0.01% | 0.01% |
| Interface | RS232 Interface | RS232 Interface | ||
| Scale Pan Size | Φ100 mm | |||
| Heating Way | High efficiency halogen lamp | |||
| Heating Time | 1~99 minutes interval of 1 seconds | |||
| Time End Control Mode | Auto Stop / Timed stop | |||
| Sample Drying Record | 8 times | |||
| Temperature Range | 60~160℃ | |||
| Temp.Increase Step | ±1℃ | |||
| External Size (W×D×H) | 205×325×170 mm | |||
| Shipping Size (W×D×H) | 325×460×295 mm | |||
| N.W. | 2.9 kg | |||
| G.W. | 4.9 kg | |||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 5.5'' LCD touch screen.
- Aluminum alloy base and ABS shell.
- Timer dry / Auto dry function.
- RS232 interface, support to connect with printer and PC.
- Sample name/Company/Contact information ect. can be entered.
- Administrator/Operator Password access login.
- Date&Time/Store 200 historical sets.
- Build-in sample testing solutions.
Applications
Where it is used
- Moisture analysis in food products
- Determination of moisture content in pharmaceuticals
- Testing moisture levels in cosmetics and personal care products
- Quality control in manufacturing processes for chemicals and plastics
- Measurement of moisture content in agricultural products such as grains and seeds
- Moisture analysis in environmental samples like soil and sediment
- Monitoring moisture levels in building materials like wood, concrete, and gypsum board.
