Home/Products/Scitek Global/Fume Hood
Safety & containment
Fume Hood
- Models
- FMH-800DL
- External Size (WxDxH)(mm)
- 800x620x1130 (Without Base Stand); 800x620x1800 (With Base Stand)
- Internal Size (WxDxH)(mm)
- 780x540x775
- Max.Opening
- 650mm
- Operation Surface Height
- 690mm

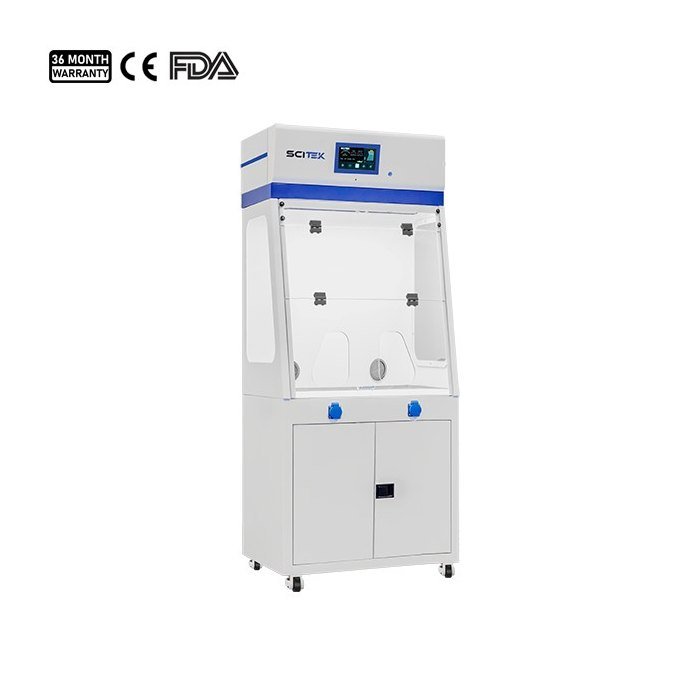

Scitek offers a laboratory state-of-the-art ductless fume hood that efficiently and consistently provides a continuous flow of air that filters out harmful fume vapors.
Added to your inquiry list. It travels with your next quote request.
1 models
Product Description
Fume Hood specification across the range. Figures are the manufacturer’s published values.
| Model | FMH-800DL | |
|---|---|---|
| External Size (WxDxH)(mm) | 800x620x1130 (Without Base Stand); 800x620x1800 (With Base Stand) | |
| Internal Size (WxDxH)(mm) | 780x540x775 | |
| Max.Opening | 650mm | |
| Operation Surface Height | 690mm | |
| Control System | 7-inch color touch screen, real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc | |
| Airflow System | Airflow Velocity | 0.4-0.6m/s, speed adjustable |
| Air filtration System | Filter | 1pcs Pre-filter, Polyester fiber,washable 1pcs Active Carbon filter |
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
| Work Surface | 304 Stainless Steel, Max.loading of worksurface: 70kg | |
| Front Window | Manual acrylic window | |
| Electrical System | LED Lamp | 16W×2 |
| Blower | DC Centrifugal blower, adjustable speed, low noise | |
| Consumption | 60W | |
| Power Supply | 220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Sound Emission | ≤50dB(A) | |
| Standard Accessory | 1. Active Carbon Filter×1; 2. Pre-Filter×1; 3. LED Lamp×2 | |
| Optional Accessory | 1. Base Stand; 2. Base Cabinet; 3. HEPA Filter; 4. Chemical filter; 5. Upgraded LED Lamp; 6. Solid Physicochemical Board Work Surface | |
| Net Weight | 96kg | |
| Gross Weight | 138kg | |
| Shipping Size (WxDxH)(mm) | 1160×840×1320 | |
| Shipping Volume | 1.3m³ | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Humanized design, three-sided acrylic transparent material observation window, convenient for multi-angle observation.
- Low noise design, using high-quality DC centrifugal blower to ensure performance while providing users with a quiet working environment.
- Memory function in case of power-failure.
- Audio and Visual alarm on filter life,VOC concentration
- Brushed stainless steel work surface is for easy cleaning.
- Different sizes available from 2 feet to 6 feet, benchtop use or mounted on a mobile base.
- Optional upgrade LED lamp can be choosed. Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate. RG0 without blue light, protects the operator from blue light.
- Standard with Active carbon filter. Effectively filter harmful gases, particles, dust, bacteria and other harmful substances produced in the experiment process to ensure the cleanliness of the laboratory environment. It protects the Operator and environment.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
