Home/Products/Scitek Global/Fully Automatic Dissolution Sampling and Collection System
Dissolution & disintegration

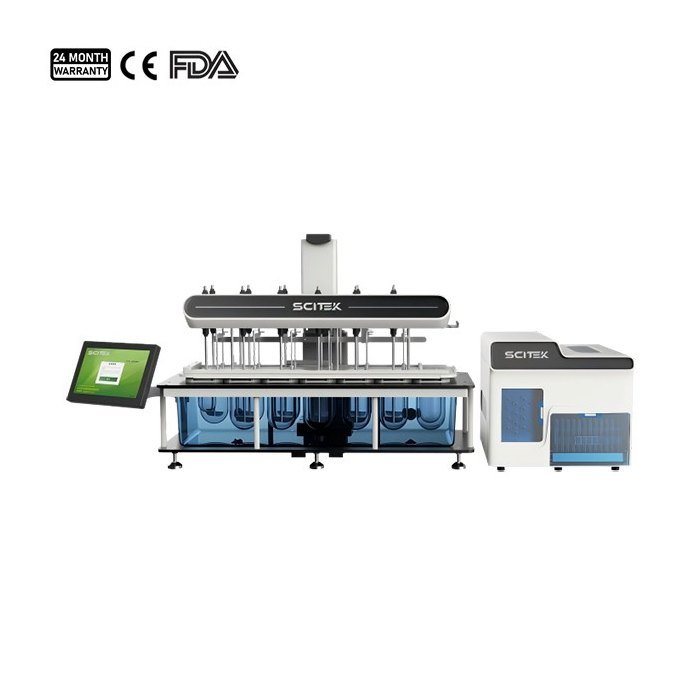

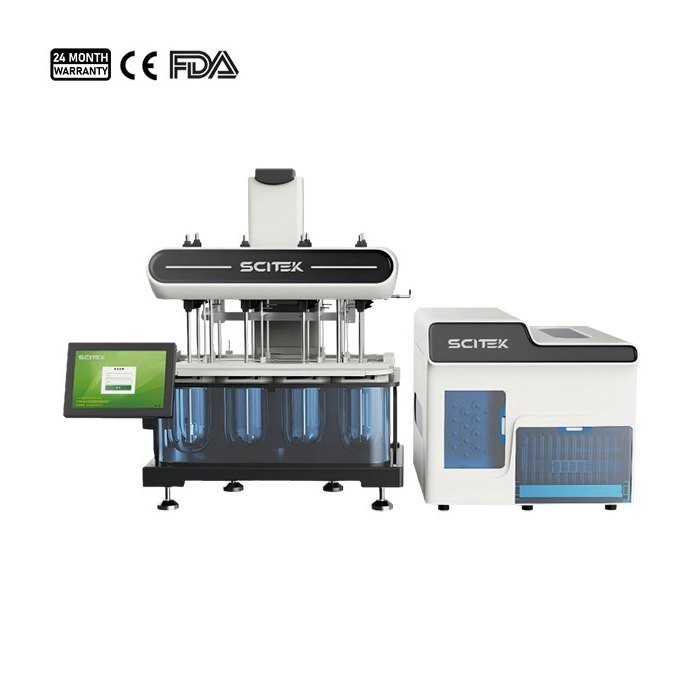

Fully Automatic Dissolution Sampling and Collection System
- Models
- DSC-F8DA; DSC-F12DA
- Number of Dissolution Vessel Positions
- 8
- Speed Range
- 0–400 ± 1 rpm / 400–1000 ± 4% rpm
- Temperature Range
- RT-50.0 ℃
- Temperature Stability
- ≤±0.1 ℃
The fully automatic dissolution sampling and collection system is an advanced solution designed to streamline the process of sample dissolution and collection in laboratories.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Fully Automatic Dissolution Sampling and Collection System specification across the range. Figures are the manufacturer’s published values.
| Model | DSC-F8DA | DSC-F12DA |
|---|---|---|
| Dissolution System | ||
| Number of Dissolution Vessel Positions | 8 | 14 |
| Speed Range | 0–400 ± 1 rpm / 400–1000 ± 4% rpm | 0–400 ± 1 rpm / 400–1000 ± 4% rpm |
| Temperature Range | RT-50.0 ℃ | RT-50.0 ℃ |
| Temperature Stability | ≤±0.1 ℃ | ≤±0.1 ℃ |
| Paddle Radial Run-Out | ≤0.5 mm | ≤0.5 mm |
| Basket Radial Run-Out | ≤0.8 mm | ≤0.8 mm |
| Deviation Between Rotating Rod and Dissolution Cup Axis | ≤1.0 mm | ≤1.0 mm |
| Power Supply | AC 220 V±10%, 50 Hz, 1800 W | AC 220 V±10%, 50 Hz, 1800 W |
| Sampling System | ||
| Sampling Channels | 8 | 12 |
| Maximum Sampling Times | 40 times | 40 times |
| Sampling Volume (Refilling Volume) | 1–20 mL | 1–20 mL |
| Minimum Sampling Interval | 1 minute for the first time, 2 to 5 minutes for the rest (depending on the sampling volume and whether fluid is replenished) | 1 minute for the first time, 2 to 5 minutes for the rest (depending on the sampling volume and whether fluid is replenished) |
| Maximum Working Time | 1 to 100,000 minutes (69 days) | 1 to 100,000 minutes (69 days) |
| Sampling Accuracy | ≤±1 % (average value of each channel for 5 mL sampling volume) | ≤±1 % (average value of each channel for 5 mL sampling volume) |
| Sampling Filtration Cycle | <30 s (fully in line with the requirements of the Chinese Pharmacopoeia) | <30 s (fully in line with the requirements of the Chinese Pharmacopoeia) |
| Size (W×D×H)(mm) | 550×900×810 | 600×1400×830 |
| Size (W×D×H)(mm) | 620×550×536 | 620×550×536 |
| N.W. (kg) | 80/60 | 150/60 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Adopt 14-inch LCD touch all-in-one machine for operation, which can be freely extended and placed in different positions.
- The instrument has a computer software operating system, which is easier to use, it has icon buttons like a smartphone, and is extremely easy to operate . The full Chinese operating system is easy to operate and has strong applicability.
- The 8-cup 8- paddle double-row design allows for automatic sampling of up to 8 cups of samples at the same time, and meets the control requirements for blank samples and standard products (DSC-F8DA).
- The 14-cup 12-paddle double-row design is adopted, which can automatically sample up to 12 cups of samples at the same time, and meet the control requirements of blank samples and standard products (DSC-F12DA).
- The paddle , basket and rotating basket are made of high-quality 316L stainless steel , It can also be equipped with a PTFE-coated paddle according to user needs.
- The instrument is equipped with an automatic synchronous dosing device, which can realize synchronous dosing of dissolution tests.
- It has dual-mode settings of synchronous speed and step speed, and can be equipped with up to 2 stirring motors for zone speed control to meet different experimental needs.
- The instrument's automatic sampling needle is made of PEEK material, which can be used in any dissolution medium, will not rust for life, and has no sample adsorption;
- The instrument has four levels of authority management, including super administrator (unlimited), administrator (unlimited), laboratory technician (unlimited), and visitor (unlimited), with a hierarchical management system. Effectively solve the problem of each user.
