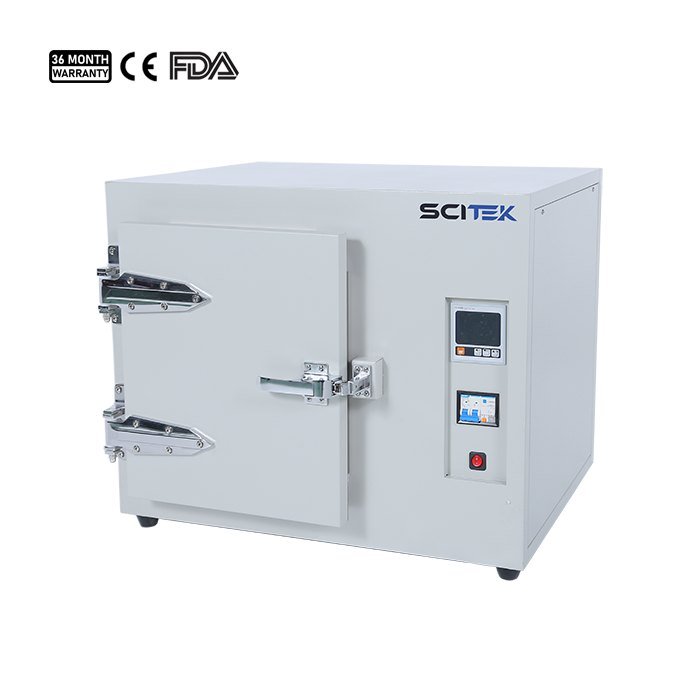

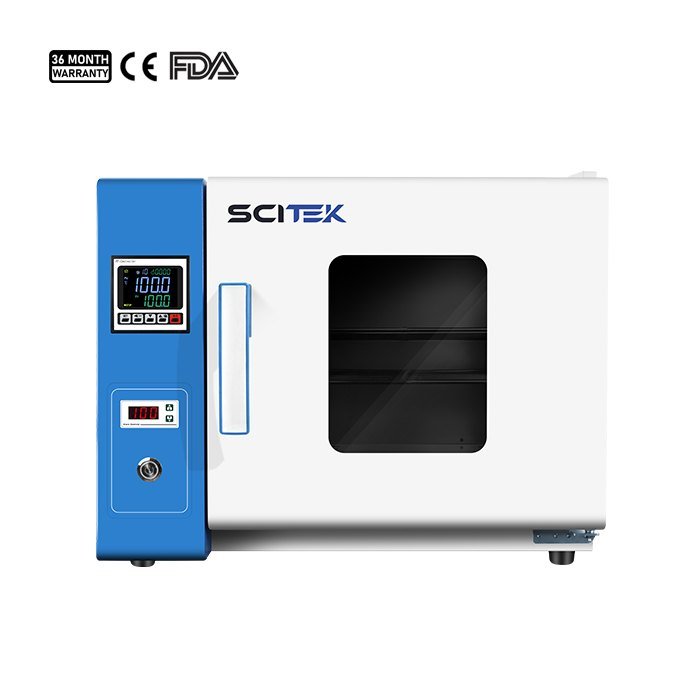

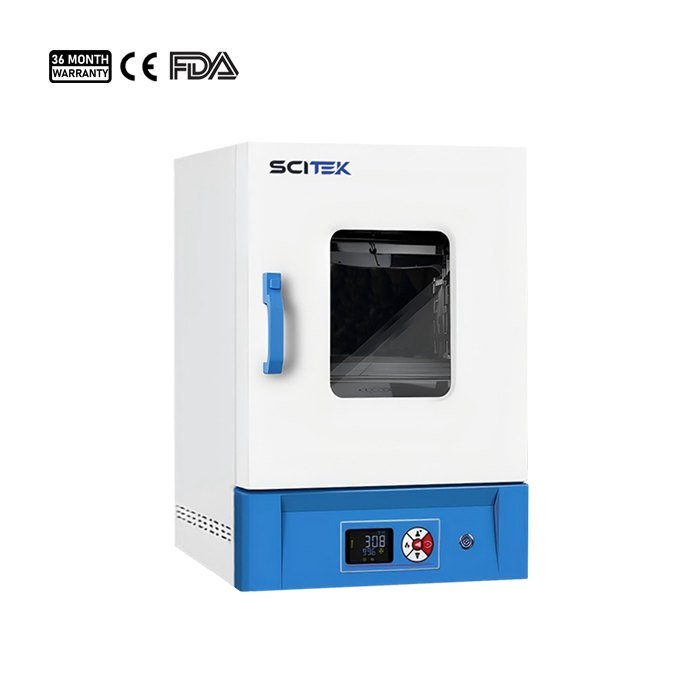

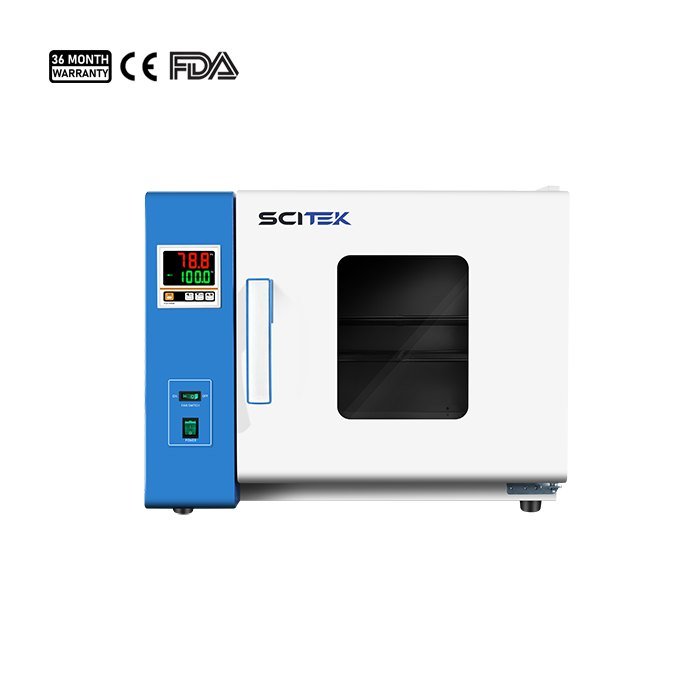

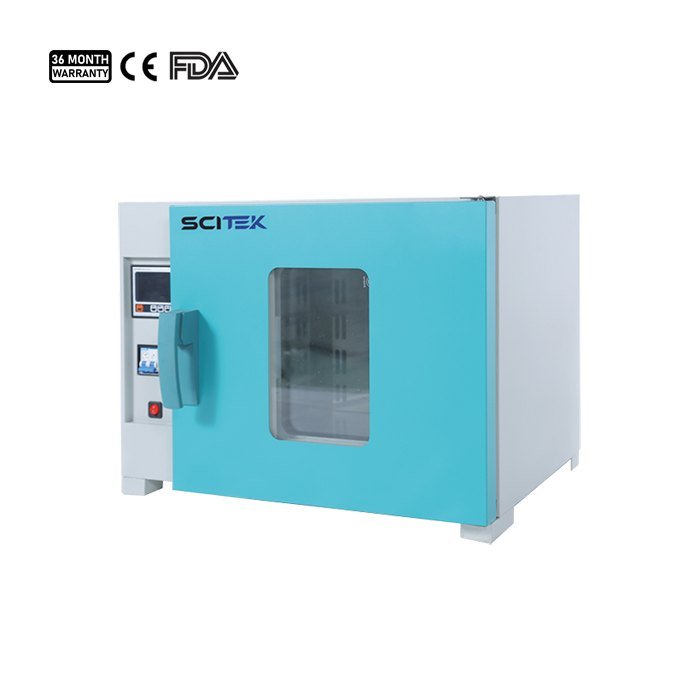

Forced Convection Drying Oven

The drying oven provides consistent temperature control for efficient drying and curing, featuring an adjustable thermostat.

Quantity

5 models

Product Description

Forced Convection Drying Oven specification across the range. Figures are the manufacturer’s published values.

Forced Convection Drying Oven specification by model, as published by Scitek Global
Model	HDO-45B	HDO-70B	HDO-140B	HDO-210B	HDO-240B
Capacity	42L	70L	136L	210L	245L
Voltage/Frequency	220V 50Hz; 110V 60Hz
Temperature Range	RT+10-300℃
Temperature Resolution	0.1℃
Temperature Fluctuation	±1℃
Temperature Uniformity	±1℃
Consumption (W)	1000W	1500W	2000W	3000W	3000W
Internal Size (W×D×H)(mm)	340×345×345	340×450×450	440×545×545	500×600×700	490×695×695
External Size (W×D×H)(mm)	465×650×525	510×750×620	570×850×725	660×900×870	615×1000×880
Package Size (W×D×H)(mm)	580×720×600	565×805×705	675×900×800	720×970×950	720×1050×950
Shelves (Standard/Max)	2/4	2/6	2/8	2/10	2/10
Gross Weight	41kg	47kg	64kg	80kg	87kg
Internal Material	Stainless steel

Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.

Key features

The product shell is made of high-quality cold plate, and the surface is treated by spraying process.
The inner chamber is stainless steel.
Intelligent digital display PID temperature control instrument, with timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
Super large double-layer tempered glass observation window, convenient for observing the changes of items in the box.
Adopt new synthetic silicone sealing strips, beautiful appearance, long-term high temperature operation, longer service life.
The hot air circulation system adopts low-noise self-heating fan to ensure longer service life of the fan and more uniform temperature in the box. The equipment is equipped with a fan speed switch, and the user can adjust the wind speed according to needs.
LCD instrument, program control instrument, printer, 485 interface, and other functions (optional).
Oven has a new synthetic silicone sealing strip to prevent heat loss, and automatically adjusts control parameters based on ambient temperature and load to optimize heating and reduce energy consumption.
