Disintegration Tester

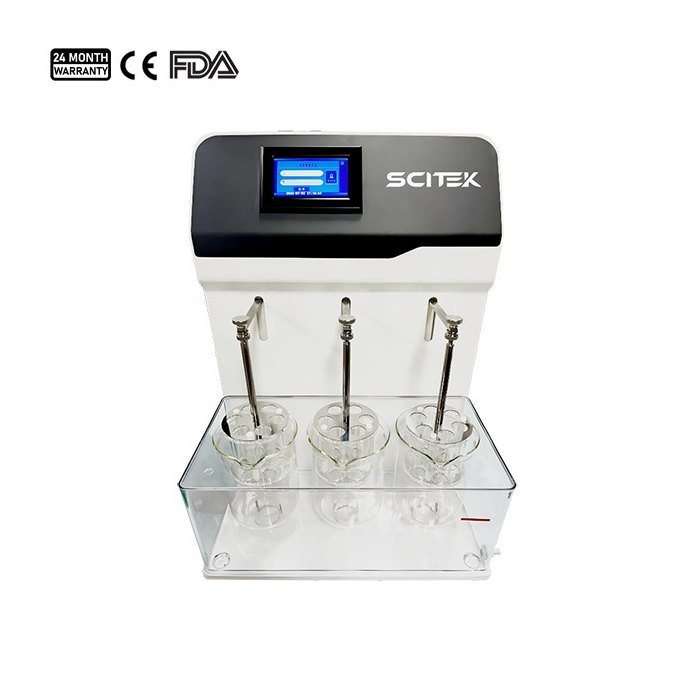

The DTLT-3GS disintegration time limit tester features a 3-cup design, enabling simultaneous testing of 3 time limits.

Quantity

1 models

Product Description

Disintegration Tester specification across the range. Figures are the manufacturer’s published values.

Disintegration Tester specification by model, as published by Scitek Global
Model	DTLT-3GS
Number of Hanging Baskets	3
Lifting Distance	55±1 mm
Upgrade Frequency	31±1 times/minute
Water Bath Temperature	Room temperature ~45 ℃
Temperature Resolution	0.01 ℃
Temperature Control Accuracy	37±0.3 ℃
Screen Size	Standard 2 mm; Options: 1, 0.71, 0.42 mm
Rights Management	Three levels, seven users
Audit Trail	96 items ×366 days
Login Mode	User name + password, fingerprint
Online Printing	Supported. (optional)
FingerprintLogin	Supported. (optional)
Power Supply	110/220 V, 50/60 HZ
Packing Size	500×500×780 mm
G.W.	22 kg

Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.

Key features

1. The 7-inch full-color LCD touch screen makes operation easier and can clearly display real-time operating parameters.
2. The shell is made of high-quality anti-corrosion plastic and is coated with advanced anti-corrosion materials.
3. Each set of hanging baskets can be raised and lowered independently and has the function of simultaneous start and stop to meet the different experimental needs of users.
4. The number of basket lifting times is displayed in real time, and each basket group is counted independently.
5. Adopting water circulation heating technology, the water bath has no heating element, effectively avoiding dry burning of the heating element.
6. Adopting a PT100 high-precision temperature control sensor enables real-time constant temperature control, with dual over-temperature protection and temperature calibration function.
7. After the experiment, the hanging basket automatically stops at a high position, making it easy to load and unload the hanging basket and beaker.
8. The software has four-level authority management and account grouping settings, and has audit tracking, work logs, experimental records and other management functions.
