Conductivity Meter
- Models
- CON-BS50M; CON-BS50H
- Range
- 10μS/cm to 20mS/cm
- Resolution
- 0.001, 0.01, 0.1, 1
- Accuracy
- ±0.5% F.S.
- Calibration Points
- 1 to 3 points

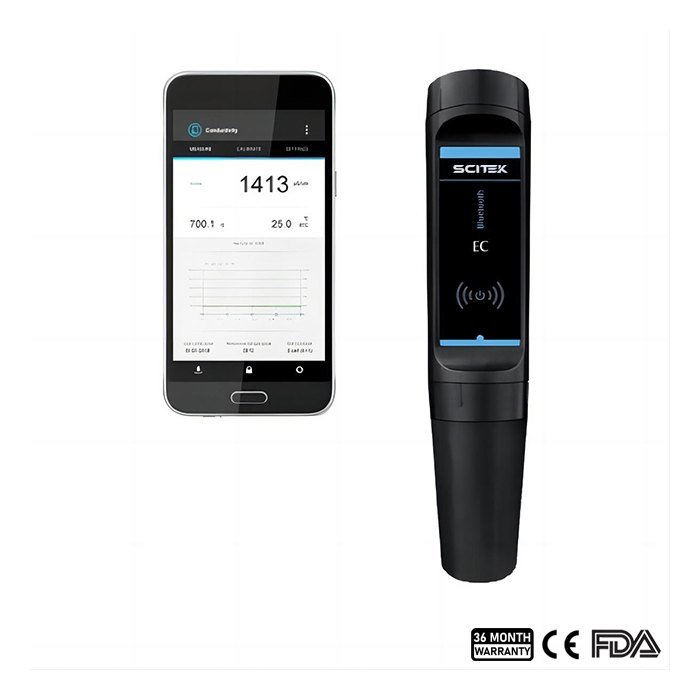

The bluetooth conductivity meter is ideal for water analysis, hydroponics, aquaculture and other applications to check water quality.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Conductivity Meter specification across the range. Figures are the manufacturer’s published values.
| Model | CON-BS50M | CON-BS50H |
|---|---|---|
| Conductivity | ||
| Range | 10μS/cm to 20mS/cm | 100μS/cm to 200mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1 | |
| Accuracy | ±0.5% F.S. | |
| Calibration Points | 1 to 3 points | |
| Calibration Solutions | 84µS, 1413µS, 12.88mS, 111.8mS | |
| TDS | ||
| Range | 0 to 20.00g/L | 0 to 200.0g/L |
| Resolution | 0.01, 0.1, 1 | |
| Accuracy | ±1% F.S. | |
| TDS Factor | 0.01 to 1.00 (Default 0.5) | |
| Salinity | ||
| Range (Practical Salinity) | 0.00 to 10.00psu | 0.00 to 42.00psu |
| Range (Natural Seawater) | 0.00 to 10.00ppt | 0.00 to 80.00ppt |
| Range (%) | 0.00 to 1.00% | 0.00 to 8.00% |
| Resolution | 0.01 | |
| Accuracy | ±1% F.S. | |
| Resistivity | ||
| Range | 0.00 to 10.00MΩ | 0.00 to 1.00MΩ |
| Resolution | 0.01, 0.1, 1 | |
| Accuracy | ±1% F.S. | |
| Conductviity Ash | ||
| Range | 0 to 100% | |
| Accuracy | ±1% F.S. | |
| Measurement Modes | Refined sugar or raw sugar | |
| General Specificaions | ||
| Temperature Compensation | 0 to 100°C/32 to 212°F, automatic | |
| Temperature Coefficient | Linear (0.0 to 10.0%/°C), non-linear, USP, EP | |
| Pure Water Compensation | Yes | |
| Reference Temperature | 20/25°C | |
| Cell Constant | K=1 | K=10 |
| Stability Criteria | Fast, standard, slow | |
| Measurement Modes | Continuous or auto-read | |
| Timed Interval Readings | 10, 30, 60, 300 seconds or off | |
| Calibration Due Alarm | 1 to 99 days or off | |
| Data Transfer | Send to memory or printer | |
| Password Protection | 6 digits | |
| Connectivity | Bluetooth 4.0 or later | |
| Max Wireless Range | 10m/32.8ft | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- High measurement accuracy: 0.5% F.S.
- 1 to 3 point calibration, automatic recognition of conductivity standards
- Automatic temperature compensation ensures accurate measurements over the full range.
- Compact and lightweight, the meter is easy to carry and use in different locations.
- Built-in memory or data logging allows storage and retrieval of measurement data.
- Automatic endpoint lock retains stable readings for easy viewing and recording
- Multi-parameter measurement can be connected to the dissolved oxygen meter and display the measured value simultaneously
- High-range pocket conductivity meter, economical and easy to use.
