Home/Products/Scitek Global/CO2 Incubator
Heating, cooling & storage

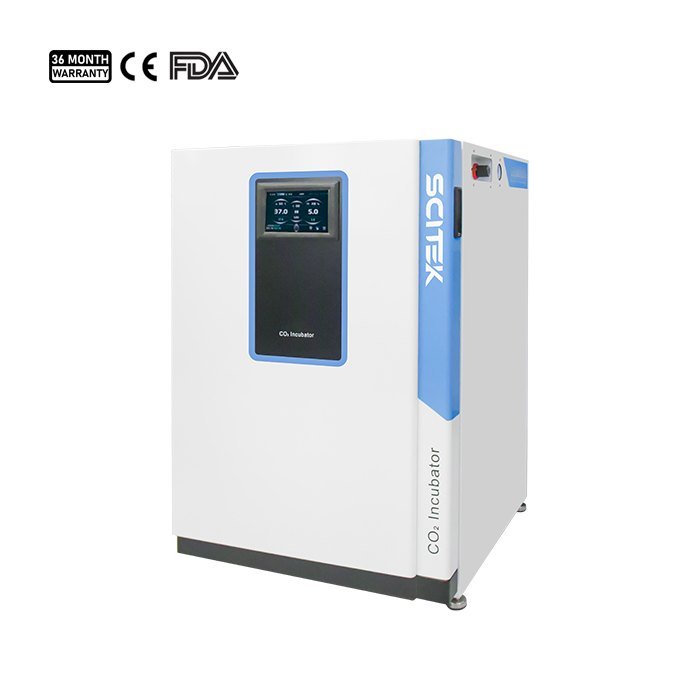

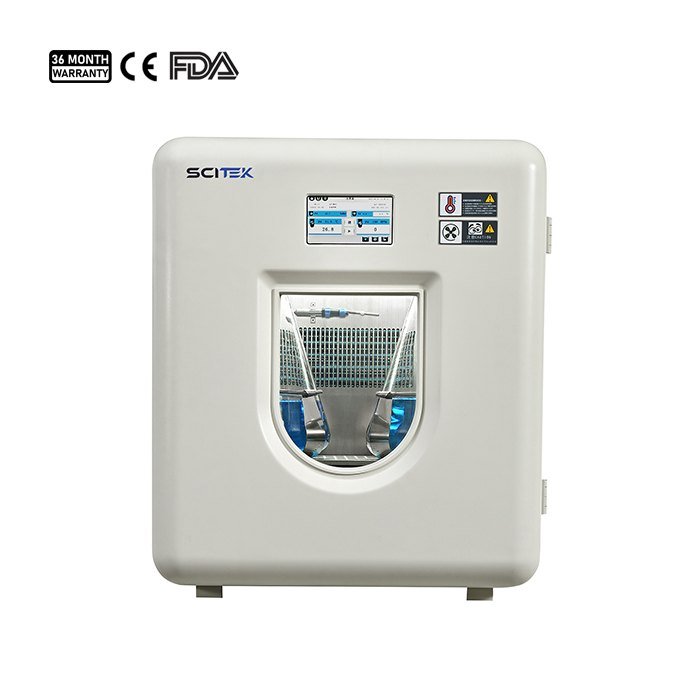

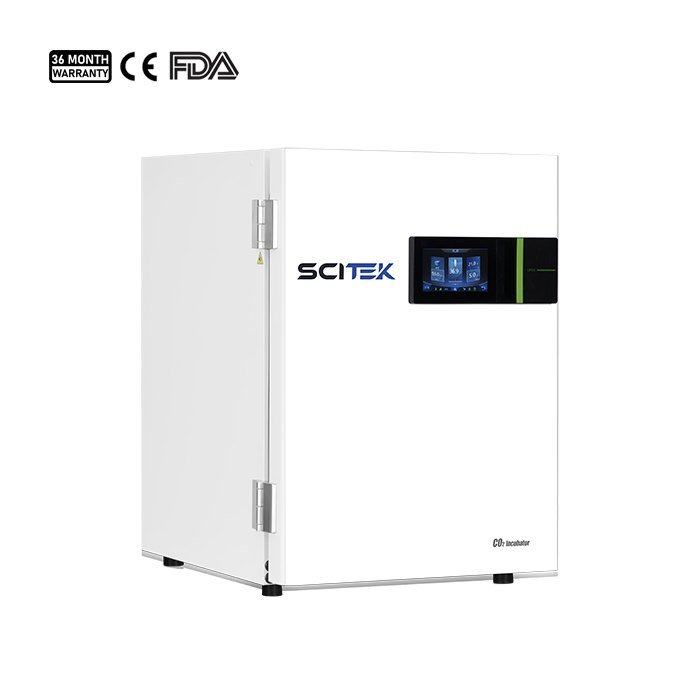

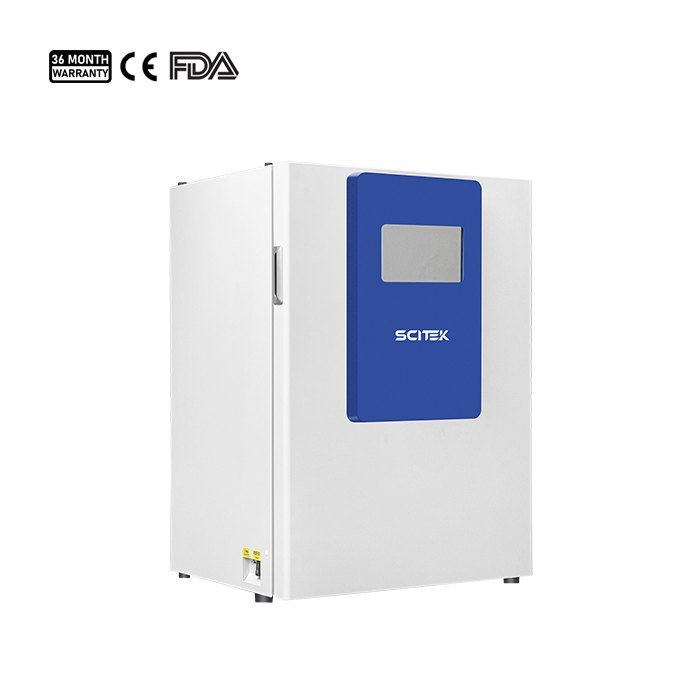

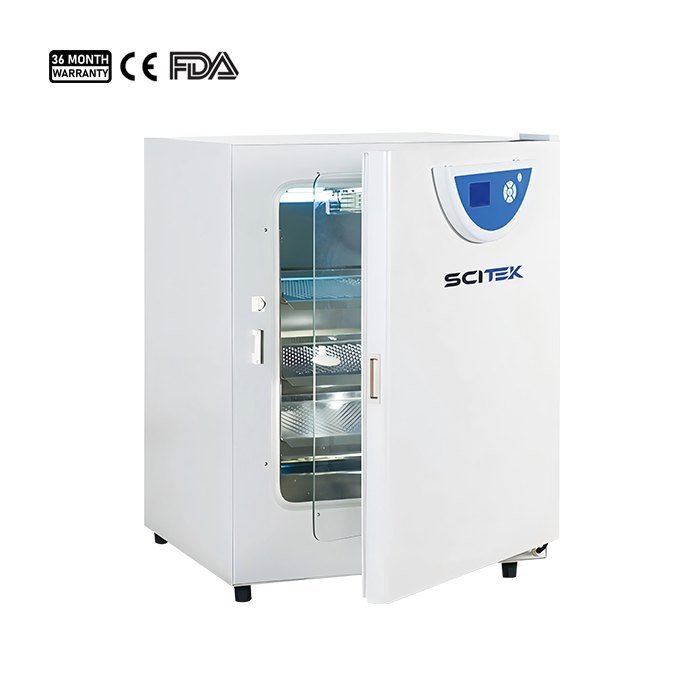

CO2 Incubator
- Models
- ICB-C160A; ICB-C195A; ICB-C185W
- Capacity(L)
- 160
- Internal Size (W×D×H)(mm)
- 480x480x698
- External Size (W×D×H)(mm)
- 675x695x975
- Heating method
- Air jacket
The CO2 incubator is able to provide optimal conditions for cell growth. Improve the cell viabilty with ICB-CA series lab cell culture co2 incubator.
Added to your inquiry list. It travels with your next quote request.
3 models
Product Description
CO2 Incubator specification across the range. Figures are the manufacturer’s published values.
| Model | ICB-C160A | ICB-C195A | ICB-C185W |
|---|---|---|---|
| Capacity(L) | 160 | 195 | 185 |
| Internal Size (W×D×H)(mm) | 480x480x698 | 500x500x780 | 490x490x770 |
| External Size (W×D×H)(mm) | 675x695x975 | 695x715x1060 | 685x705x1030 |
| Heating method | Air jacket | Water jacket | |
| Temperature control range | RT+5-60℃ | ||
| Temperature fluctuation (℃) | ≤±0.2℃ | ||
| Temperature Uniformity (℃) | ≤±0.4℃（37℃） | ||
| CO2 control range | 0～20% | ||
| CO2 control accuracy | ±0.1% | ||
| CO2 recovery time | (Recovery to 5% in 60 seconds)≤ 6 minutes | ||
| Temperature recovery | (Return to 37℃ in 60 seconds)≤ 5 minutes | ||
| Relative humidity | ≤90%RH±3% | ||
| 90 ℃ high temperature moist heat sterilization | Yes | ||
| Load carrier (standard) | 3pcs | ||
| Power Supply | AC220V 50/60Hz | ||
| Input power | 800W | 1150W | 1100W |
| Shipping Size (W×D×H)(mm) | 880x860x1200 | 890x880x1250 | 880x860x1200 |
| G.W.(KG) | 121 | 133 | 1 58 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Six-sided heating ensures uniform temperature distribution with a uniformity of up to ±0.4°C.
- Built-in fan gently blows air so that it is evenly distributed in the chamber, ensuring a consistent culture environment.
- Removable drawer-style shelves can be flexibly combined, and the independent humidification water tray can be taken out or put in according to needs.
- Stainless steel shelves and brackets are durable and can be removed without tools.
- Stainless steel inner cavity with large rounded corners for easy cleaning.
- 90°C high temperature and moist heat sterilization function, no need to disassemble parts separately.
- The 90℃ high temperature and wet heat sterilization system can effectively eliminate the microbial contamination caused by bacteria, molds, mycoplasma and other microorganisms on the surface of the inner cavity to cell culture, providing users with a safe experimental environment.
- Precise temperature control--Six-sided heating.
Applications
Where it is used
- Cell culture and cell growth
- Tissue engineering and regenerative medicine research
- Cellular virology and bacteriology experiments
- Drug screening and pharmacological research
- Medical clinical diagnostics and biomedical research
