Heating, cooling & storage

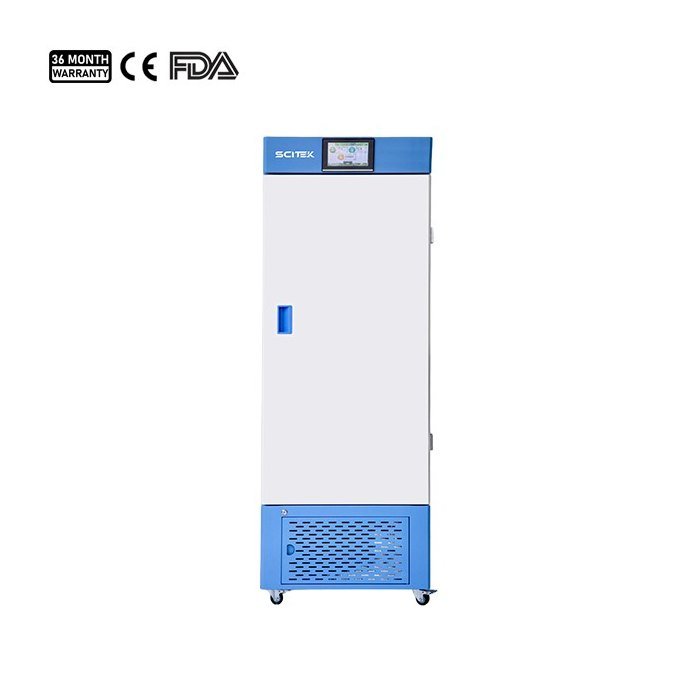

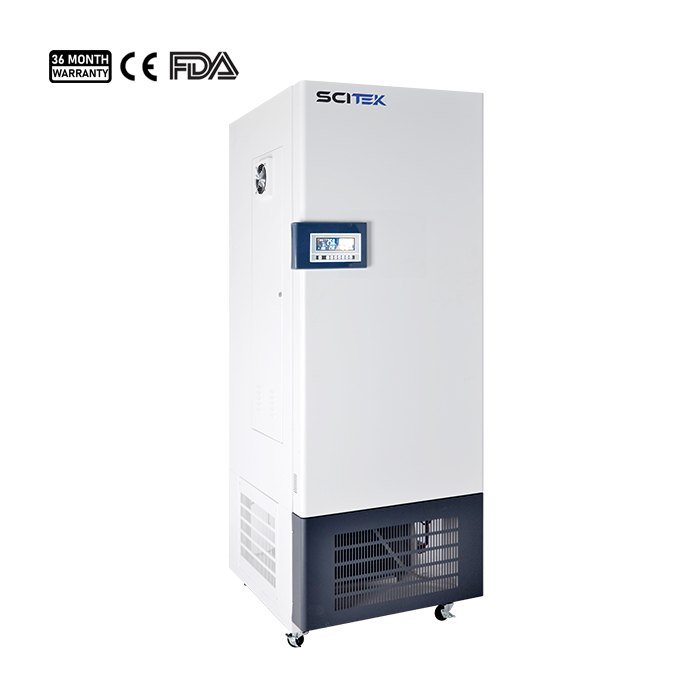

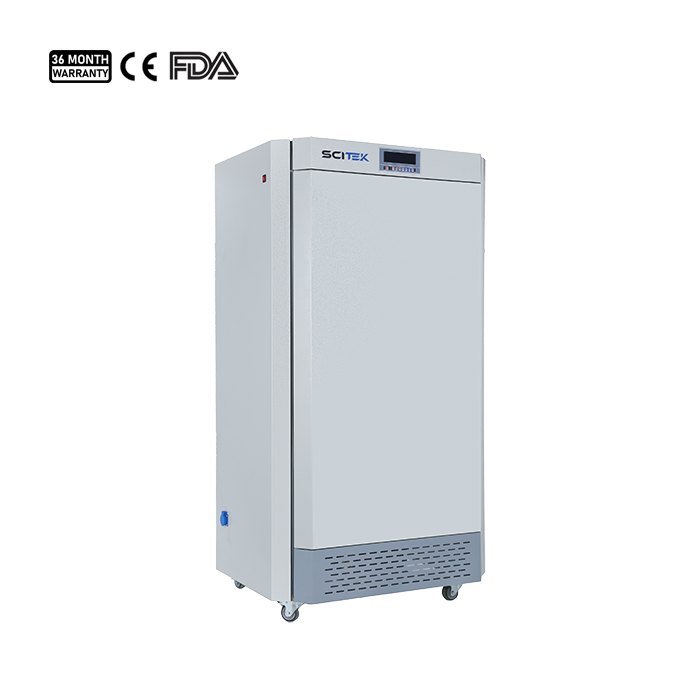

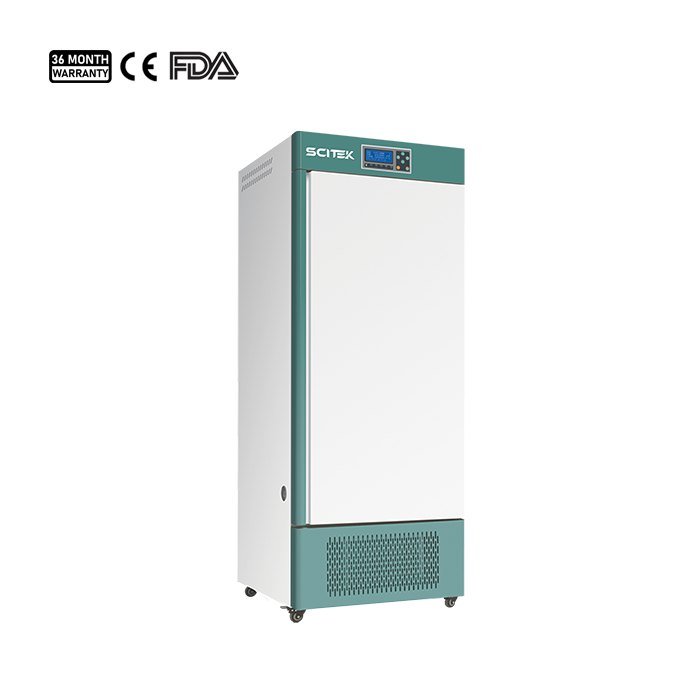

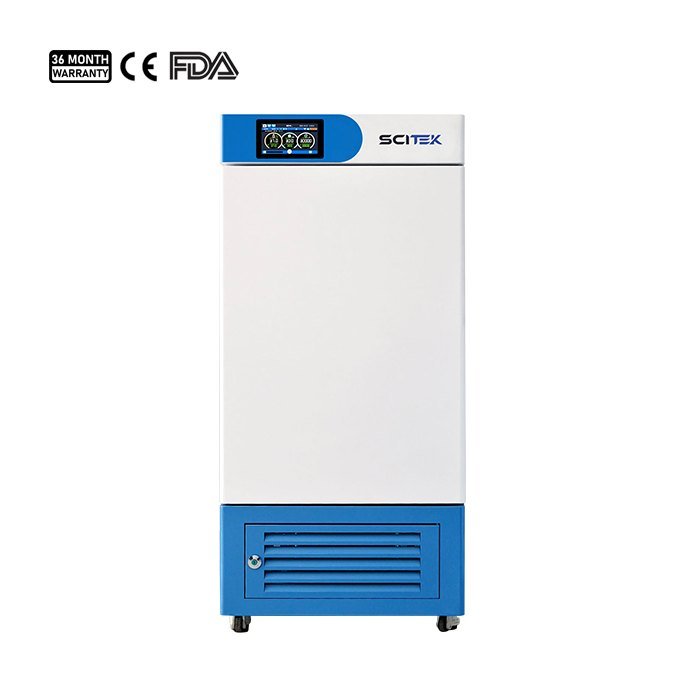

Climate Incubator
- Models
- ICB-250C; ICB-350C
- Capacity(L)
- 250
- Circulation Mode
- Forced convection
- Size(WxDxH)
- Internal (mm)
- External (mm)
- 660×660×1700
Scitek climate chambers and climate incubatorstand out when testing material behaviors under constant temperature and humidity conditions.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Climate Incubator specification across the range. Figures are the manufacturer’s published values.
| Model | ICB-250C | ICB-350C | |
|---|---|---|---|
| Capacity(L) | 250 | 350 | |
| Circulation Mode | Forced convection | ||
| Size(WxDxH) | Internal (mm) | 560×420×1050 | 560×530×1200 |
| External (mm) | 660×660×1700 | 670×730×1880 | |
| Temperature | Range (℃) | With lighting: 10~60; Without lighting: 4~60 | |
| Fluctuation (℃) | ±1 | ||
| Resolution (℃) | 0.1 | ||
| Uniformity (℃) | ±1 | ±2 | |
| Sensor | PT100 | ||
| Humidity | Range | 50~90%RH | |
| Stability | ±5 ~ ±7 % | ||
| Method | Internal | ||
| Sensor | High precision anti-condensation | ||
| Illumination(Lx) | 0~12000 | 0~15000 | |
| Illumination Control | 6-level relative illuminance control | ||
| Controller | PID | ||
| Display | Large high efinition LCD | ||
| Timer | 1~9999min (Optional 30xsegmentsx100cycles) | ||
| Material | Internal | Stainless steel | |
| External | Cold rolled steel electrostatic spraying exterior | ||
| Shelves | 3 | ||
| Internal Socket | Optional | ||
| Refrigerant | R134a (CFC free) | ||
| Defrosting Mode | Automatic | ||
| Safety Device | Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector | ||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |
| Consumption (W) | 880 | 1640 | |
| N.W./G.W. (kg) | 120/150 | 140/285 | |
| Shipping Size (WxDxH) (mm) | 820x800x1920 | 1020x920x2090 | |
| Optional | Test hole(Φ25/50/80/100mm), spare shelf, internal socket, digital independent temp. Limiter, intelligent, LCD procedure temperature controller (Optional USB, RS485/232 port and built-in printer) | ||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Large-screen LCD display for easy monitoring.
- Three-stage electric heating defrosting program control for efficient defrosting.
- Back suction and bottom vertical air supply circulation system for optimal airflow.
- Laser hollowed-out shelves with round holes for improved ventilation and temperature uniformity.
- Adjustable shelves with minimum spacing of 30mm for flexible storage.
- Equipped with leakage protection device for operator and equipment safety.
- Temperature control sound and light alarm system for precise monitoring.
- Self-diagnosis function to display fault information for easy troubleshooting.
