Chromatography
Chromatography System
- Models
- LC-I1100; LC-G1100
- Pump
- P-H1100*1
- Detector
- UV-VIS1100*1
- Gradient Mixer
- /
- Solvent Bottle Tray
- SBT-1100*1

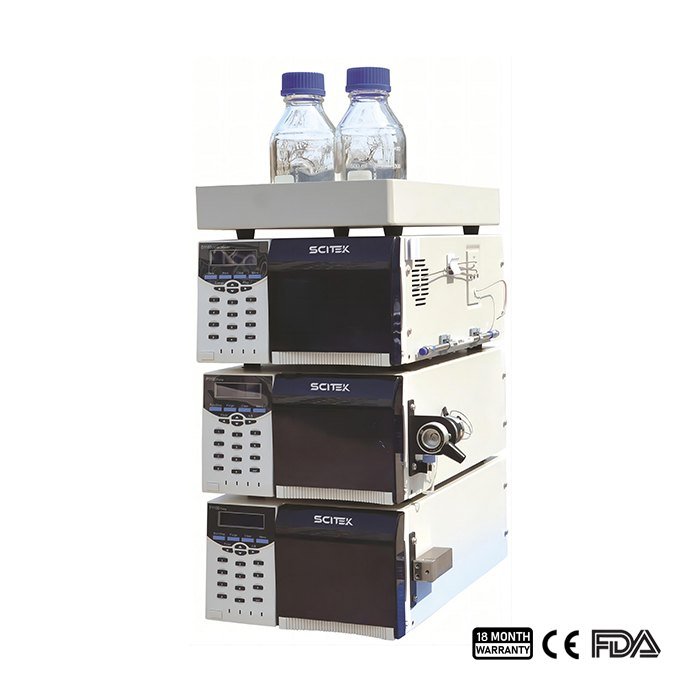

The high performance liquid chromatograph is equipped with a 2 x 16 digit blue LCD display screen and an integral instrument frame for higher load bearing and stability.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Chromatography System specification across the range. Figures are the manufacturer’s published values.
| Model | LC-I1100 | LC-G1100 |
|---|---|---|
| Pump | P-H1100*1 | P-H1100*2 |
| Detector | UV-VIS1100*1 | |
| Gradient Mixer | / | GM-15*1 |
| Solvent Bottle Tray | SBT-1100*1 | |
| Sampler Injector | LPS-110035*1 | |
| Column | CC-4625ODS2 5μm ID4.6*200mm*1 | |
| Workstation | CW-1100*1 | |
| Valve Mounting Frame | VB-1100*1 | |
| System Kit | ST-1100*1 | |
| Power Supply | AC220V±10%, 50Hz | |
| Optional Accessory | 500ml Solvent bottle*2, Column, Column Oven | |
| Optional Accessory | 500ml Solvent bottle*2, Column, Column Oven | |
| Shipping Size (W×D×H)(mm) | 530x390x330*1; 610x430x310*2 | 530x390x330*1; 610x430x310*3 |
| G.W. (kg) | 45 | 60 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
