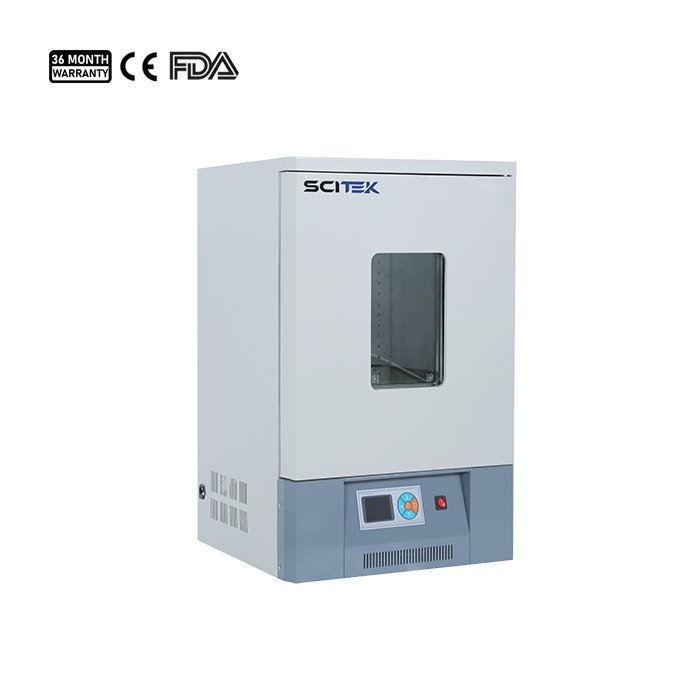

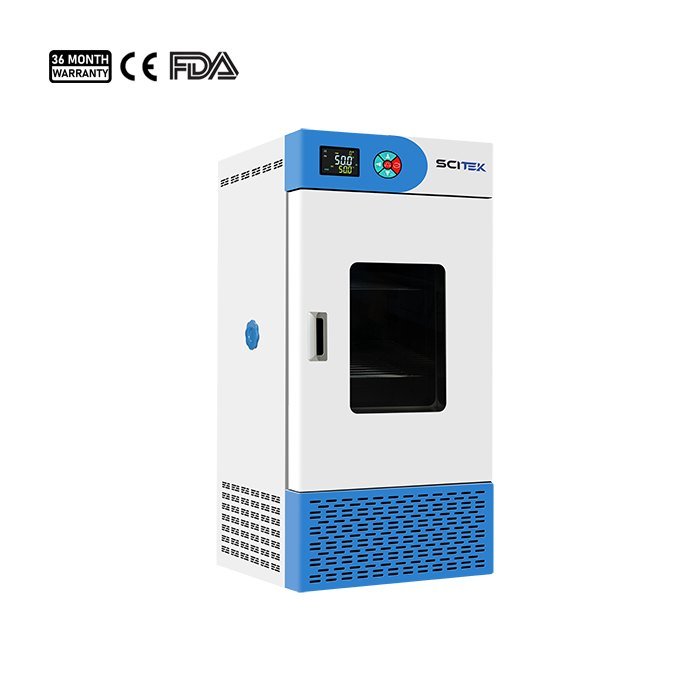

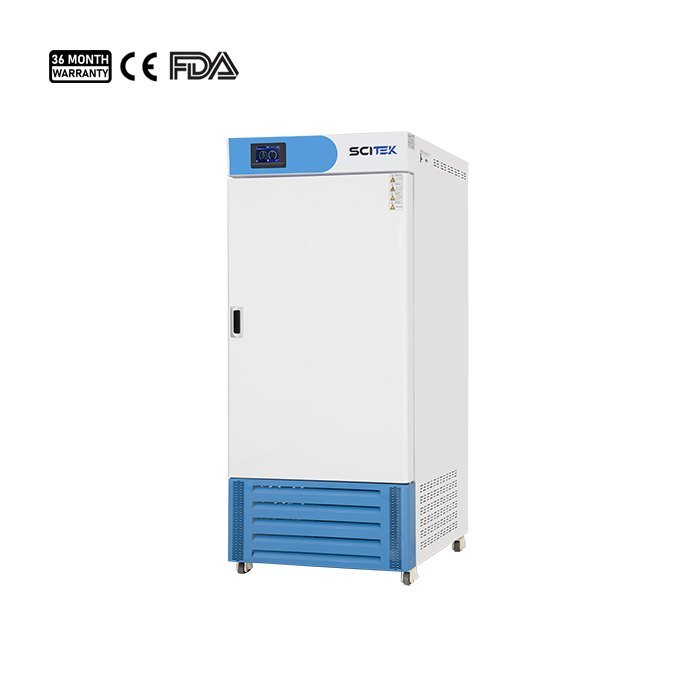

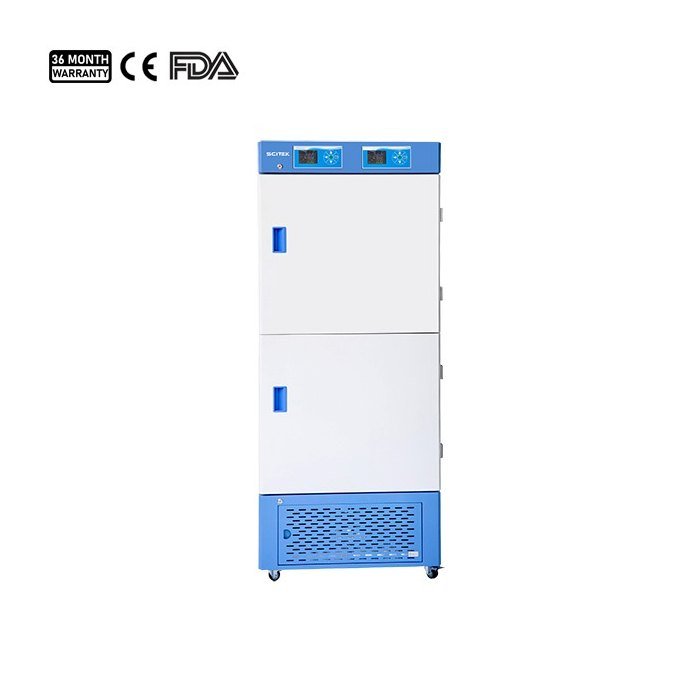

BOD Incubator
- Models
- ICB-50BI; ICB-80BI; ICB-150BI; ICB-250BI; ICB-350BI; ICB-460BI
- Capacity(L)
- 50
- Circulation Mode
- Forced convection
- Internal Size (WxDxH)(mm)
- 350x350x400
- External Size (WxDxH)(mm)
- 580x460x900
The cooling biochemical incubator precisely controls humidity and temperature for accurate microbial growth and BOD testing.
Added to your inquiry list. It travels with your next quote request.
6 models
Product Description
BOD Incubator specification across the range. Figures are the manufacturer’s published values.
| Model | ICB-50BI | ICB-80BI | ICB-150BI | ICB-250BI | ICB-350BI | ICB-460BI | |
|---|---|---|---|---|---|---|---|
| Capacity(L) | 50 | 80 | 150 | 250 | 350 | 460 | |
| Circulation Mode | Forced convection | ||||||
| Internal Size (WxDxH)(mm) | 350x350x400 | 400x400x500 | 400x500x750 | 500x550x910 | 600x600x1000 | 650x650x1100 | |
| External Size (WxDxH)(mm) | 580x460x900 | 610x560x1070 | 600x660x1400 | 700x720x1590 | 790x760x1640 | 850x805x1730 | |
| Temperature | Range | 5-65°C | |||||
| Fluctuation | High Temp.: ±0.5°C; Low Temp.:±1°C | ||||||
| Resolution | 0.1°C | ||||||
| Uniformity | ±2°C | ||||||
| Controller | PID controller | ||||||
| Display | Digital LCD dispaly | ||||||
| Timer(min) | 0-9999 | ||||||
| Material | Internal | Stainless steel | |||||
| External | Cold rolled steel electrostatic spraying exterior | ||||||
| Test Hole | Standard Φ43mm test hole on the left side | ||||||
| Refrigerant | R134a (CFC free) | ||||||
| Defrost Mode | Automatic | ||||||
| Safety Device | Over temperature | ||||||
| Power Supply | AC 220/110V, 50/60Hz | ||||||
| Consumption(W) | 500 | 600 | 800 | 1000 | 1200 | 1400 | |
| Shelves | 2 | ||||||
| Shipping Size (W×D×H)(mm) | 615x510x980 | 690x620x1150 | 770x735x1520 | 820x800x1660 | 870x860x1800 | 990x1040x1970 | |
| G.W. (kg) | 51 | 61 | 87 | 112 | 139 | 168 | |
| Optional | USB Port; RS485 interface; printer and spare shelf | ||||||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
- The shell is treated with electrostatic spraying technology, which is corrosion-resistant and durable.
- Microcomputer control system, accurate and reliable temperature control.
- High-efficiency compressor and circulating fan are used, which are energy-saving and low-consumption.
- Equipped with a temperature limit alarm system, which will automatically limit over-temperature to ensure experimental safety.
- Double-layer glass observation window. The outer door is sealed with magnetic strips, which is easy to open and close, has good sealing and thermal insulation performance.
- 304 Stainless steel chamber, semi-circular inner corner, shelves can be freely loaded and unloaded, easy to clean.
- Large touch screen, 99×5-segment program control, with temperature curve, data storage function.
Applications
Where it is used
- Environmental monitoring and protection:
- Used to determine biochemical oxygen demand in water bodies and assess water quality.
- To monitor the effectiveness of wastewater treatment to ensure compliance with discharge standards.
- Food and Beverage Industry:
- To study the fermentation process of food and beverages.
- For microbiological testing and cultivation to ensure food safety and quality.
- Pharmaceutical Industry:
- Microbiological culture during drug development
