Safety & containment

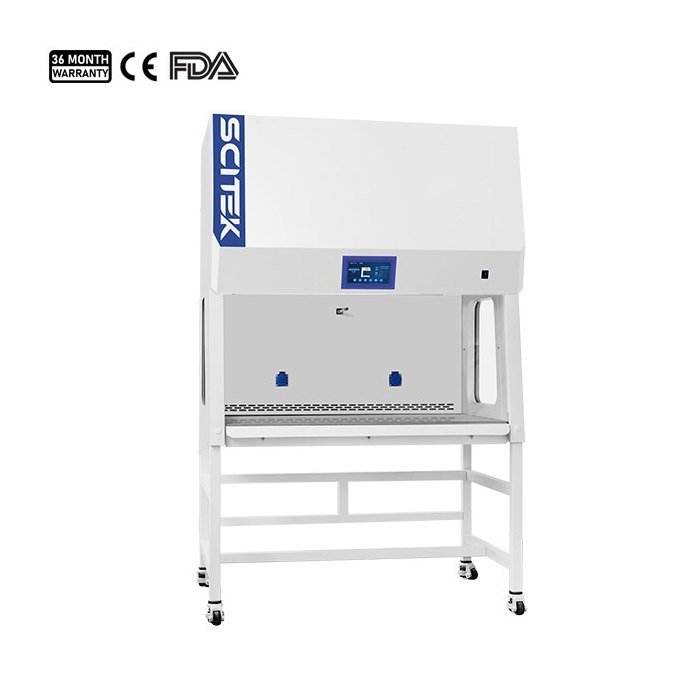

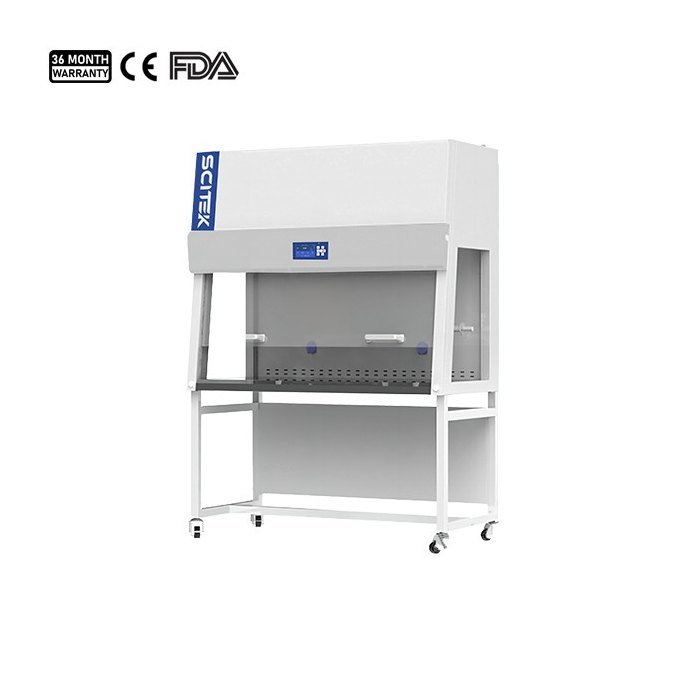

Biological Safety Cabinet
- Models
- BSC-IIA2-1500HE; BSC-IIA2-1800HE
- External Size (W×D×H)(mm)
- 1500×780×2130
- Internal Size (W×D×H)(mm)
- 1300×626×600
- Tested Opening
- Safety height 200 mm (8”)
- Max.Opening
- 600 mm

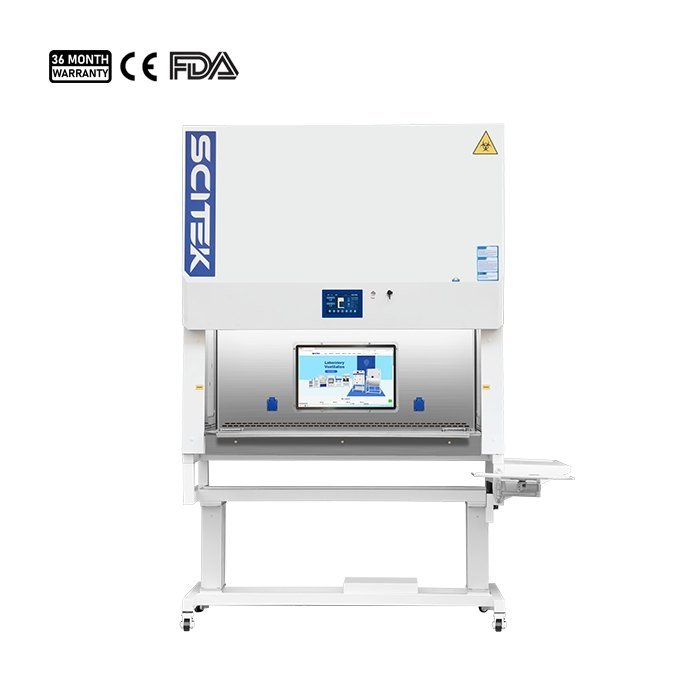

The Class II A2 biosafety cabinet innovatively integrates a built-in, ultra-large 21.5-inch touchscreen control system with an external keyboard and mouse holder, thereby reducing user fatig…
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Biological Safety Cabinet specification across the range. Figures are the manufacturer’s published values.
| Model | BSC-IIA2-1500HE | BSC-IIA2-1800HE | |
|---|---|---|---|
| External Size (W×D×H)(mm) | 1500×780×2130 | 1800×780×2130 | |
| Internal Size (W×D×H)(mm) | 1300×626×600 | 1600×626×600 | |
| Tested Opening | Safety height 200 mm (8”) | ||
| Max.Opening | 600 mm | ||
| Work Surface Height | 800 mm | ||
| Control System | Display | 7" LCD touch screen | |
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, | ||
| Front window at unsafe height | |||
| Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust | |
| Downflow Velocity | 0.35±0.025m/s | ||
| Inflow Velocity | 0.52±0.025m/s | ||
| Inflow Air Volume | 524 m³/h (309 CFM) | 599 m³/h (352.6 CFM) | |
| Downflow Air Volume | 1058 m³/h (623 CFM) | 1262 m³/h (742.8 CFM) | |
| Exhaust Air Volume | 524 m³/h (309 CFM) | 599 m 3 /h (352.6CFM） | |
| Air filtration System | ULPA Filter | 2 pcs ULPA filter ≥99.9995%, efficiency at 0.1–0.3 μm,filter life indicator | |
| Cleanliness Grade | Class 10 (ISO14644.1 Class 4) | ||
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating | |
| Work Surface | 304 stainless steel | ||
| Front Window | Motorized, toughened glass 6 mm. Anti-UV | ||
| It can fully opened with Max 45° | |||
| Side Window | Toughened glass 5 mm. Anti-UV | ||
| Electrical System | UV Lamp | 30 W×1 | 40 W×1 |
| Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer | |||
| LED Lamp | 24 W×2 | 60 W×1+40 W×1 | |
| Max.Consumption | 750 W (Not include socket loading power consumption) | 850 W (Not include socket loading power consumption) | |
| Fan power | 650 W | ||
| Power Supply | AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz | ||
| Illumination | ≥1000 Lux | ||
| Sound Emission | ≤65 dB(A) | ||
| Standard Accessory | 1.Base Stand; | ||
| 2.Air Velocity Sensor; | |||
| 3.ULPA Filter; | |||
| 4.LCD Touch Screen; | |||
| 5.LED Lamp×2; | |||
| 6.UV Lamp×1; | |||
| 7.Waterproof Socket×2; | |||
| 8.Motorized Front Window; | |||
| 9.Two Side Window; | |||
| 10.Footmaster Caster; | |||
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Fulfilling all your expectations for biosafety cabinet configurations！
- Memory function in case of power-failure
- HEPA filter and UV life indicators facilitate a timely replacement plan .
- UV lamp for sterilization.
- Class 1 bsc is equipped with temperature sensor to show the real temperature during operation.
- Waterproof socket provide convenience for small instruments to be used in the operating area.
- Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
- Front sliding sash interlock with fan and UV lamp
Applications
Where it is used
- The Class I biological safety cabinet can also be used as Balance Weighing Hood, it’s designed for the safe weighing of highly active drugs and liquids. It is mainly used for weighing experiments involving dust, liquids, or mixtures of dust and liquid.
- Microbiology (non-pathogenic)
- Sterile product compounding
