Home/Products/Scitek Global/Benchtop Dissolved Oxygen Meter
Weighing & measurement

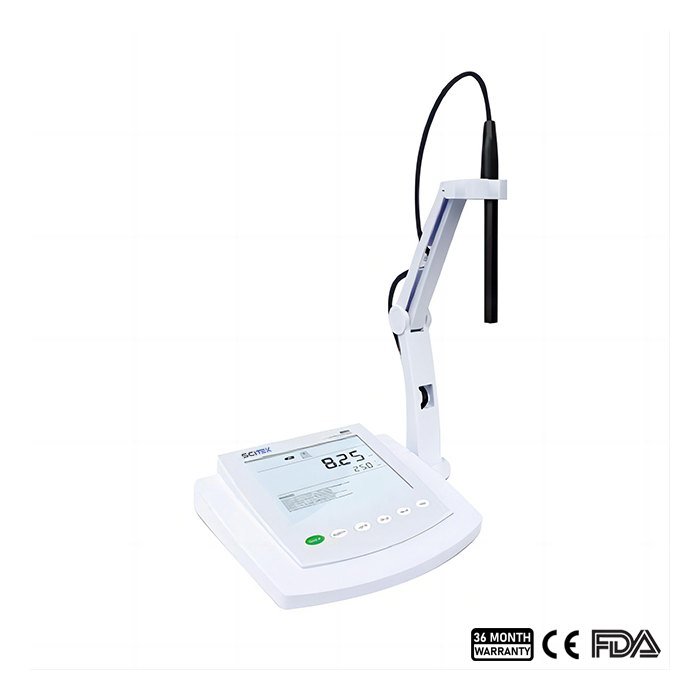

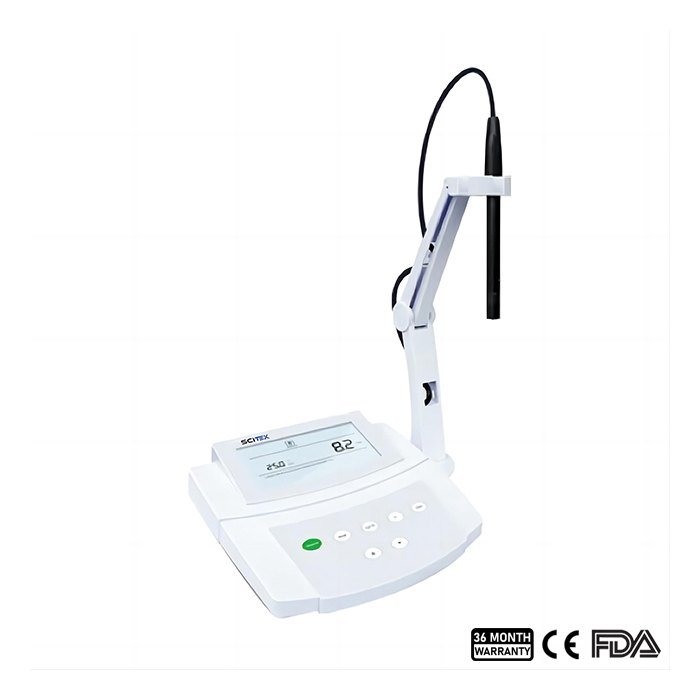

Benchtop Dissolved Oxygen Meter
- Models
- DO-B100; DO-B810; DO-B980; DO-B100T
- DO — Range
- 0-20.00 mg/L (ppm), 0-200.0 %
- DO — Accuracy/Resolution
- ± 0.30 mg/L; 0.01 or 0.1 mg/L
- DO — ATC range
- (0 - 50)℃ automatically
- DO — Salinity Compensation
- 0~45 ppt manual
This benchtop dissolved oxygen meter is widely used in laboratories, water treatment plants, aquaculture, etc.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Benchtop Dissolved Oxygen Meter specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| DO-B100 — Benchtop Dissolved Oxygen Meter, Automatic Calibration | |
| DO — Range | 0-20.00 mg/L (ppm), 0-200.0 % |
| DO — Accuracy/Resolution | ± 0.30 mg/L; 0.01 or 0.1 mg/L |
| DO — ATC range | (0 - 50)℃ automatically |
| DO — Salinity Compensation | 0~45 ppt manual |
| DO — Barometric Compensation | 0~200 kPa automatically |
| Temperature — Range | -9.9℃~130℃ (14.1~266)℉ |
| Temperature — Resolution/Accuracy | 0.1℃; ±0.2℃ |
| Data Storage | 450groups |
| Data Output | 1. USB to Flash Disk |
| Data Output | 2. Wireless connection to printer (the printer is optional) |
| Power Supply | DC12V |
| Packing Including | 1. DO-B100 Meter |
| Packing Including | 2. DO01-2M Polarographic DO probe, cable length: 2m |
| Packing Including | 3. DOS-01 Membrane refill solution: 30mL,1pc |
| Packing Including | 4. DOSC Sensor caps: 3pcs/group, 1pkg |
| Packing Including | 5. F01 Flexible probe Holder: 1pc |
| Packing Including | 6. A01 Power adaptor: 1pc |
| Shipping Size (WxDxH)(mm) | 330x540x130 |
| N.W. / G.W. (kg) | 1.6 / 2.1 |
| DO-B810 — Benchtop Dissolved Oxygen Meter B810 | |
| DO — Range | 0.0-20.0mg/L or ppm |
| DO — Resolution | 0.1mg/L |
| DO — Accuracy | ±0.5mg/L |
| Saturation — Range | 0.0~200.0% |
| Saturation — Resolution | 0.001 |
| Saturation — Accuracy | ±2.0% |
| Temperature — Range | 0~60°C/32~140°F |
| Temperature — Resolution | 0.1°C/0.1°F |
| Temperature — Accuracy | ±1°C/±1.8°F |
| Temperature — Offset Calibration | 1 point, reading ±10℃ |
| Other Specifications — Dissolved Oxygen Calibration | 1 or 2 points |
| Other Specifications — Temperature Compensation | 0~40°C, automatic |
| Other Specifications — Barometric Pressure Correction | 60.0~112.5kPa/450-850mmHg. manual |
| Other Specifications — Salinity Correction | 0.0-35.0g/L, manual |
| Other Specifications — Stability Criteria | 一 |
| Other Specifications — Calibration Due Alarm | 一 |
| Other Specifications — Hold Function | Manual or auto-endpoint |
| Other Specifications — Memory | 一 |
| Other Specifications — Communication Interface | 一 |
| Other Specifications — Connector | 6-pin nimi-DIN |
| Other Specifications — Display | Custom LCD(120×60mm) |
| Other Specifications — Power Requirements | DC9V power adapter |
| Other Specifications — Sizes (W×D×H) | 210×205×75 |
| Other Specifications — Shipping Size (W×D×H)(mm) | 300x250x200 |
| Other Specifications — N.W./G.W. (kg) | 1.5/2 |
| DO-B980 — Benchtop Dissolved Oxygen Meter B980 | |
| DO — Range | 0.00-20.00mg/L or ppm |
| DO — Resolution | 0.01,0.1mgL, selectable |
| DO — Accuracy | ±0.2mg/L |
| Saturation — Range | 0.0-200.0% |
| Saturation — Resolution | 0.1,1%, selectable |
| Saturation — Accuracy | ±2.0% |
| Temperature — Range | 0~60°C/32~140°F |
| Temperature — Resolution | 0.1°C/0.1°F |
| Temperature — Accuracy | ±0.5°C/±0.9°F |
| Temperature — Offset Calibration | 1 point, reading ±10℃ |
| Other Specifications — Dissolved Oxygen Calibration | 1 or 2 points |
| Other Specifications — Temperature Compensation | 0~50°C, automatic |
| Other Specifications — Barometric Pressure Correction | 60.0-112.5kPa/450-850mmHg, manual |
| Other Specifications — Salinity Correction | 0.0-50.0g/L, manual |
| Other Specifications — Stability Criteria | Low or high |
| Other Specifications — Calibration Due Alarm | 1 to 31 days or off |
| Other Specifications — Hold Function | Manual or auto-endpoint |
| Other Specifications — Memory | 500 data sets |
| Other Specifications — Communication Interface | USB |
| Other Specifications — Connector | 6-pin nimi-DIN |
| Other Specifications — Display | Custom LCD (125×100mm) |
| Other Specifications — Power Requirements | DC5V power adapter |
| Other Specifications — Sizes(W×D×H) | 210×188×60 |
| Other Specifications — Shipping Size (W×D×H)(mm) | 300x250x200 |
| Other Specifications — N.W./G.W. (kg) | 1.5/2 |

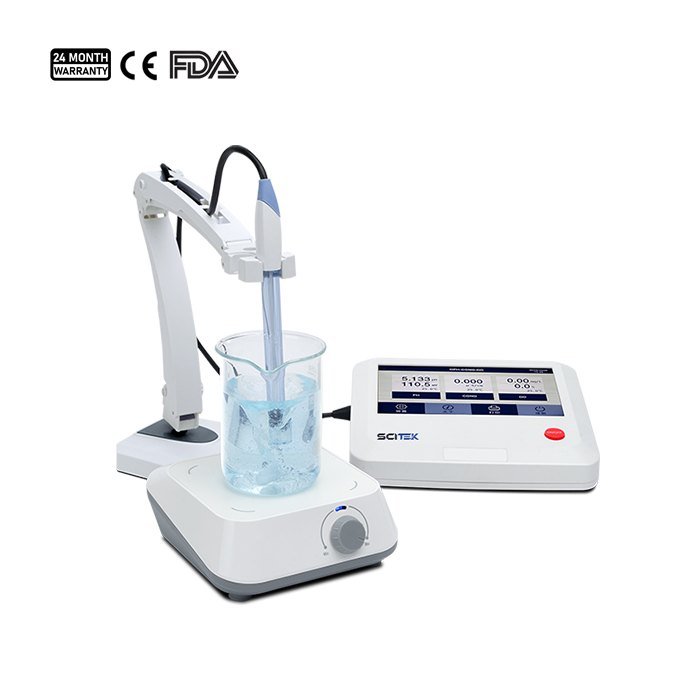

| DO-B100T — Benchtop Dissolved Oxygen Meter, Touch-screen | |
| DO — Range | 0-20.00 mg/L (ppm), 0-200.0 % |
| DO — Accuracy/Resolution | ± 0.30 mg/L; 0.01 or 0.1 mg/L |
| DO — ATC Range | (0 - 50)℃ automatically |
| DO — Salinity Compensation | 0~45 ppt manual |
| DO — Barometric Compensation | 0~200 kPa automatically |
| mV (ORP Probe Optional) — Range | -1, 999mV -+1, 999mV |
| mV (ORP Probe Optional) — Resolution | ± 0.1/1mV |
| mV (ORP Probe Optional) — Accuracy | ±0.03% FS ±1digit |
| Temperature — Range | -10.0~135℃(14.0~275.0)℉ |
| Temperature — Resolution/Accuracy | 0.1℃; ±0.2℃ |
| Data Storage | 5000 groups |
| Data Output | 1. USB to Flash Disk |
| Data Output | 2. USB to PC |
| Data Output | 3. Wireless connection to printer (the printer is optional) |
| Power Supply | DC12V |
| Packing Including | 1. DO-B100T Meter |
| Packing Including | 2. DO01-2M Polarographic DO probe, cable length: 2m |
| Packing Including | 3. DOS-01 Membrane refill solution: 30mL, 1pc |
| Packing Including | 4. DOSC Sensor caps: 3pcs/group, 1pkg |
| Packing Including | 5. F01 Flexible probe holder: 1pc |
| Packing Including | 6. Magnetic stirrer: 1pc |
| Packing Including | 7. PC cable: 1pc |
| Packing Including | 8. A01 Power adaptor |
| Shipping Size (WxDxH)(mm) | 430x600x130 |
| N.W. / G.W. (kg) | 2.1 / 3 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- High-resolution LCD display screen.
- With built-in microprocessor chip, automatic calibration, automatic temperature compensation, data storage, parameter setup, etc.
- Automatic calibration, self-diagnosis.
- Fast response, high accuracy, stable reading display.
- Calibration points: DO: 100% Oxygen or Zero oxygen calibration.
- Each kit comes with a polarographic type DO probe and 3pcs replaceable sensor caps.
- IP54 dustproof and spillproof.
- The measurement accuracy of 0.5mg/L can meet most of the experimental needs. In addition, salinity and atmospheric pressure are compensated to eliminate measurement errors.
- Dissolved oxygen meter's sensor is susceptible and accurate.
- Dissolved oxygen meter is calibrated with zero oxygen solution and air-saturated water to ensure calibration reliability.
