Automated Bacterial Colony Counter
- Models
- BCC-A01; BCC-A02; BCC-A03; BCC-A03H
- Petri Dish Range (Dia.)
- 60–110 mm
- Counting Area
- Circle, Square, Polygon
- Pixel
- 6.3 million
- High Resolution Lens
- 3 MP

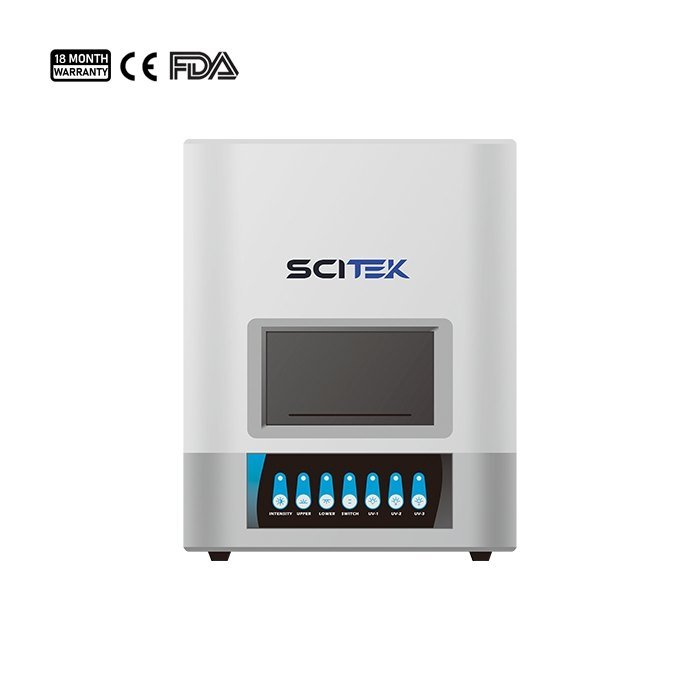

The fully automatic colony counter employs a fully enclosed dark chamber imaging system, completely eliminating the impact of stray light on imaging quality.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Automated Bacterial Colony Counter specification across the range. Figures are the manufacturer’s published values.
| Model | BCC-A01 | BCC-A02 | BCC-A03 | BCC-A03H |
|---|---|---|---|---|
| Petri Dish Range (Dia.) | 60–110 mm | 60–110 mm | 60–110 mm | 60–110 mm |
| Light Source | Upper and lower LED light sources, with 3 reserved positions for installing narrowband ultraviolet wavelength light sources | Upper and lower LED light sources, equipped with 254 nm narrowband ultraviolet light sources, with 2 reserved positions for installing narrowband ultraviolet light sources | Upper and lower LED light sources, equipped with narrowband ultraviolet light sources with common wavelengths of 254 nm, 366 nm, and 302 nm | Upper and lower LED light sources, equipped with narrowband ultraviolet light sources with common wavelengths of 254 nm, 366 nm, and 302 nm |
| Counting Area | Circle, Square, Polygon | Circle, Square, Polygon | Circle, Square, Polygon | Circle, Square, Polygon |
| Pixel | 6.3 million | 12 million | 12 million | 20 million |
| High Resolution Lens | 3 MP | 5 MP | 5 MP | 5 MP |
| UV Inner Chamber for Ultraviolet Disinfection | / | Standard | Standard | Standard |
| AI Artificial Intelligence Recognition | / | / | Standard | Standard |
| Four-Tier Architecture of Data Management "operation, review, management, and system" | Standard | Standard | Standard | Standard |
| Audit Trail | Standard | Standard | Standard | Standard |
| Water Quality Test Result Calculator | / | Standard | Standard | Standard |
| Food Test Result Calculator | / | / | Standard | Standard |
| Power Supply | AC 220 V, 50 Hz | AC 220 V, 50 Hz | AC 220 V, 50 Hz | AC 220 V, 50 Hz |
| Size(mm) | 360×475×445 | 360×475×445 | 360×475×445 | 360×475×445 |
| Shipping Size(mm) | 610×560×600 | 610×560×600 | 610×560×600 | 610×560×600 |
| N.W./G.W(kg) | 20/26 | 20/26 | 20/26 | 20/26 |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Fully enclosed steel imaging box: The inner walls are blackened and frosted to eliminate reflections, hotspots, and optical artifacts. It features excellent sealing performance, effectively eliminating interference from other stray light sources.
- Sample imaging tray: made of high transparency, high-quality, ultra white optical glass, capable of supporting petri dishes with a maximum diameter of 110 mm.
- Imaging box door: It adopts an up-and-down sliding aluminum alloy partition door, which is professionally sealed to completely isolate light. It also contains sliding damping components, and the door panel can stay at any opening degree.
- Control panel: contains 7 control buttons, including light intensity, upper light source, lower light source, switch, UV-01, UV-02, and UV-03. The upper and lower light sources can be turned on and off separately; It can also be opened and closed simultaneously; The light intensity can be adjusted in two levels: high and low for the upper light source, and high and low for the lower light source.
- Data interface: Dustproof independent USB 3.0 interface.
- Whole dish colony statistics: can directly display 6 items of information, including measured area, total colony count, inner diameter of the dish, colony count converted by inner diameter, sample dilution, and colony count converted by dilution.
- Integrated ColonyAnalyze Software: ColonyAnalyze software has multiple built-in algorithms that can recognize and perform complex statistics on different colored culture media and colonies with different characteristics. It also has a sensitivity adjustment button, allowing users to achieve the desired statistical effect by adjusting sensitivity. Its functions include:
- (1)Statistical Region: ColonyAnalyze software can achieve the function of selecting statistical areas for circles, squares, and polygons. Users can select different shapes to calculate the required petri dish areas.
- (2)Adhesive segmentation: ColonyAnalyze software has a adhesion segmentation function, which can manually segment adhered colonies to make statistical results more accurate.
- (3)Region deletion: The ColoniAnalyze software has a region deletion function. It enables manual selection of specific regions to exclude colonies that should not be counted, thereby isolating the area of interest for accurate quantification.
