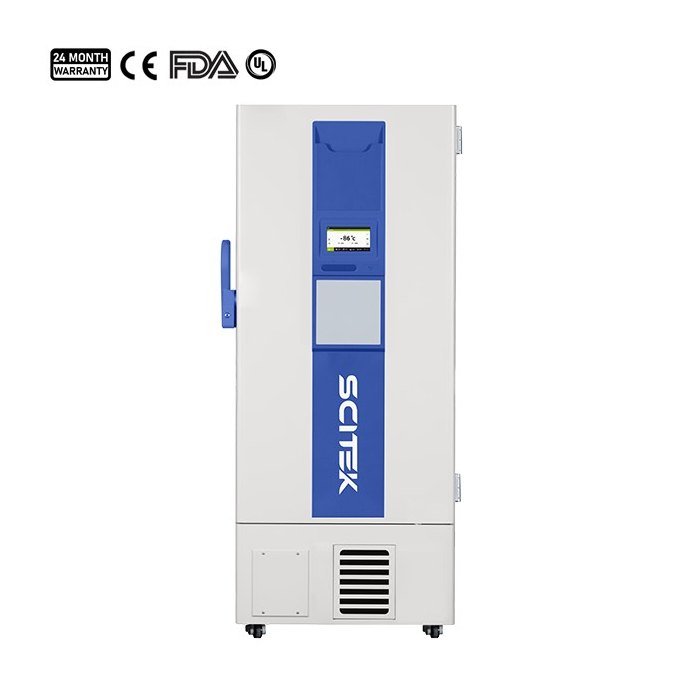

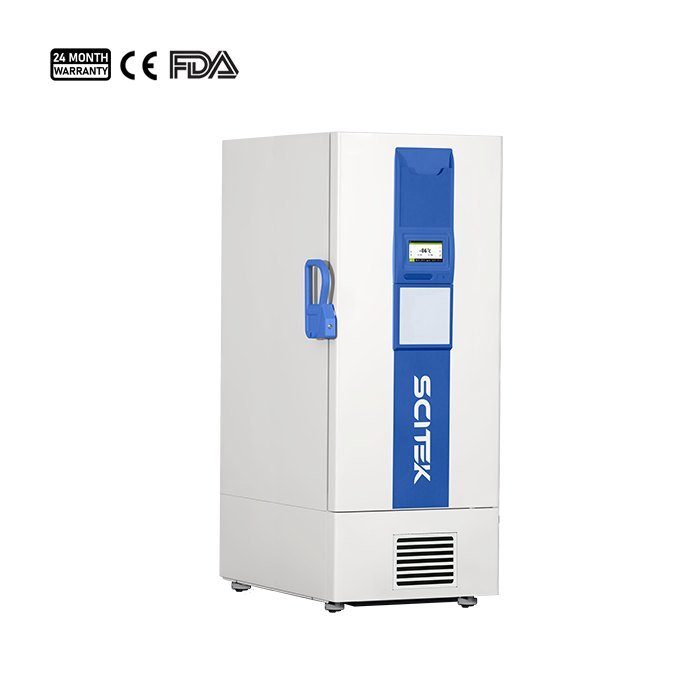

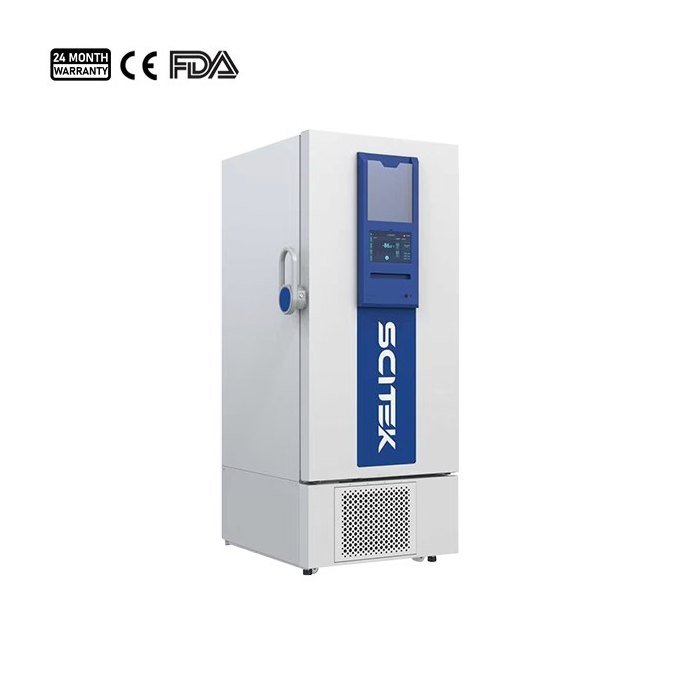

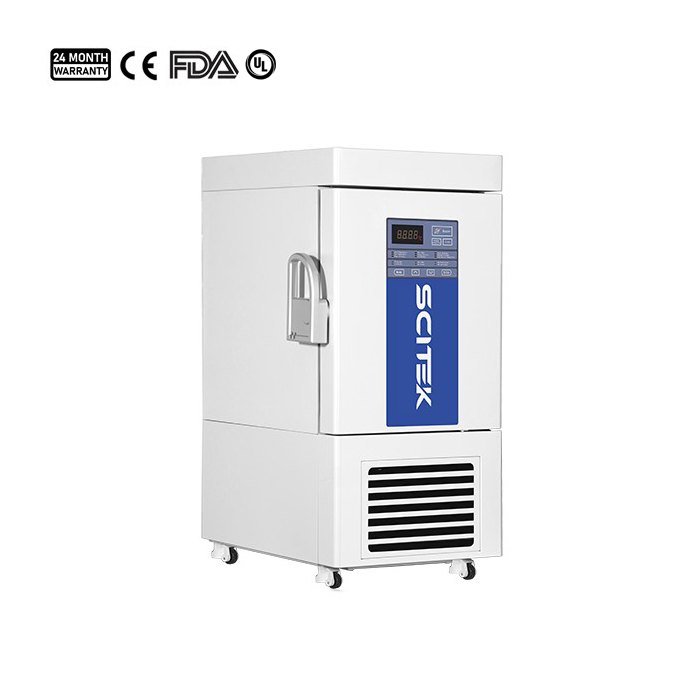

-86°C Freezer
- Models
- UFZ-86V340; UFZ-86V410; UFZ-86V590; UFZ-86V730; UFZ-86V840
- Capacity (L)
- 338
- Size (WxDxH) (mm)
- Internal
- External
- 854x1072x1907
- Temperature
- Range (℃) at RT.10~32℃
Scitek is your trusted quality ultra low temperature freezer manufacturer.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
-86°C Freezer specification across the range. Figures are the manufacturer’s published values.
| Model | UFZ-86V340 | UFZ-86V410 | UFZ-86V590 | UFZ-86V730 | UFZ-86V840 | |
|---|---|---|---|---|---|---|
| Capacity (L) | 338 | 408 | 588 | 728 | 838 | |
| Size (WxDxH) (mm) | Internal | 488x607x1140 | 606x575x1180 | 606x738x1310 | 963x571x1350 | 894x718x1310 |
| External | 854x1072x1907 | 891x992x1945 | 891x1155x1994 | 1248x975x1994 | 1179x1135x1994 | |
| Temperature | Range (℃) at RT.10~32℃ | -40~-86 | -40~-86 | -40~-86 | -40~-86 | -40~-86 |
| Sensor | PTC | PTC | PTC | PTC | PTC | |
| Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | HC(CFC Free) | HC(CFC Free) | HC(CFC Free) | HC(CFC Free) | HC(CFC Free) |
| Defrost | Manual | Manual | Manual | Manual | Manual | |
| Compressor (Qty) | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 | SECOP/2 | |
| Display | LCD display | LCD display | LCD display | LCD display | LCD display | |
| Audible & Visible Alarm | High/Low temperature, High ambient temperature, Sensor error, Abnormal voltage, Low battery, Door ajar, 72h Power failure backup system(alarm) | |||||
| Material | Internal | Stainless steel, grade 304 | ||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||
| Inner Door | Stainless steel, grade 304 | |||||
| Accessories | Standard | USB port, Casters, Remote alarm port, 25 Test hole | ||||
| Optional | Data logger, Back up system (CO₂/LN₂) | |||||
| Chart Recorder | Optional | Optional | Optional | Optional | Optional | |
| Shelves / Drawers (Qty) | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 | Shelves/3 | |
| Optional Frozen Racks (Qty) | Racks | 12(4x4) | 8(5x4)+8(4x4) | 16(5x5) | 18(5x4)+6(6x4) | 24(5x5) |
| Boxes (2 Inches) | 192 | 288 | 400 | 504 | 600 | |
| Samples (2ml) | 19200 | 28800 | 40000 | 50400 | 60000 | |
| Sound Emission (dB) | 50 | 50 | 53 | 53 | 53 | |
| Electricity | Voltage / Frequency | AC110/220V±10%, 50/60Hz | ||||
| Consumption | 14.13KWh/24h | 16.21KWh/24h | 14.95KWh/24h | 15.99KWh/24h | 17.07KWh/24h | |
| N.W./G.W. (Kg) | 286/306 | 292/317 | 307/368 | 360/401 | 397/430 | |
| Shipping Size (WxDxH) (mm) | 950x1080x2190 | 954x955x2094 | 970x1138x2185 | 1320x970x2185 | 1262x1098x2185 | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Accurate microprocessor-controlled system ensures temperature range of -86℃ to -40℃ for chamber space with 1℃ increment.
- Powerful cooling system with unique design supports rapidly temperature decrease.
- Safety inner door design gives more tight seal for freezer. Allow users to suit needs together with adjustable shelves.
- Chamber material made by 304 stainless steel for friendly cleaning.
- Safety password protected control panel prevents unauthorized system modification.
- Audible buzzer and visible flashing temperature alarm system for high/low temperature, sensor error, thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm.
- Door lock for storage safety.
- Upright door with limit door hinge prevents collision when door opens.
