Home/Products/Scitek Global/-40°C Freezer
Heating, cooling & storage

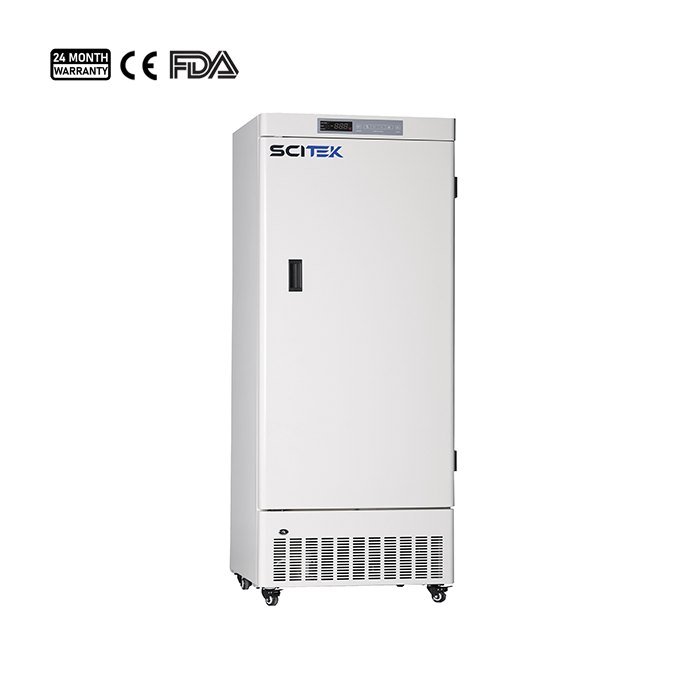

-40°C Freezer
- Models
- FZ-40V270E; FZ-40V280E; FZ-40V330E; FZ-40V360; RFZ-40V370; FZ-40V530; FZ-40V1000
- Capacity (L)
- 268
- Size (WxDxH)(mm)
- Internal
- External
- 673x676x1630
- Temperature Range (℃) at RT. 10~32℃
- -20~-40
Scitek's -40°C ultra low freezer with a capacity of 268 - 936L offers high performance for safer and more reliable long-term material storage.
Added to your inquiry list. It travels with your next quote request.
7 models
Product Description
-40°C Freezer specification across the range. Figures are the manufacturer’s published values.
| Model | FZ-40V270E | FZ-40V280E | FZ-40V330E | FZ-40V360 | RFZ-40V370 | FZ-40V530 | FZ-40V1000 | |
|---|---|---|---|---|---|---|---|---|
| Capacity (L) | 268 | 278 | 328 | 358 | 368 | 528 | 936 | |
| Size (WxDxH)(mm) | Internal | 508x455x1137 | 480x415x1460 | 508x455x1393 | (466x636x625)x2 | F:580x626x625 R:466x636x625 | (651x631.5x635)x2 | 1000x700x1335 |
| External | 673x676x1630 | 659x600x1694 | 673x676x1886 | 720x830x1870 | 720x830x1870 | 900x818x1875 | 1304x1000x2017 | |
| Temperature Range (℃) at RT. 10~32℃ | -20~-40 | -20~-40 | -20~-40 | -20~-40 | F: -20~-40 R: 2~8 | -20~-40 | -25~-40 | |
| Sensor | NTC | NTC | NTC | NTC | NTC | NTC | PTC | |
| Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
| Cooling Stystem | Refrigerant | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) |
| Defrost | Manual | Manual | Manual | Manual | Manual | Manual | Manual | |
| Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/2 | CUBIGEL/1 HUAYI/1 | CUBIGEL/1 | SECOP/2 | |
| Display | Door ajar | Door ajar | Door ajar | Door ajar | Door ajar | Door ajar | Door ajar | |
| Audible & Visible Alarm | Standard | High/Low temperature, Sensor error | ||||||
| High Ambient Temperature | / | / | / | Standard | Standard | Standard | Standard | |
| Low Battery | / | / | / | / | / | / | Standard | |
| Power Failure Backup System(alarm) | 8h | / | 8h | 8h | 8h | 8h | 72h | |
| Material | Internal | Electro-galvanized steel with antimicrobial powder coating | Stainless steel grade 304 | |||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||||
| Accessories | USB Port | / | / | / | Standard | Standard | Standard | Standard |
| Casters | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Remote Alarm Port | Standard | / | Standard | Optional | Optional | Standard | Standard | |
| Test Hole (Qty / Diameter (mm) | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | 2/20 | |
| Shelves / Drawers (Qty) | Shelves/3 | Drawers/7 | Shelves/4 | Shelves/4 Drawers/12 | Shelves/2 Drawers/6 | Shelves/4 Drawers/18 | Shelves/3 | |
| Sound Emission (dB) | 48 | 50 | 48 | 49 | 50 | 55 | 50 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | ||||||
| Consumption (W) | 300 | 280 | 300 | 310 | 430 | 340 | 1000 | |
| N.W./G.W. (Kg) | 98.5/118 | 79/104.5 | 110.3/132 | 138/178 | 137/166 | 151/184 | 372/416 | |
| Shipping Size (WxDxH) (mm) | 760x760x1750 | 725x665x1850 | 750x760x2030 | 780x920x1990 | 775x920x1990 | 930x970x2000 | 1360x1135x2170 | |
Specification published by Scitek Global. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Clear LED screen and control panel support easy display and operation.
- Lockable universal caster wheels.
- Inner doors or drawer design makes separated storage possible.
- Eco friendly CFC-free refrigerant also save energy.
- Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, sensor error, door ajar, thermostat failure alarm.
- Safety password protected control panel prevents unauthorized system modification.
- Door lock for storage safety.
- Upright door with limit door hinge prevents collision when door opens.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
