Spectroscopy
Visible Spectrophotometer
- Models
- LVS-A10; LVS-A11; LVS-A12; LVS-A20; LVS-A30
- Wavelength Range
- 320 to 1020nm
- Spectral Bandwidth
- 5nm
- Wavelength Accuracy
- ±2nm
- Wavelength Repeatability
- ≤1nm
Labtron supplies highly accurate visible spectrophotometers. The LVS-A10 features a 320–1020 nm range, 5 nm bandwidth, and a reliable silicon photodiode detector.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Visible Spectrophotometer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LVS-A10 — Visible Spectrophotometer | |
| Wavelength Range | 320 to 1020nm |
| Spectral Bandwidth | 5nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Photometric Range | T: 0 to199.9%, A: -0.3 to2.5 Abs, F; 0 to 9999, C: 0 to 9999 |
| Photometric Accuracy | ± 0.5 % T |
| Photometric Repeatability | ≤ 0.2 % T |
| Detector | Silicon Photodiode |
| Light Source | 20 W, 12 V Tungsten lamp |
| Stray Light | ≤0.3%T |
| Stability | Dark current: ≤ 0.2 % T, Light Current: ≤ 0.5 % T |
| Optical System | Single beam, Czerny-Turner (1200L/mm Grating) |
| Power Requirement | 220 V ± 20 V, 50 Hz ± 1 Hz |
| Dimensions | 420 × 350 × 185 mm |
| Packaging Dimension | 520 × 450 × 320 mm |
| Weight | 8 kg |
| Gross Weight | 12 kg |
| LVS-A11 — Visible Spectrophotometer | |
| Wavelength Range | 320 to 1020 nm |
| Spectral Bandwidth | 5 nm |
| Wavelength Accuracy | ± 2 nm |
| Wavelength Repeatability | Up to 1 nm |
| Optical System | Czerny-Turner (1200L/mm grating) |
| Photometric Range | Transmittance (T) : 0 to 199.9% Absorbance (A): -0.3 to 2.5 Factor (F): 0 to 9999 Concentration (C): 0 to 9999 |
| Photometric Accuracy | ± 0.5 % T |
| Photometric Stability | ± 0.004 /H at 500 nm |
| Detector | Silicon photo diode |
| Light Source | Halogen lamp |
| Stray Light | Up to 0.3% T |
| Display Mode | LED |
| Data Output | RS232 |
| Dimensions | 420 × 350 × 185 mm |
| Packing Dimension | 520 × 450 × 300 mm |
| Net Weight | 6 kg |
| Gross Weight | 8 kg |
| LVS-A12 — Visible Spectrophotometer | |
| Wavelength Range | 340 to 1000nm |
| Spectral Bandwidth | 5 nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Repeatability | ≤ 1 nm |
| Wavelength Setting | Manual Turn Knob |
| Photometry | Single Beam |
| Photometric Range | 0 to 100.0%T 0 to 1.999A 0 to 1999C |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ≤ 0.2%T |
| Noise | 100%（T）noise ≤0.3%(T) 0%（T）noise ≤0.2%(T) |
| Drifting | ±0.5 %T/3min |
| Monochromator Type | Czerny-Turner |
| Detector | Silicon Photocell |
| Cuvette Holder Size | 100mm |
| Light Source | Halogen or Deuterium lamps |
| Stray Light | ≤ 0.5%T (at 360nm NaNO₂) |
| Power Supply | AC220V±22V 50Hz±1Hz, 50W |
| Dimensions (W × D × H) | 400 × 300 × 200 mm |
| Packaging Dimension (W × D × H) | 560 × 500 × 300 mm |
| Net Weight | 13 Kg |
| Gross Weight | 15 Kg |
| LVS-A20 — Visible Spectrophotometer | |
| Photometry | Single Beam |
| Monochromatic Type | Czerny-Turner |
| Wavelength range | 340 to 1000nm |
| Spectral bandwidth | 5 nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Repeatability | ≤ 1 nm |
| Focal length | 160 mm |
| Photometric Range | 0 to 100.0 %T 0 to 1.999 A 0 to 1999 C |
| Photometric Accuracy | ± 0.5 % T |
| Photometric Repeatability | ≤ 0.2 % T |
| Detector | Silicon Photocell |
| Grating | 1200 lines/mm |
| Stray light | ≤ 0.1( at 360nm NaNo2 ) |
| Noise | 100%（T）noise≤0.3%(T) ， 0%（T) noise ≤0.2 %(T) |
| Cuvette holder size | 10 mm |
| Dimension | 580 × 460 × 345 mm |
| Power consumption | 80 W |
| Power supply | AC 220 V±22 V 50Hz ±1 Hz |
| Gross weight | 12.5 kg |

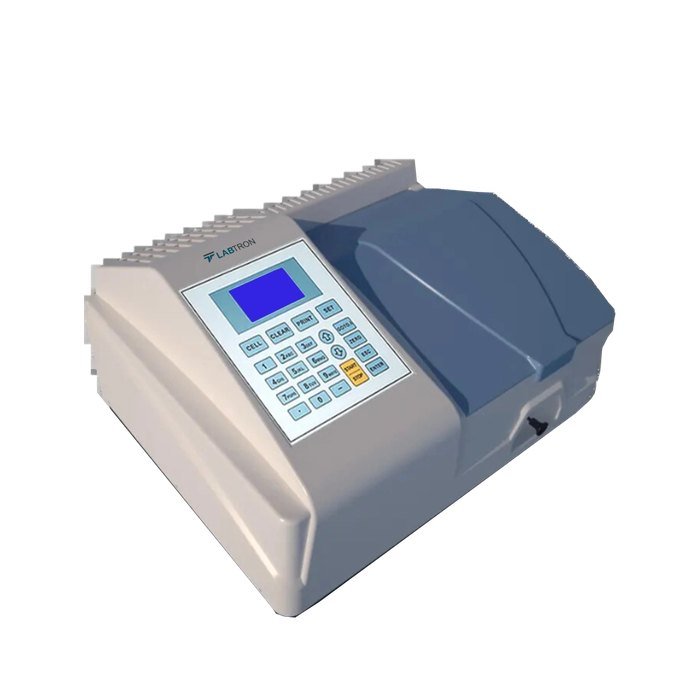

| LVS-A30 — Visible Spectrophotometer | |
| Wavelength range | 320 to 1100 nm |
| Spectral bandwidth | 2.0 nm |
| Wavelength Accuracy | ± 0.8 nm |
| Wavelength Repeatability | ≤ 0.3 nm |
| Optical system | Single beam, blazed holographic Grating (1200 lines/mm) |
| Photometric Range | 0 to 200 %T, -0.3 to 3 A, 0 to 9999 C |
| Photometric Accuracy | ± 0.002A (0 to 0.5A), ±0.004 A (0.5 to 1A), ±0.5 % T (0 to 100% T) |
| Photometric Repeatability | ≤ 0.001A (0 to 0.5 A), ≤0.002A (0.5 to 1A), ≤0.2 % T (0 to 100% T) |
| Detector | Silicon Photocell |
| Stray light | ≤ 0.1% T (220/360 nm) |
| Noise | ≤0.2 % T/3 min (250/500 nm, 0% T), ≤ 0.5% T/3 min (250/500 nm, 100% T) |
| Scan speed | High, Medium, Low, Max. 2000 nm/minute |
| Baseline flatness | ± 0.003 A |
| Stability | ± 0.002 A/h (500 nm, 0A) |
| Sample compartment | Accommodates 5 to 100 nm Path length cuvette |
| Lamps | Tungsten lamp & Deuterium lamp (Pre-aligned) |
| Display | Graphic LCD (128 × 64 Dots) |
| Keyboard | 22 key Numeric membrane keyboard |
| Output Port | USB Port & RS232 Port |
| Printer | Mini Serial Printer, PC printer |
| PC software | Optional PC scanning software |
| Dimension | 490 × 390 × 280 mm |
| Power supply | AC 90 to 250 V, 50/60 Hz |
| Gross weight | 16 kg |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Manual wavelength adjustment
- Simple design
- LED display
- User-friendly operation
- RS232 for PC data transfer
- Imported Tungsten lamp
- RS232 interface for data transfer
- Direct concentration readout function
Applications
Where it is used
- Visible Spectrophotometer LVS-A10 is used in various industries, including biochemical, environmental, food, medical, and petrochemical sectors for quantitative and qualitative analysis.
- Our Visible Spectrophotometer LVS-A11 is used in universities and colleges, and for environmental monitoring & control in food and beverage production and quality control, and agricultural monitoring.
- Our Visible Spectrophotometer LVS-A12 is suitable for laboratory and teaching environments, making it ideal for instruction, basic research, and quality control.
- Visible Spectrophotometer is used in high requirement for precision measurement in the research and production of organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industries, etc.
- Our Visible Spectrophotometer LVS-A30 is used in high requirement for precision measurement in the research and production of organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industries, etc.
