Shaking Incubator
- Models
- LSI-A11; LSI-A12; LSI-B20; LSI-D10; LSI-D11
- Shaking Speed Range
- 40 to 300 r/min
- Platform Size
- 350 × 350 mm
- Timing Range
- 0 to 5999 min
- Amplitude
- 20 mm
Labtron supplies high performance Shaking Incubator. Our LSI-A11 offers a 40 to 300 r/min shaking speed with a 350 × 350 mm platform for holding multiple samples, and a large window for easy…
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Shaking Incubator specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LSI-A11 — Shaking Incubator | |
| Shaking Speed Range | 40 to 300 r/min |
| Platform Size | 350 × 350 mm |
| Timing Range | 0 to 5999 min |
| Amplitude | 20 mm |
| Temperature Range | RT+5 to 65℃ |
| Display Resolution | 0.1℃ |
| Default Platform | Spring wire racks |
| Electrical Requirement | 220V 50Hz |
| Power Consumption | 650 W |
| Dimension | 790 × 650 × 650 mm |
| Net Weight | 40 Kg |
| Gross Weight | 62 Kg |
| LSI-A12 — Shaking Incubator | |
| Shaking Speed Range | 40 to 300 rpm |
| Platform Size | 370 × 340 mm |
| Display Resolution | 0.1 ℃ |
| Temperature Range | Room temperature +5 ℃ to 50 ℃ |
| Timing Range | 1 to 5999 minutes |
| Amplitude | 20 mm |
| Power Consumption | 500 W |
| Power | 220 V, 50 Hz |

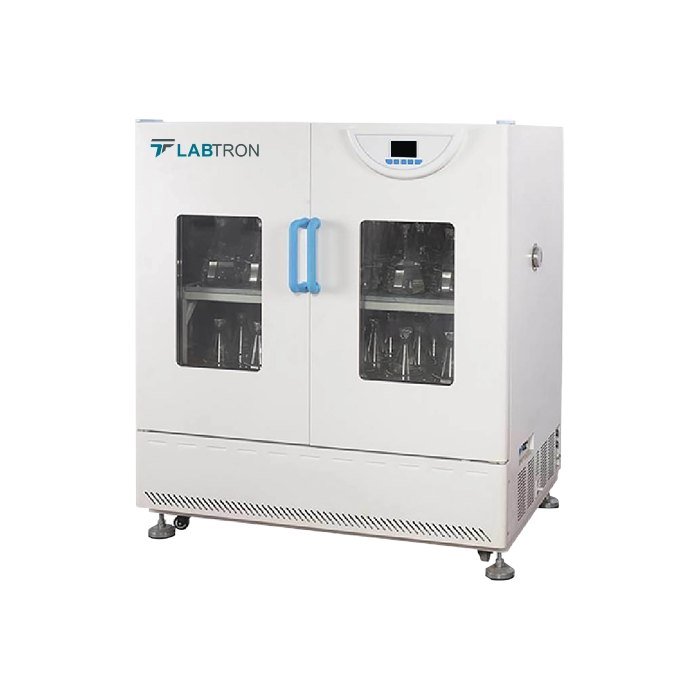

| LSI-B20 — Shaking Incubator | |
| Type | Double deck; Floor-type |
| Shaking speed range | 40 to 300 r/min |
| Amplitude | 26 mm |
| Temperature range | RT +5°C to 65°C |
| Display resolution | 0.1°C |
| Time range | 0 to 5999 min |
| Controller | Microprocessor |
| Display | LCD |
| Connection hole | 25 mm instruction connection hole |
| Chamber | 304 Stainless-steel |
| Platform | Stainless steel; 2 pcs. |
| Power supply | 220 V 50 Hz |
| Power | 1900 W |
| Platform dimension (L×B) | 750×460 mm |

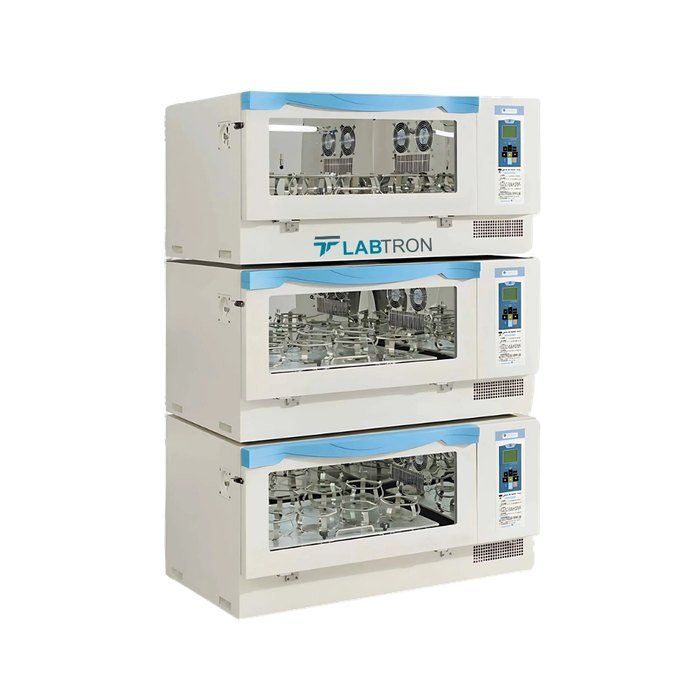

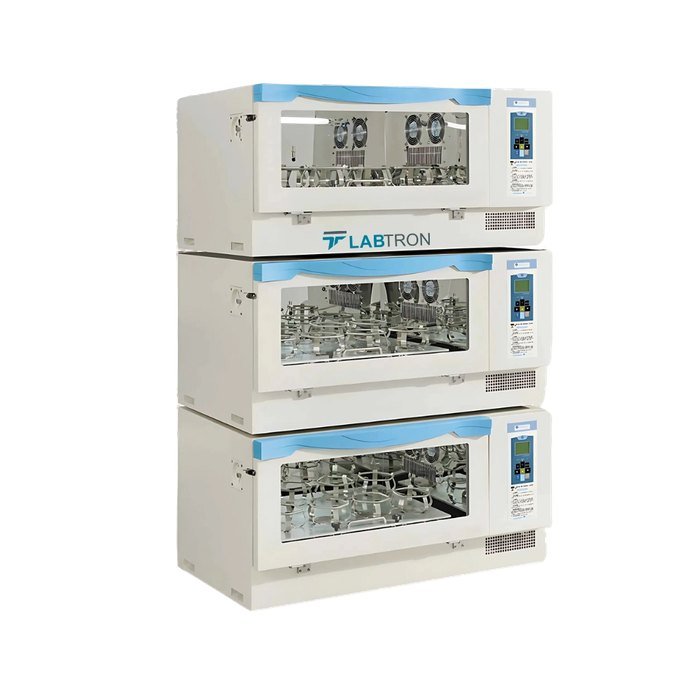

| LSI-D10 — Shaking Incubator (Stack Type) | |
| Display | LCD |
| Circulation Mode | Forced convection |
| Shaking Mode | Rotatory Shaking |
| Drive Mode | Unishaft drive |
| Temperature Range | 4 °C to 60 °C |
| Temperature Accuracy | ± 0.1 °C |
| Temperature Uniformity | ± 0.25 °C |
| Rotating Speed | 50 to 300 rpm |
| Rotating Accuracy | ± 1 rpm |
| Vibration Range | Φ 25 mm |
| Refrigerant | CFC-Free, 134 A |
| Cooling Consumption | 200 W |
| Heating Consumption | 800 W |
| Timing Range | 0 to 500 hours |
| Shaking Plate Size | 850×560 mm |
| Standard Capacity | 250ml × 40 |
| Maximum Capacity | 2000 ml × 12 or 1000 ml × 18 or 500 ml × 35 or 250 ml × 40 |
| Internal Material | Mirror stainless steel |
| External Material | Cold-rolled steel with anti-bacteria power coating |
| Safety function | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection |
| Consumption | 1120 W |
| Power Supply | AC 110 V / 220 V ± 10 %, 50 / 60 Hz |
| Internal Size | 870×550×395 (per unit) mm |
| External Size | 1300×910×980 mm (per unit) |
| Package Size | 1400×1010×1130 mm (per unit) |
| Gross Weight | 410 kg (per unit) |
| LSI-D11 — Shaking Incubator (Stack Type) | |
| Display | LCD |
| Circulation Mode | Forced convection |
| Shaking Mode | Rotatory Shaking |
| Drive Mode | Unishaft drive |
| Temperature Range | RT + 5 °C to 60 °C |
| Temperature Accuracy | ± 0.1 °C |
| Temperature Uniformity | ± 0.25 °C |
| Rotating Speed | 50 to 300 rpm |
| Rotating Accuracy | ± 1 rpm |
| Vibration Range | Φ 25 mm |
| Refrigerant | / |
| Cooling Consumption | / |
| Heating Consumption | 800 W |
| Timing Range | 0 to 500 hours |
| Shaking Plate Size | 850×560 mm |
| Standard Capacity | 250ml × 40 |
| Maximum Capacity | 2000 ml × 12 or 1000 ml × 18 or 500 ml × 35 or 250 ml × 40 |
| Internal Material | Mirror stainless steel |
| External Material | Cold-rolled steel with anti-bacteria power coating |
| Safety function | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection |
| Consumption | 960 W |
| Power Supply | AC 110 V / 220 V ± 10 %, 50 / 60 Hz |
| Internal Size | 870×550×395 (per unit) mm |
| External Size | 1300×910×980 mm (per unit) |
| Package Size | 1400×1010×1130 mm (per unit) |
| Gross Weight | 410 kg (per unit) |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Large LCD screen
- Self-check function
- Automatic fan speed control
- Filter blocks
- DC brushless motor
- Large LCD screen to display multi functions
- Equipped with stainless-steel chamber and platform for easy cleaning
- Microprocessor PID controller with timing function
Applications
Where it is used
- Shaking Incubator LSI-A11 is ideal for research involving bacteria cultivation, fermentation, hybridization, and biochemical reactions that need precise control of shaking speed and temperature.
