Sample prep & stability

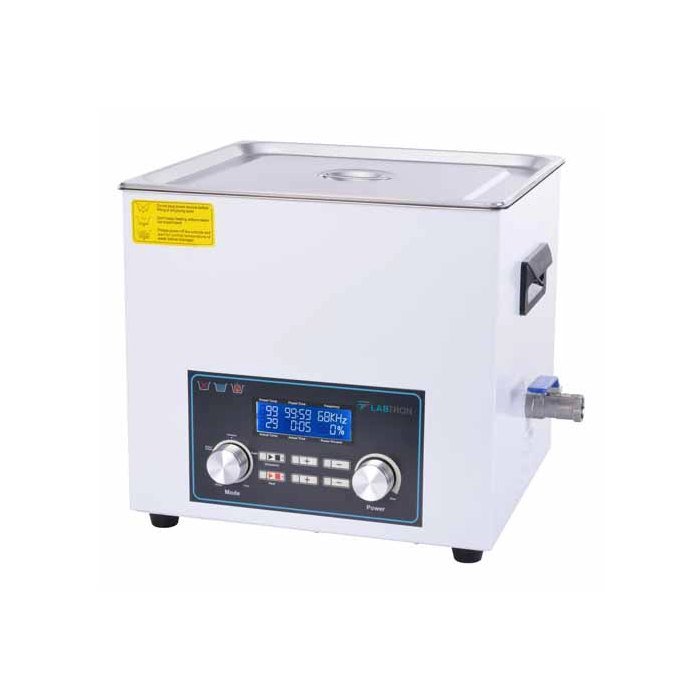

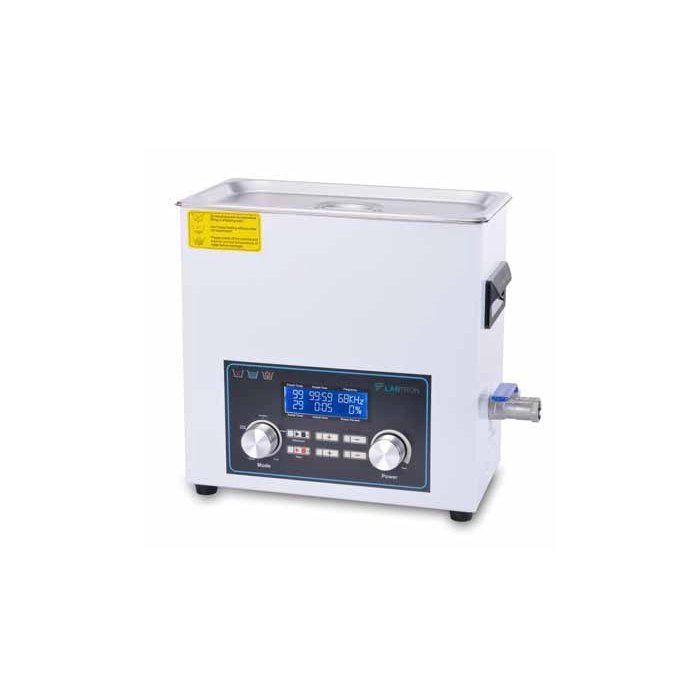

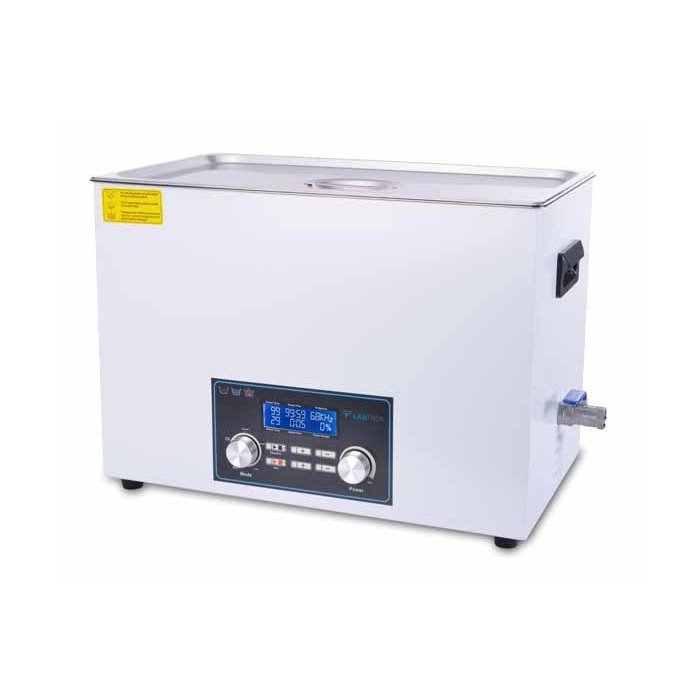

Multifunction Ultrasonic Cleaner
- Models
- LMFU-A10; LMFU-A11; LMFU-A12; LMFU-A13; LMFU-A14
- Capacity
- 6.5 L
- Tank size ( L x W x H )
- 300 x 155 x 150 mm
- Overall size ( L x W x H )
- 330 x 180 x 357 mm
- Ultrasonic power
- 0 ~ 180 W
We provide Multifunctional Ultrasonic Cleaner LMFU-A10, which offers a 6.5 L stainless steel chamber with an advanced auto memory save option on power cut for efficient data retrieval to ens…
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Multifunction Ultrasonic Cleaner specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LMFU-A10 — Multifunctional Ultrasonic Cleaner | |
| Capacity | 6.5 L |
| Tank size ( L x W x H ) | 300 x 155 x 150 mm |
| Overall size ( L x W x H ) | 330 x 180 x 357 mm |
| Ultrasonic power | 0 ~ 180 W |
| Heater power | 300 W |
| Temperature set | 0 °C ~ 100 °C |
| Timer | 1 ~ 99 mins ( optional : always ON ) |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| LMFU-A11 — Multifunctional Ultrasonic Cleaner | |
| Capacity | 10 L |
| Tank size ( L x W x H ) | 300 x 240 x 150 mm |
| Overall size ( L x W x H ) | 330 x 270 x 357 mm |
| Ultrasonic power | 0 ~ 240 W |
| Heater power | 300 W |
| Temperature set | 0 °C ~ 100 °C |
| Timer | 1 ~ 99 mins ( optional : always ON ) |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| LMFU-A12 — Multifunctional Ultrasonic Cleaner | |
| Capacity | 15 L |
| Tank size ( L x W x H ) | 330 x 300 x 150 mm |
| Overall size ( L x W x H ) | 360 x 330 x 357 mm |
| Ultrasonic power | 0 ~ 360 W |
| Frequency | 40 KHz |
| Heater power | 400 W |
| Temperature set | 0 °C ~ 100 °C |
| Timer | 1 ~ 99 mins ( optional : always ON ) |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| Weight | 12 Kg |
| LMFU-A13 — Multifunctional Ultrasonic Cleaner | |
| Capacity | 22 L |
| Tank size ( L x W x H ) | 500 x 300 x 150 mm |
| Overall size ( L x W x H ) | 500 x 330 x 357 mm |
| Ultrasonic power | 0 ~ 480 W |
| Heater power | 500 W |
| Temperature set | 0 °C ~ 100 °C |
| Timer | 1 ~ 99 mins ( optional : always ON ) |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| Gross Weight | 15.5 Kg |
| LMFU-A14 — Multifunctional Ultrasonic Cleaner | |
| Capacity | 30 L |
| Tank size (L x W x H) | 500 × 300 × 200 mm |
| Overall size (L x W x H) | 550 × 330 × 407 mm |
| Temperature set | 0 °C to 100 °C |
| Timer | 1 to 99 mins (optional: always ON) |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Heater power | 500 W |
| Ultrasonic power | 0 to 600 W |
| Voltage | AC 220 V / 50 Hz |
| Dimension | 550 × 330 × 407mm |
| Packaging Dimension | 660 × 420 × 455mm |
| Net Weight | 13.5 Kg |
| Gross Weight | 15 Kg |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 6.5 L capacity tank
- Integrated digital circuit for timer and heater
- Temperature range : 0 °C ~ 100 °C
- Power adjustable mode
- Cleaning duration : 1 ~ 99 mins ( can be kept ‘ON’ always )
- 4 working modes available ( Power , Pulse , Turbo , Degas )
- One key access for auto stand-by , sleep and wake up mode
- On power cut, auto memory save option
Applications
Where it is used
- Ideal for cleaning irregular and complex instruments, lenses and other optical parts, dental and surgical instruments, electronics. It is also used in extraction and to degas certain analyzed stuff in laboratories
- Multifunction Ultrasonic Cleaner LMFU-A14 is perfect for cleaning complex items like lenses, surgical tools, electronics, and is also used for extraction and degassing in labs.
