Sample prep & stability
Laboratory Shakers
- Models
- LOS-B20; LRS-A10; LRSR-A10; LMS-B11; LSSR-A10
- Controller
- Knob control
- Shaking mode
- Orbital
- Orbital diameter
- 4 mm
- Operation mode
- Continuous/timed operation
Orbital Shaker LOS-B20 come with amazing features like Accessories gross weight with 2 kg, Accessories packaging dimension (W×D×H) with 380×480×200 mm, Alarm system with Overspeed sound/ligh…
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Shakers specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

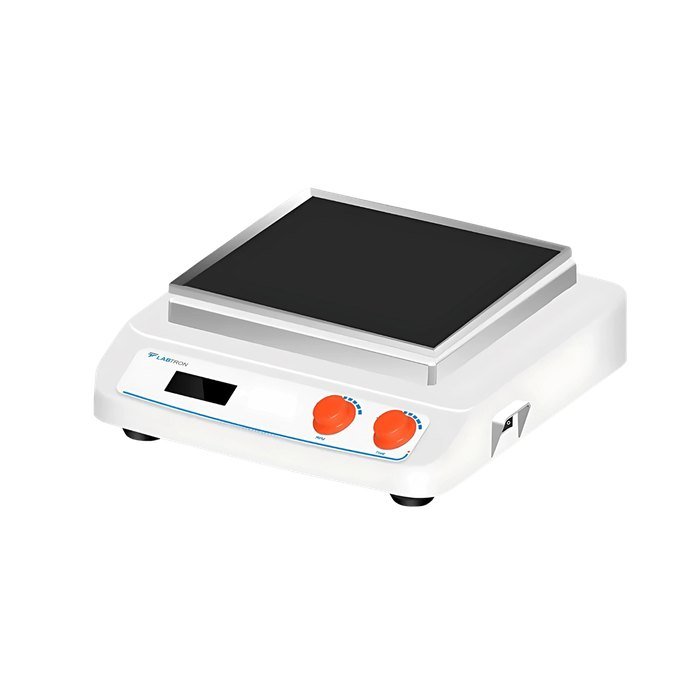

| LOS-B20 — Orbital Shaker | |
| Controller | Knob control |
| Shaking mode | Orbital |
| Orbital diameter | 4 mm |
| Operation mode | Continuous/timed operation |
| Display | LCD display |
| Speed range | 100 to 800 rpm |
| Timing range | 1 to 1199 min |
| Motor type | Brushless DC motor |
| Security features | Over-speed protection and detection |
| Alarm system | Overspeed sound/light alarm |
| Protection type | IP21 |
| Interface | RS232 |
| Motor Input/Output | 28 W/15 W |
| Power | 30 W |
| Power supply | AC 110/120 V ±10%, 50/60 Hz |
| External dimension (W×D×H) | 300×340×100 mm |
| Shaker packaging dimension (W×D×H) | 450×450×200 mm |
| Accessories packaging dimension (W×D×H) | 380×480×200 mm |
| Shaker gross weight | 10 kg |
| Accessories gross weight | 2 kg |

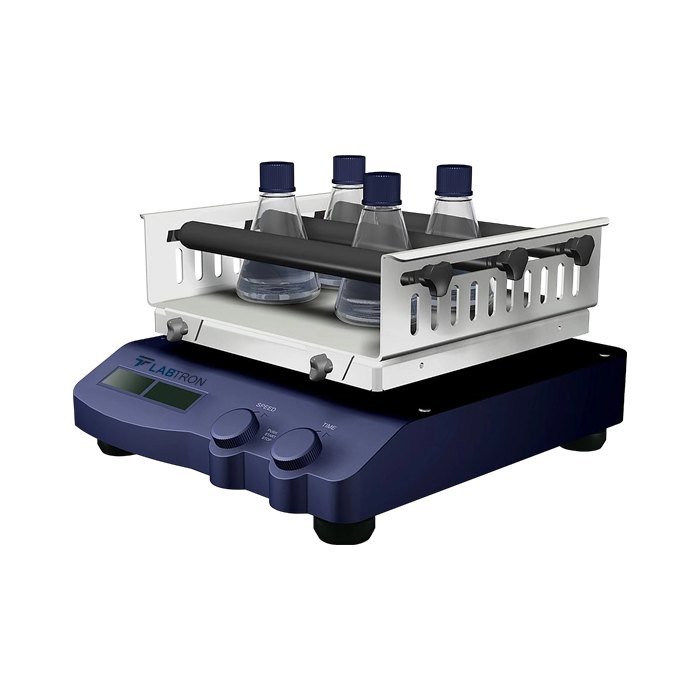

| LRS-A10 — Reciprocal Shaker | |
| Maximum Load Capacity | 7.5Kg |
| Speed Range | 60rpm to 500rpm |
| Shaking Amplitude | 4mm |
| Shaking Motion | Reciprocal |
| Ambient Temperature | 5 to 40℃ |
| Humidity | 80% |
| Time Set Range | 0 to 99h59min |
| Display | Large screen LCD display |
| Power Supply | 100V to 240V, 50Hz/60Hz |
| Dimension (W×D×H) | 330mm×370mm×130mm |
| Packaging Dimension (W×D×H) | 420mm×390mm×192mm |
| Net Weight | 7Kg |
| Gross Weight | 8.5Kg |

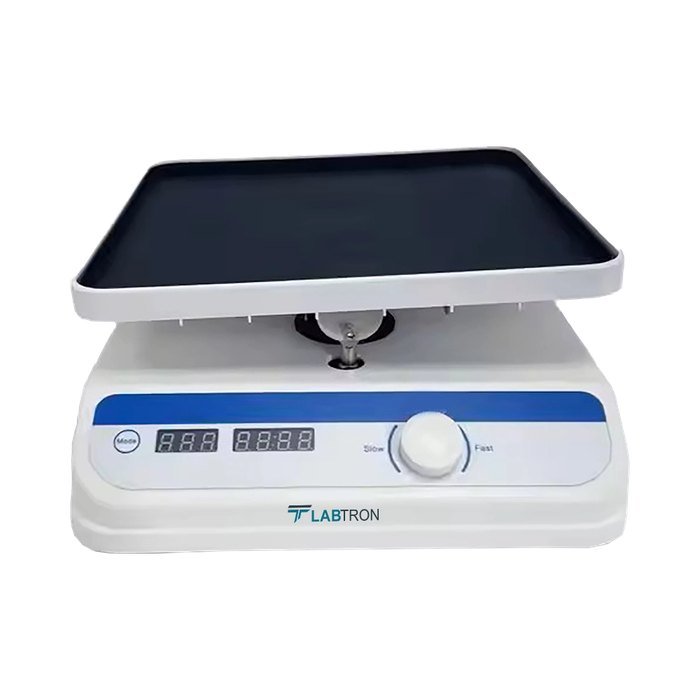

| LRSR-A10 — Rocker Shaker | |
| Max. Load (with clamps) | 3 kg |
| Orbital Diameter | 10° |
| Speed | 10 to 70 rpm |
| Shaking Mode | Rock shaking |
| Operation Mode | Continuous |
| Shell Guard Level | IP21 |
| Power Consumption | 50W |
| Power Supply | DC24V |
| Dimensions (W×D×H) | 345mm×308mm×108mm |

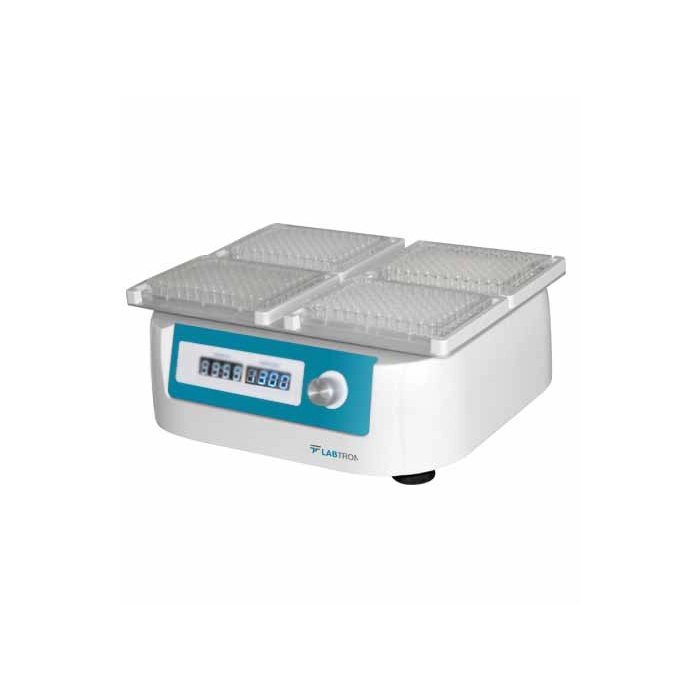

| LMS-B11 — Microplate Shaker | |
| Shaking Speed Range | 200 - 1500 rpm / min |
| Capacity | 96 well x 4 plates |
| Shaking Motion | Orbital |
| Shaking Orbit | 3 mm |
| Temperature Range | No heating function |
| Temperature Uniformity | None |
| Temperature Accuracy | None |
| Heating Time | None |
| Timer | 1 min to 99 h 59 min |
| Display | LED |
| Operation | Continuous/Timed |
| Dimension | 290 x 270 x 120 mm |
| Weight | 6.5 kg |
| Power | 40 W |
| Power Supply | 220 V, 60 Hz |

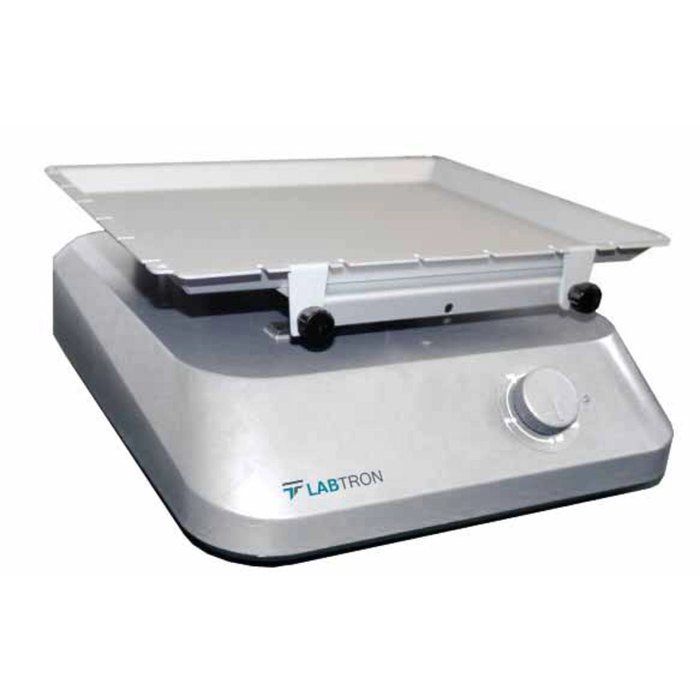

| LSSR-A10 — See Saw Rocking Shaker | |
| Maximum Load Capacity | 3 kg |
| Shaking Speed Range | 10 - 80 rpm |
| Shaking Motion | See Saw |
| Display | Analog |
| Timer Range | None |
| Tilt Angle | 7° |
| Temperature Range | 5 - 40 °C |
| Humidity | 80 %RH |
| Operation | Continuous |
| Overall Dimension | 330 x 270 x 130 mm |
| Weight | 3.2 kg |
| Power | 20 W |
| Power Supply | 240 V , 60 Hz |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Compact, benchtop unit, offers orbital shaking
- Speed range of 100 to 800 rpm
- Dual LCD for independent screening of speed and time; Knob control
- Continuous/timed operation; Over-speed protection and detection
- Maintenance- free brushless DC motor for high performance
- IP21 protection with RS232 interface
- High-efficient, reliable and easy-to-use
- Simple operation interface
Applications
Where it is used
- Our Reciprocal Shaker LRS-A10 ensures uniform mixing with adjustable speed, ideal for laboratory, biotechnology, and pharmaceutical applications, providing reliable sample agitation for research, chemical processing, and microbiology studies.
- Labtron's Microplate Shaker is suitable for incubation and cultivation of biological and chemical components in microbiology, cellular and molecular biology, Immunology, and Biotechnology.
