Sample prep & stability

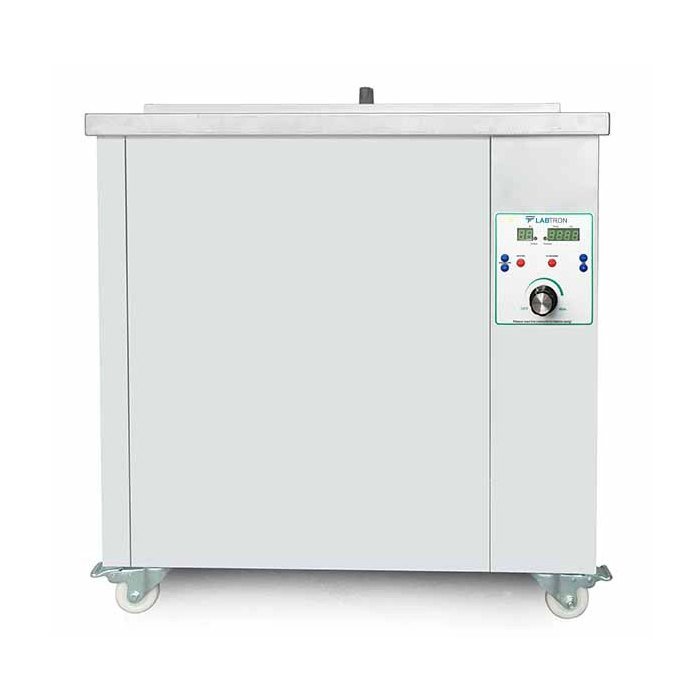

Industrial Ultrasonic Cleaner
- Models
- LIUC-A10; LIUC-A11; LIUC-A14; LIUC-A15; LIUC-A17
- Capacity
- 38 L
- Tank size ( L x W x H )
- 500 x 300 x 250 mm
- Overall size ( L x W x H )
- 760 x 480 x 710 mm
- Ultrasonic power
- 0 ~ 600 W
Our Integrated Industrial Ultrasonic Cleaner LIUC-A10 offers a 38L capacity chamber with in-built digital processed temperature controls for intensive cleaning of samples at a high ultrasoni…
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Industrial Ultrasonic Cleaner specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LIUC-A10 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 38 L |
| Tank size ( L x W x H ) | 500 x 300 x 250 mm |
| Overall size ( L x W x H ) | 760 x 480 x 710 mm |
| Ultrasonic power | 0 ~ 600 W |
| Heater power | 2000 W |
| Temperature set | 0 °C ~ 80 °C |
| Timer | 1 ~ 99 mins |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| LIUC-A11 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 53 L |
| Tank size ( L x W x H ) | 500 x 350 x 300 mm |
| Overall size ( L x W x H ) | 760 x 530 x 730 mm |
| Ultrasonic power | 0 ~ 900 W |
| Heater power | 3000 W |
| Temperature set | 0 °C ~ 80 °C |
| Timer | 1 ~ 99 mins |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| LIUC-A14 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 135 L |
| Tank size | 600 × 500 ×450 mm |
| Overall size | 870 × 680 × 900 mm |
| Ultrasonic power | 0 to 1800 W |
| Temperature set | 0 °C to 80 °C |
| Timer | 1 to 99 min |
| Construction material | Stainless Steel |
| Heater power | 6000 W |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| Dimension | 780 × 680 × 700 mm |
| Packaging Dimension | 900 × 770 × 1100 mm |
| Net Weight | 86 Kg |
| Gross Weight | 120 Kg |
| LIUC-A15 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 175 L |
| Tank size ( L x W x H ) | 700 x 500 x 500 mm |
| Overall size ( L x W x H ) | 970 x 680 x 960 mm |
| Ultrasonic power | 0 ~ 2400 W |
| Heater power | 6000 W |
| Temperature set | 0 °C ~ 80 °C |
| Timer | 1 ~ 99 mins |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| LIUC-A17 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 360 L |
| Tank size ( L x W x H ) | 1000 x 600 x 600 mm |
| Overall size ( L x W x H ) | 1270 x 780 x 1060 mm |
| Ultrasonic power | 1800 ~ 3600 W |
| Heater power | 9000 W |
| Temperature set | 0 °C ~ 80 °C |
| Timer | 1 ~ 99 mins |
| Construction material | Stainless Steel |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- 38 L capacity tank
- Temperature range : 0 °C ~ 80 °C
- Cleaning duration : 1 ~ 99 mins
- 28 KHz for gross rinse to 40 KHz for intensive rinse
- Inbuilt with industrial based transducer and powerful ultrasonic generator
- One key access for auto stand-by , sleep and wake up mode
- Integrated digital circuit for timer and heater
- Precise digital processed temperature controls
Applications
Where it is used
- Used in cleaning of irregular and complex specialized instruments, components of sundry shops, workshops, factories etc.
- Integrated Industrial Ultrasonic Cleaner LIUC-A14 is used to clean complex and irregularly shaped tools and parts in shops, workshops, factories, and similar places.
