Heating, cooling & storage
Drying Oven
- Models
- LDO-A10; LDO-A11; LDO-A12; LDO-A13; LDO-A14
- Chamber Volume
- 30 L
- Number of Shelves
- 2 pcs
- Temperature Range
- RT + 10°C to 250°C
- Temperature Display Resolution
- 0.1°C

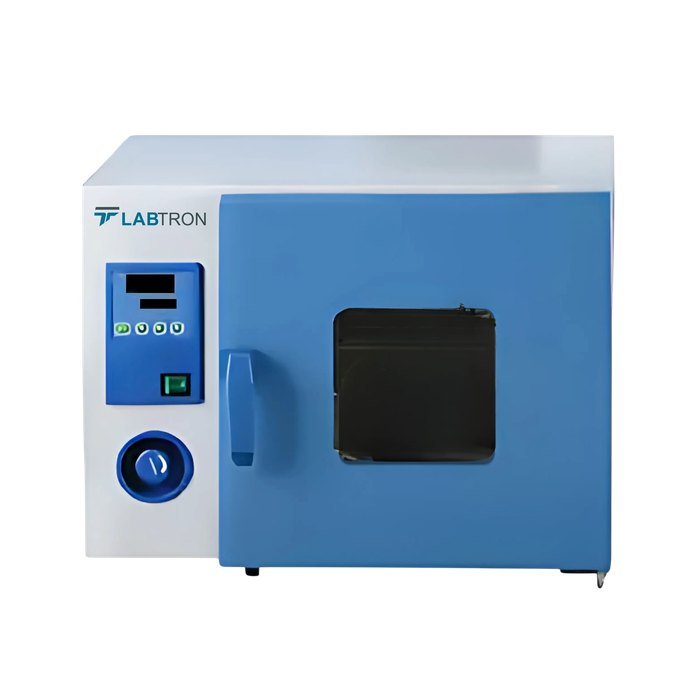

Labtron is a trusted supplier of Drying Ovens. Our LDO-A10 model offers a temperature range of RT + 10℃ to 250°C, featuring ±1°C stability and precise PID control.
Added to your inquiry list. It travels with your next quote request.

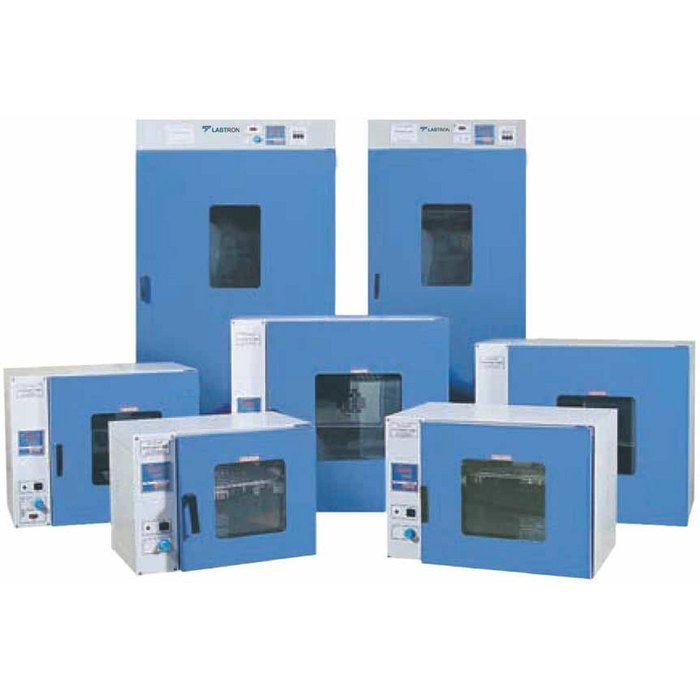

5 models
Product Description
Drying Oven specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LDO-A10 — Drying Oven | |
| Chamber Volume | 30 L |
| Number of Shelves | 2 pcs |
| Temperature Range | RT + 10°C to 250°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Stability | ± 1°C |
| Temperature Uniformity | ± 3% (at 100°C) |
| Ambient Temperature | + 5°C to 40°C |
| Timing Range | 0 to 9999 min |
| Power Supply | 220 V 50 Hz |
| Power Consumption | 850 W |
| Interior Dimension | 340 × 320 × 320 mm |
| Exterior Dimension | 620 × 440 × 490 mm |
| LDO-A11 — Drying Oven | |
| Capacity | 50 L |
| No. of shelves | 2 |
| Temperature Range | RT +10°C to 300°C |
| Temperature Stability | ±1℃ |
| Ambient Temperature | 5 to 40°C |
| Time Range | 0 to 999 minutes |
| Liner Material | Galvanized liner |
| Power | 1000 W |
| Power Supply | 220V 50Hz / 110V 60Hz |
| Inner Dimensions | 400 × 350 × 350 mm |
| Packing Dimensions | 760 × 620 × 620 mm |
| Net Weight | 31 kg |
| Gross Weight | 34 kg |
| LDO-A12 — Drying Oven | |
| Chamber Volume | 80 L |
| Number of Shelves | 2 pcs |
| Temperature Range | RT +10°C to 250°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Stability | ± 1°C |
| Temperature Uniformity | ± 3% (at 100°C) |
| Ambient Temperature | + 5°C to 40°C |
| Timing Range | 0 to 9999 min |
| Power Supply | 220 V 50 Hz |
| Power Consumption | 1550 W |
| Interior Dimensions | 450 × 400 × 450 mm |
| Exterior Dimensions | 740 × 530 × 630 mm |
| Net Weight | 49 kg |
| Gross Weight | 61 kg |
| LDO-A13 — Drying Oven | |
| Chamber Volume | 136 L |
| Number of Shelves | 2 |
| Display Resolution | 0.1℃ |
| Temperature Range | RT + 10 to 200°C / RT + 10 to 250°C |
| Temperature Stability | ±1℃ |
| Ambient Temperature | 5 to 40°C |
| Timing Range | 1 to 9999 min |
| Interior Dimension (W×D×H) | 550×450×550 mm |
| Exterior Dimension (W×D×H) | 840×580×730 mm |
| Power Consumption | 2050 W |
| Power | 220 V, 50 Hz |
| LDO-A14 — Drying Oven | |
| Chamber Volume | 220 L |
| Number of Shelves | 2 |
| Display Resolution | 0.1℃ |
| Temperature Range | RT + 10 to 200°C / RT + 10 to 250°C |
| Temperature Stability | ±1℃ |
| Ambient Temperature | 5 to 40°C |
| Timing Range | 1 to 9999 min |
| Interior Dimension (W×D×H) | 600×500×750 mm |
| Exterior Dimension (W×D×H) | 880×720×930 mm |
| Power Consumption | 2450 W |
| Power | 220 V, 50 Hz |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Stainless steel mirror-polished chamber
- Easy to clean and maintain
- Uniform airflow system
- Temperature uniformity
- Long-life silicon door gasket
- Microprocessor-based PID controller
- Forced-air convection mode
- Easy to operate
- RS-485 port for data transfer to PC via software
- Over-temperature alarm for safe operation
- RS-485 port enables PC data transfer
Applications
Where it is used
- Our Drying Oven LDO-A10 is ideal for desiccation, torrefaction, wax-melting, and sterilization tasks across labs, research institutes, and the mining industry. It ensures reliable drying in clinical labs, material testing, and quality control settings.
- Drying Oven LDO-A11 is used in labs and industries like pharmaceuticals, electronics, and food processing for drying, sterilizing, heat treatment, and temperature-controlled storage.
- Drying Oven LDO-A12 is ideal for desiccation, torrefaction, sterilization, and drying in labs, research units, and industrial settings. It supports consistent performance in material testing, electronics, and quality control.
