Spectroscopy
Benchtop Refractometer
- Models
- LBR-A10; LBR-A11; LBR-A12; LBR-A13
- Radius
- 1.3000 to 1.7000(nD)
- Resolution
- 0.0001(nD)
- Precision
- ±0.0001
- Brix Measuring Range
- 0 to 100% (Brix)

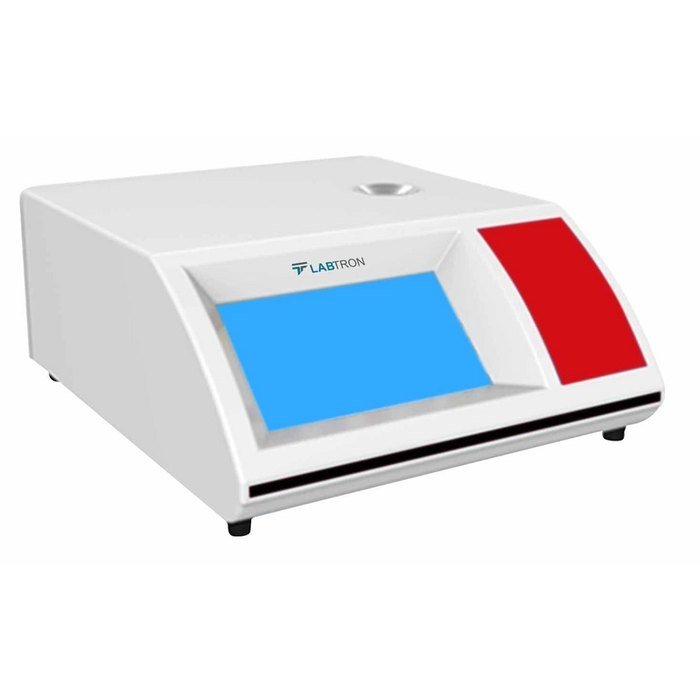

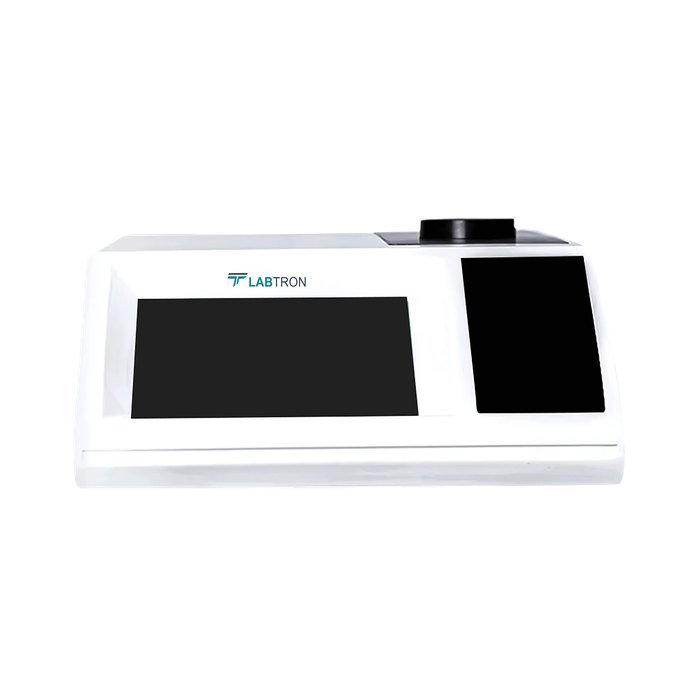

Labtron is a leading supplier of the Benchtop Refractometer LBR-A10, widely used in pharmaceutical industries and for routine laboratory testing.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Benchtop Refractometer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LBR-A10 — Benchtop Refractometer | |
| Radius | 1.3000 to 1.7000(nD) |
| Resolution | 0.0001(nD) |
| Precision | ±0.0001 |
| Brix Measuring Range | 0 to 100% (Brix) |
| Brix Measuring Accuracy | ±0.01% (Brix) |
| Test Mode | Refractive index / sugar content/honey moisture/ salinity |
| Temperature Control Mode | Peltier-based system |
| Temperature Range | 0℃ to 100℃ |
| Temperature Control Range | 5℃ to 65℃ |
| Temperature Stability | ±0.03℃ |
| Display | 7-inch touch color screen |
| Light Source | LED |
| Wavelength | 589nm |
| Prism Material | Sapphire class |
| Sample Cell | Stainless steel |
| Detection Mode | Linear CCD |
| Output Mode | USB, RS232, Ethernet interface, SD card, U disk |
| Connectivity | Wireless Wi-Fi |
| Printer | Wireless Laser Printing |
| Power Supply | 220V/50Hz |
| Dimension | 300×350×150 mm |
| Gross Weight | 5 kg |
| LBR-A11 — Benchtop Refractometer | |
| Measuring range | 1.3000 nD ~ 1.7000 nD |
| Brix range | 0.0 ~ 100 % |
| Temperature control | 5 °C ~ 65 °C |
| Temperature control stability | ± 0.03 °C |
| Brix accuracy | ± 0.1 % |
| Fine degrees | ± 0.0002 |
| Data interface | USB RS232 |
| Wavelength | 589 nm |
| Power | 220 V / 50 Hz |
| LBR-A12 — Benchtop Refractometer | |
| Measuring range | 1.30000 nD ~ 1.70000 nD |
| Brix range | 0.0 ~ 100 % |
| Temperature control | 5 °C ~ 65 °C |
| Temperature control stability | ± 0.02 °C |
| Brix accuracy | ± 0.1 % |
| Fine degrees | ± 0.00003 |
| Data interface | USB RS232 |
| Wavelength | 589 nm |
| Power | 220 V / 50 Hz |
| LBR-A13 — Benchtop refractometer | |
| Measuring Range | 1.3000 nD to 1.7000 nD |
| Brix Range | 0.0 to 100 % |
| Brix Accuracy | ± 0.01 % |
| Temperature Control | 5 °C to 90 °C |
| Temperature Control Stability | ± 0.01 °C |
| Fine Degrees | ± 0.0002 |
| Data Interface | USB RS232 |
| Wavelength | 589 nm |
| Power Supply | 220 V / 50 Hz |
| Dimension | 440 × 410 × 350 mm |
| Weight | 7.5 Kg |
Specification published by Labtron. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Peltier Cooling
- Sapphire Prism
- Steel Sample Cell
- LED Optics
- Wireless Printing
- LED light source
- Built in semiconductor for temperature control
- Stainless steel sample pool
Applications
Where it is used
- Benchtop Refractometer LBR-A10 is suitable for a wide range of analytical applications, including sugar analysis, honey testing, and salinity measurement across food and beverage sectors. It is equally useful in pharmaceutical quality control, routine chemical analysis, and various research laboratory environments. Its precise performance and stable measurement capabilities make it ideal for quality control departments and other professional testing facilities.
- Used in measuring sugar content of solutions in laboratories, brewing and food industry, chemical industry, research institutes, pharmaceuticals, cosmetic industry, petroleum industry, etc.
