Sample prep & stability
Water Distillation and Purification System
- Models
- LZ-DWS-A110; LZ-DWS-A120; LZ-SDK-A100; LZ-UWP-A100
- Output
- 30 L/h
- Flow Rate
- 2L
- Pure Water Outlet
- 1: reverse osmosis water, deionized water
- Ion Rejection Rate
- 96-99%
Distillation and multi-stage purification for reagent-grade laboratory water.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Water Distillation and Purification System specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LZ-DWS-A110 — Deionized Water System | |
| Output | 30 L/h |
| Flow Rate | 2L |
| Pure Water Outlet | 1: reverse osmosis water, deionized water |
| Ion Rejection Rate | 96-99% |
| Organic Rejection Rate | >99% |
| Particle and Bacteria Rejection Rate | >99% |
| Bacteria | <0.1cfu/ml |
| Particle | <1/ml |
| Feed Water | Tap water Temperature range 5-45°C Pressure 1.0-4.0kgf/cm2 |
| Display | LCD |
| Water Quality Meter | TDS Meter |
| Cartridges | 4 |
| Wavelength Range | 185 and 254 nm |
| Power Consumption | 72 W |
| Power Supply | AC 110-240V, 50/60Hz |
| Dimensions | 410 x 220 x 420 mm |
| Weight | 16 kg |
| LZ-DWS-A120 — Deionized Water System | |
| Water Output Type | UP water outlet RO water outlet DI water outlet |
| Water Output Speed at 25°C | 30 L/hr |
| Purification Procedure | PF+AC+RO+AC+UV+UP+TF |
| Water Supply | Water pressure 0.1 to 0.3Mpa, at 5 to 40°C |
| UP Water Resistivity | 18.2MΩ.cm@25℃ |
| UP Water Sodium Ion | <0.1μg/l |
| UP Water Heavy Metal | <0.1μg/l |
| UP Water Si | <2μg/l |
| UP Water Bacteria | <1cfu/100ml |
| UP Water TOC | 20μg/L |
| DI Water Resistivity | 10~18.1MΩ.cm@25℃ |
| DI Water Absorbance | ≤0.001 |
| DI Water Soluble Silicon | ≤0.01 |
| RO Water Ion Rejection Rate | 96% to 99% |
| RO Organic Rejection Rate | >99% |
| RO Particles and Bacteria Rejection Rate | >99% |
| Power Consumption | 74W |
| Power Supply | 100 to 240V, 50/60Hz |
| Dimension (L × W × H) | 386 × 481 × 461mm |
| Packing Dimension (L × W × H) | Main body: 540 x 455 x 540mm,21.5kg Accessory kit: 425*295*475mm, 5kg |
| Net Weight | 21.5 kgs |
| Gross Weight | 26.5kgs |

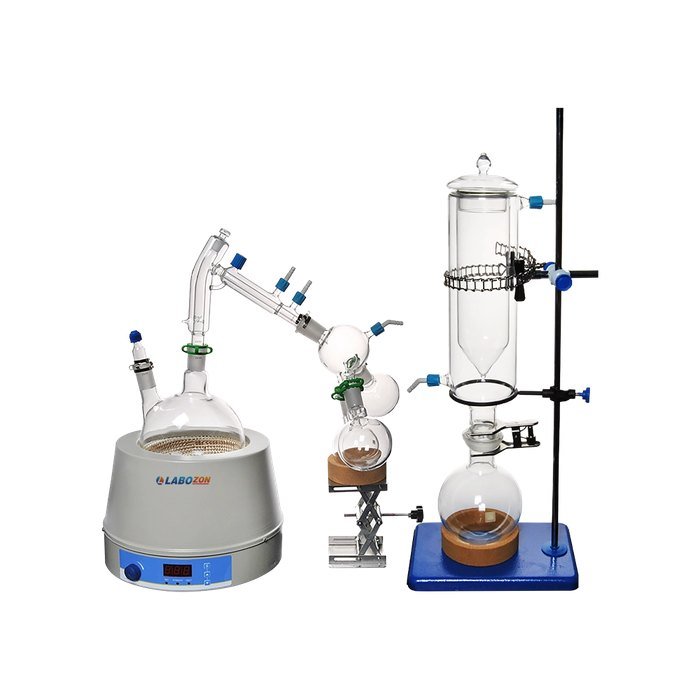

| LZ-SDK-A100 — Short Path Distillation Kit | |
| Boiling Flask | 2L, Neck 29/42 Center joint,24/40 Offset Joint |
| Receiving Flask | 1000 ml, 45/50 |
| Condenser | Jacketed, Hollow 14/20, penny stopper |
| Cold Trap Joint set | 3x 24/40 250ml Round Bottom receiving Flask |
| Distillation Receiver | 24 x 40 |
| Iron Stand | 250 x 160 mm |
| Heating Mantle ( Optional) | 2000 ml, 380°C RT |
| Fabric Insulation Shield | 25 mm thickness shield without heating 25 mm thickness shield with heating |
| Lab Stand | 100 x 100 mm |
| Dimensions | Glassware package: 520 x 450 x 240 mm (Foam Case) Heating Mantle and others: 390 x 280 x 340 mm |
| Weight | Glassware package: 5 kgs Heating Mantle and others: 9.5 kgs |

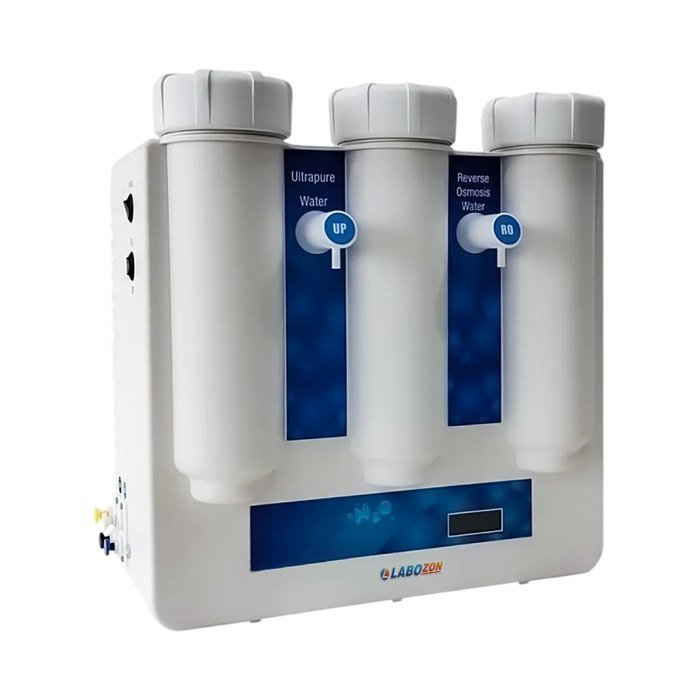

| LZ-UWP-A100 — Type I And Type III Water Purification System LZ-RWP-A100 | |
| Pure Water Output | ≥ 10 L / hr |
| Water Type | Type I and Type III |
| Water Tank Capacity | 30 L |
| Method | Double Pass RO system |
| Ultrapure Water Output | ≥ 1- 1.5 L / min |
| Resistivity | 15 ~ 18.25 M Ω. Cm @25°C |
| Conductivity | ≤ 5 µs / cm @25°C |
| Retention Rate ( Silicon) | >99.9% |
| TOC | <20 ppb |
| Absorbance | <0.001 |
| Reactive Silica (SiO2) | <0.01 ppm |
| Heavy Metal Ion | <0.01 ppm |
| Pyrogens | < 0.02 EU / ml |
| Power | >150 W |
| Power Supply | 220 V / 50 Hz |
| Dimensions | 340 x 550 x 530 mm |
| Weight | 39 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Direct tap water inlet for continuous operation
- All-in one compact design
- Real time monitoring
- Portable water quality TDS meter
- Optional external water tank
- Quick-Access Pre-treatment Replacement
- Automatic shutdown
- RO membrane auto-flushing
Applications
Where it is used
- Deionized Water System LZ-DWS-A110 is used in analytical, pharmaceutical, educational, and research laboratories for producing deionized water for routine experiments and equipment feed.
- Deionized Water System LZ-DWS-A120 is used in analytical, pharmaceutical, educational, and research laboratories for producing deionized water for routine experiments and equipment feed.
- HPLC mobile phase preparation; preparation of reagent blank solutions; sample diluent for GC, HPLC, ICP-MS, AA and other analytical techniques; preparation of buffers and culture media for mammalian cell culture; preparation of molecular biology reagents.
