Viscometer
- Models
- LZ-DV-A100; LZ-RVM-A110
- Measurement Range
- 20 to 100,000 mPa. S
- Rotating Speed
- Four adjustable speed: 6 12, 30 , 60 RPM
- Spindle Count
- Spindle with code L1 , L2 , L3 , L4
- Accuracy
- ± 1%
Rotational and digital viscometry for flow behaviour of liquids and semi-solids.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Viscometer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

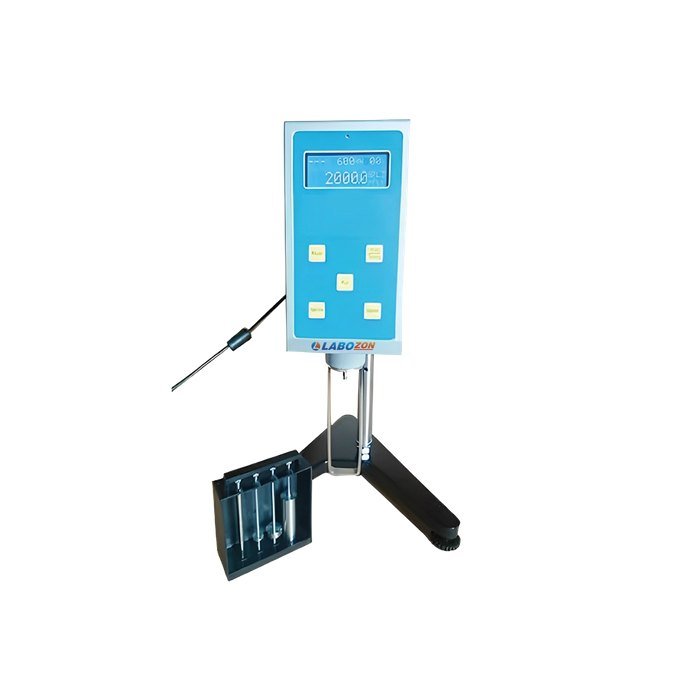

| LZ-DV-A100 — Digital Viscometer | |
| Measurement Range | 20 to 100,000 mPa. S |
| Rotating Speed | Four adjustable speed: 6 12, 30 , 60 RPM |
| Spindle Count | Spindle with code L1 , L2 , L3 , L4 |
| Accuracy | ± 1% |
| Recovery Capacity | ± 0.5% |
| Interface | RS232 |
| Display | LCD |
| Power supply | Power adapter 100 to 240 V, 50/60 Hz |
| Packing Dimension ( W × D × H ) | 460 × 400 × 280 mm |
| Gross Weight | 6.4 Kg |

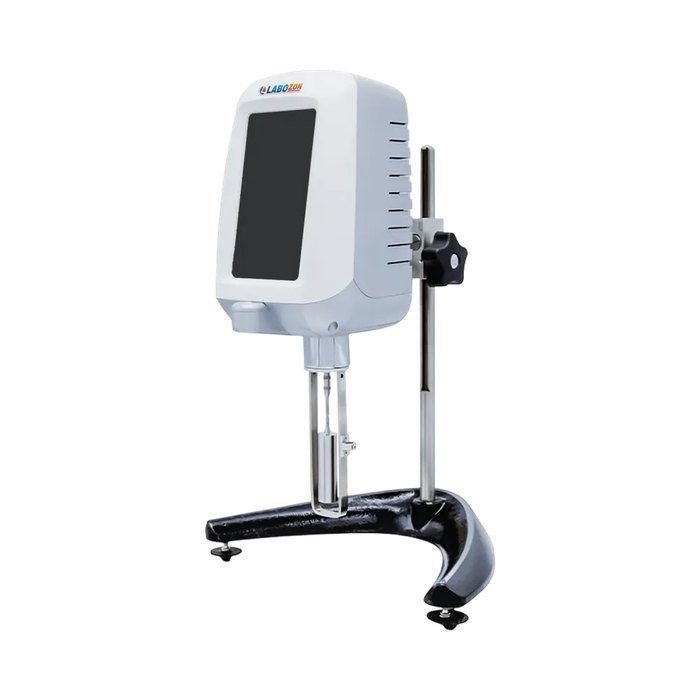

| LZ-RVM-A110 — Rotational Viscometer | |
| Measure Range | RV: 100 to 40000000 mPa.s |
| Rotation Speed | 0.1-250rpm |
| Spindles | 6 pcs (No. 2, 3, 4, 5, 6, 7) |
| Accuracy | ±1.0% |
| Repeatability | ±0.5% |
| Display | 7inch wide touch screen |
| Probe | RTD temperature probe |
| Power Supply | AC 100-240V 50/60Hz |
| Dimensions | 410 × 380 × 410 mm |
| Net Weight | 10 kg |
| Gross Weight | 12 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Digital Viscometer guarantees precise performance recovery
- Works with multiple spindle types
- Small sample adapter
- Adjustable rotor speeds
- Movable rack for vertical motion
- Stable and level device setup
- Wide Measurement Range
- Adjustable Speed Control
Applications
Where it is used
- Rotational Viscometer is widely used in Chemical and petrochemical industries, Paints, coatings, and inks, Pharmaceuticals and cosmetics, research and quality control laboratories.
