Vacuum Pump
- Models
- LZ-DVP-A100; LZ-DVP-A101
- Pumping Speed
- 30 L/min
- Ultimate Pressure
- ≥ 0.095 Mpa
- Vacuum
- 50 mbar
- Material of diaphragm pump
- Nitrile Rubber (NBR)
Diaphragm and rotary vacuum for filtration, evaporation and drying lines.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Vacuum Pump specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

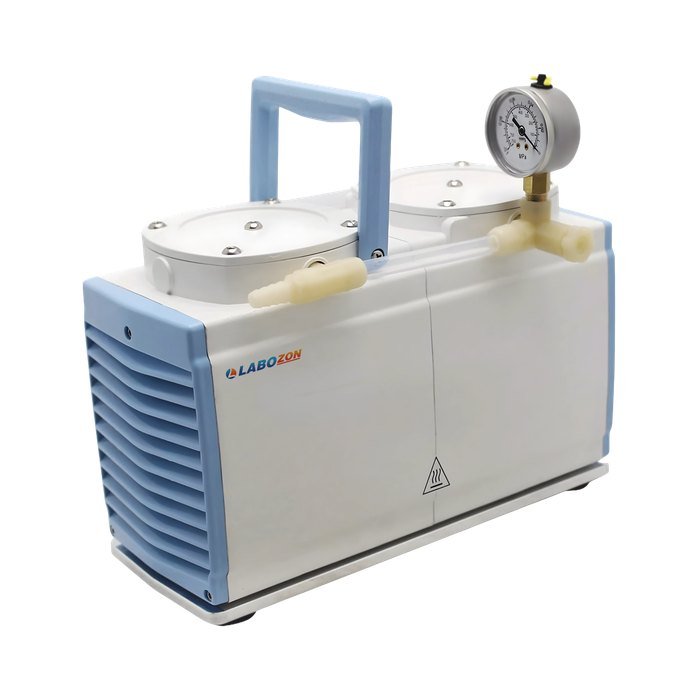

| LZ-DVP-A100 — Diaphragm Vacuum Pump | |
| Pumping Speed | 30 L/min |
| Ultimate Pressure | ≥ 0.095 Mpa |
| Vacuum | 50 mbar |
| Material of diaphragm pump | Nitrile Rubber (NBR) |
| Power | 160 W |
| Inlet | φ 6 mm |
| Outlet | Silencer |
| Temperature of Body | < 55 °C |
| Ambient Temp. | 7 °C to 40 °C |
| Pump Head | 2 |
| Noise Level | < 60 dB |
| Power Supply | 220 V, 50 Hz |
| Dimension | 300 × 120 × 235 mm |
| Weight | 9 kg |
| LZ-DVP-A101 — Diaphragm Vacuum Pump | |
| Pumping Speed | 20L/min |
| Ultimate Pressure | 0.08Mpa |
| Vacuum | 200mbar |
| Pressure | Negative Pressure |
| Material of diaphragm pump | Teflon Surface |
| Power | 160W |
| Inlet | φ 6 mm |
| Outlet | Silencer |
| Temperature of Body | < 55 °C |
| Ambient Temp. | 7 °C to 40 °C |
| Pump Head | 1 |
| Noise Level | < 60 dB |
| Power Supply | AC110/220V±10%, 50/60Hz |
| External Dimensions | 210 x 120 x 235 mm |
| Packing Dimensions | 355 x 215 x 375 mm |
| Net Weight | 6.2 kg |
| Gross Weight | 8.17 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- An eco-friendly, sustainable oil-free displacement pump
- Enhanced by an air exchange bin that boasts a top-notch filtering system for pristine air circulation
- Supplied with an automatic cooling exhaust system
- Incorporates a high-quality classical axle tree, ensuring a stable and smooth operation
- Minimal noise with exceptional operating efficiency
- Features an innovative self-cooling air draft mechanism
- Operates seamlessly and without any friction
- Employs a nitrile rubber (NBR) diaphragm pump, perfectly suited for organic solvent applications
Applications
Where it is used
- Utilized for tasks such as vacuum absorption, filtration, vacuum distillation, and vacuum drying, it can efficiently extract, transfer, and deliver pure air and gases. It serves various industries, including life sciences, pharmaceuticals, chemistry, and food packaging, ensuring contamination-free processes.
