Application
Pharmaceutical & Biotechnology Industry
Cleaning lab glassware, sample vials, and experimental containers after testing work
Sample prep & stability
Ultrasonic Cleaner
- Models
- LZ-DUC-A110; LZ-DUC-A120; LZ-DUC-A130; LZ-DUC-A140; LZ-IUC-A105
- Volume
- 2L
- Display
- LED
- Material
- Stainless Steel
- Timer
- 1-30minutes
Ultrasonic baths for glassware cleaning, degassing and sample dispersion.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Ultrasonic Cleaner specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

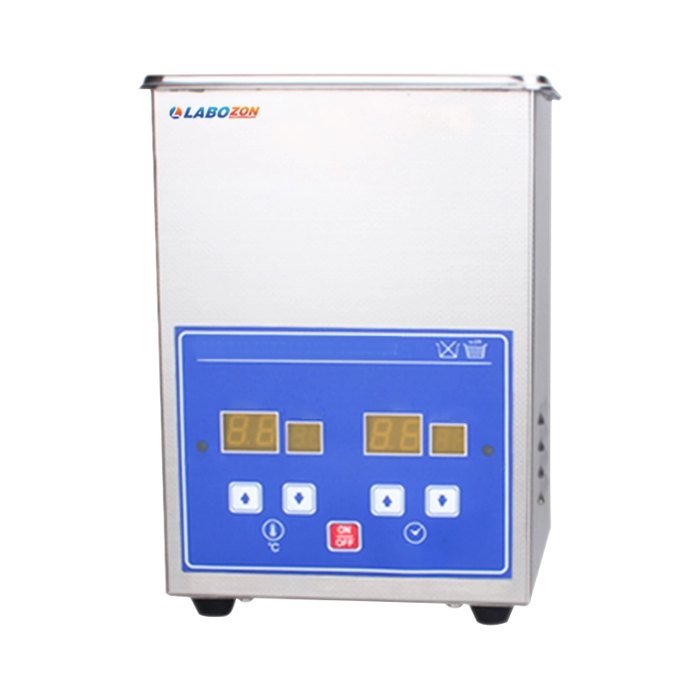

| LZ-DUC-A110 — Digital Ultrasonic Cleaner | |
| Volume | 2L |
| Display | LED |
| Material | Stainless Steel |
| Timer | 1-30minutes |
| Maximum Ultrasonic Power | 70W |
| Maximum Heating Power | 100W |
| Ultrasonic Frequency | 40KHz |
| Heating Temperature | 80℃ |
| Internal Dimensions | 150x135x65 mm |
| External Dimensions | 180x165x205 mm |
| Weight | 2.9Kg |

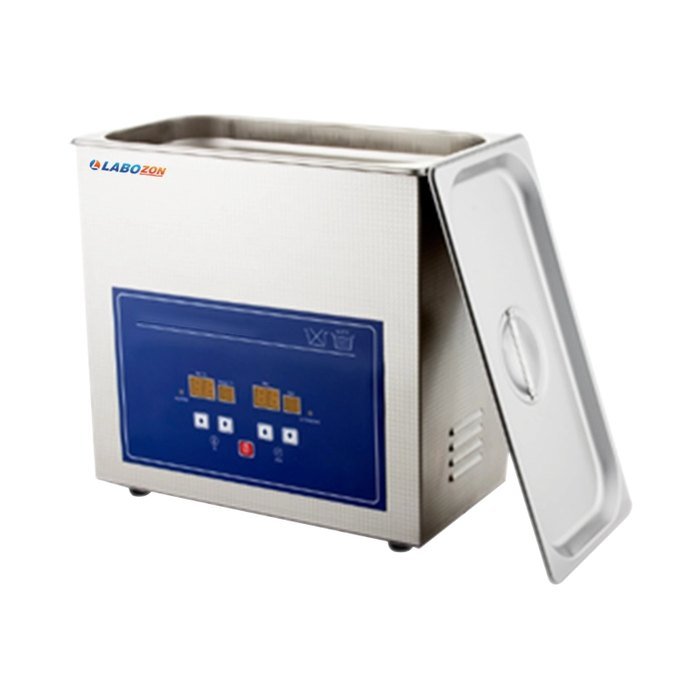

| LZ-DUC-A120 — Digital Ultrasonic Cleaner | |
| Volume | 6.5L |
| Display | LED |
| Material | Stainless Steel |
| Timer | 1-30minutes |
| Maximum Ultrasonic Power | 180W |
| Maximum Heating Power | 200W |
| Ultrasonic Frequency | 40KHz |
| Heating Temperature | 80℃ |
| Internal Dimensions | 300x150x150 mm |
| External Dimensions | 330x180x310 mm |
| Weight | 5.9Kg |

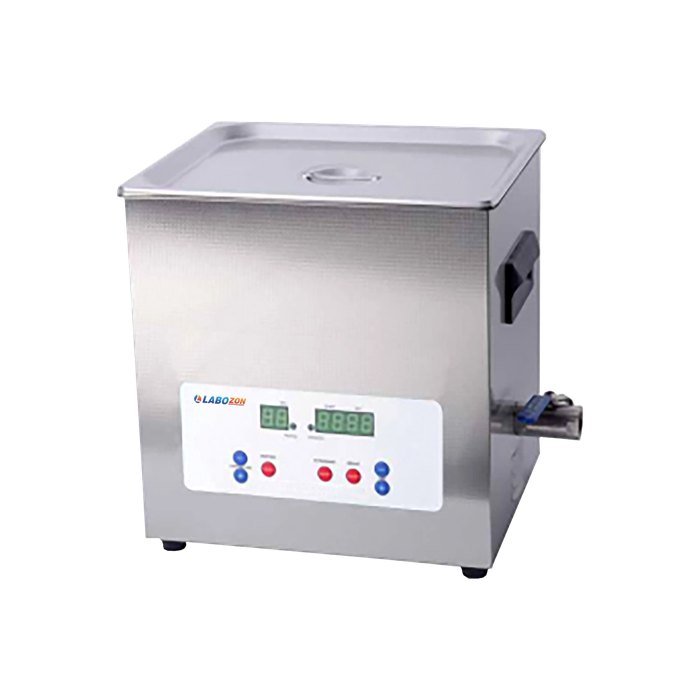

| LZ-DUC-A130 — Digital Ultrasonic Cleaner | |
| Volume | 22L |
| Display | Digital |
| Material | Stainless steel |
| Timer | 1~99 mins |
| Frequency | 28KHz (gross rinse); 40KHz (intensive rinse) |
| Maximum Ultrasonic power | 480 W |
| Maximum Heating power | 600 W |
| Heating Temperature | 0~80°C |
| Drainage | Yes |
| Voltage | AC 220 V / 50 Hz |
| External Dimensions | 590 x 330 x 290 mm |
| Packing Dimensions | 600 x 365 x 430 mm |
| Weight | 15 kg |

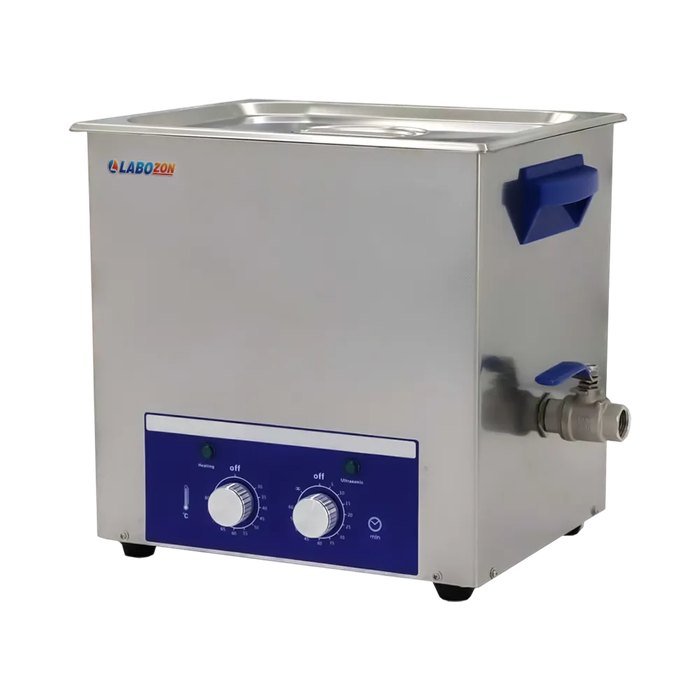

| LZ-DUC-A140 — Digital Ultrasonic Cleaner | |
| Volume | 45 L |
| Inner Chamber Dimensions | 500 x 300 x 300 mm |
| Heating Temperature | ≤80°C |
| Display | Digital |
| Material | Stainless Steel |
| Timer | 1-60 min |
| Maximum Ultrasonic Power | 1280 W |
| Maximum Heating Power | 1000 W |
| Ultrasonic Frequency | 37kHz |
| Transducer | 16*80W |
| Voltage | AC110V-120V/60HZ AC220V-240V/50HZ |
| Weight | 30 kg |

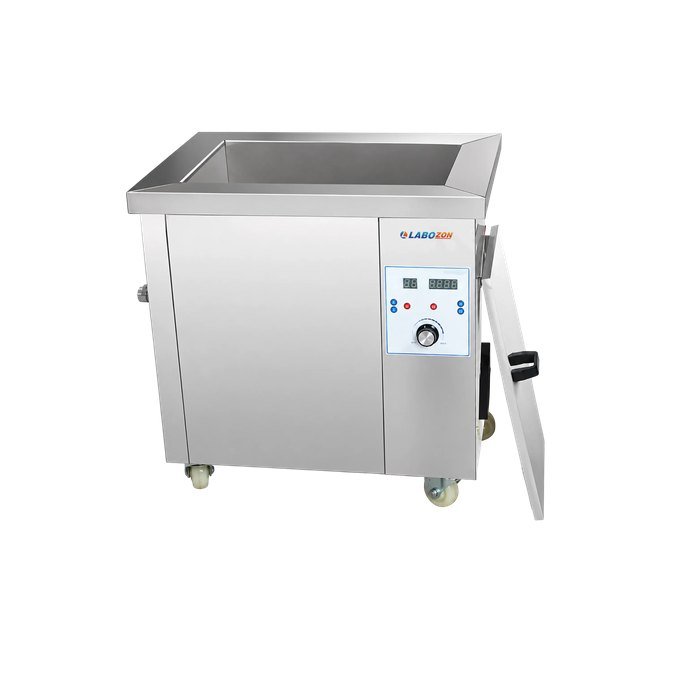

| LZ-IUC-A105 — Integrated Industrial Ultrasonic Cleaner | |
| Capacity | 166 L |
| Tank Size (W × D × H) | 550 × 550 × 550 mm |
| Overall Dimensions (W × D × H) | 820 × 730 × 1000 mm |
| Tank Material | SUS 304 Stainless Steel |
| Ultrasonic Frequency | 40 kHz |
| Ultrasonic Power | 0–2400 W (Adjustable) |
| Heating Power | 6000 W |
| Temperature Range | 15°C – 80°C |
| Timer | 1–99 Minutes |
| Basket | Included |
| Power Supply | 380 V |
| Weight | 140 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Ultrasonic cleaning for residue removal from laboratory tools and equipment
- Digital control panel for setting changes during routine cleaning tasks
- Stainless steel tank supports liquid handling and cleaning procedures
- Timer function manages the operation duration across cleaning cycles
- Display interface shows the working status during daily cleaning activities
- Tank Capacity is 6.5L
- Tank, housing and outer cover is made of top-quality stainless steel
- Designed with high power transduser for superior cleaning result which can be viewed with naked eyes
Applications
Where it is used
Application
Medical & Dental Industry
Cleaning of surgical tools, dental instruments, and clinic accessories after procedures
Application
Chemical Industry
Cleaning of reaction vessels, measuring tools, and lab equipment after chemical handling
Application
Electronics & Semiconductor Industry
Cleaning of delicate boards, connectors, and precision components after production steps
Application
Automotive Industry
Metal parts, small engine parts, and workshop tools are cleaned after maintenance.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
