Application
Pharmaceutical Analysis
Tracks total organic carbon in water for accurate laboratory experiments.
Weighing & measurement
TOC Analyzer
- Models
- LZ-TOC-A100; LZ-TOC-A101
- Detection Range
- 0.001 to 1.5mg/l
- Detection Limit
- 1 ppb
- Maximum Tolerance
- ± 5%
- Analysis Time
- 3 min
Total organic carbon measurement for purified water and cleaning validation.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
TOC Analyzer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

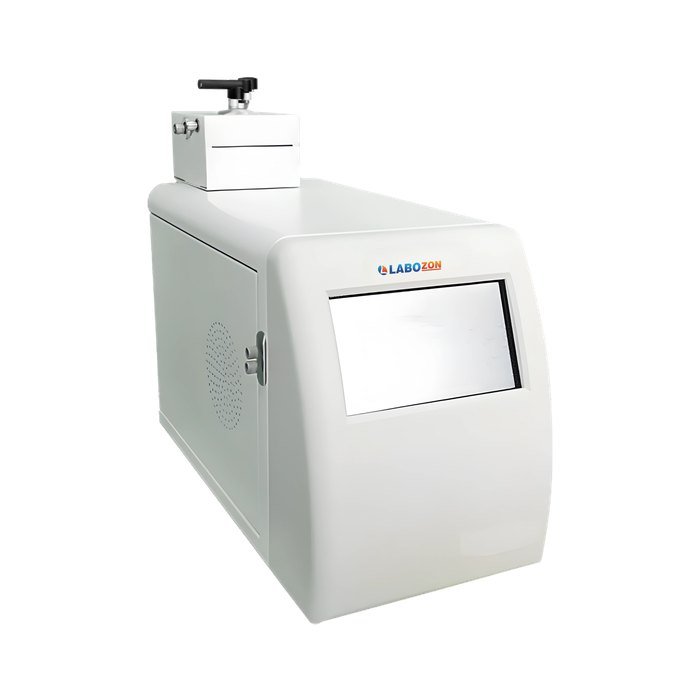

| LZ-TOC-A100 — TOC Analyzer | |
| Detection Range | 0.001 to 1.5mg/l |
| Detection Limit | 1 ppb |
| Maximum Tolerance | ± 5% |
| Analysis Time | 3 min |
| Response Time | Within 10 min |
| Sample Flow Speed | 3 ml/min |
| Sample Temperature | 1 to 95℃ |
| Operating Temperature | 10 to 40℃ with temperature change ± 5 ℃/d |
| Relative Humidity | ≤ 85% |
| Drifting | ± 5% |
| Repeatability Tolerance | ≤ 3% |
| Data Storage | 8 GB |
| Data Printing | Bluetooth Printer |
| Data Retrieval | Direct USB |
| Operation Mode | Online/Offline Switchable |
| Power Consumption | 100 W |
| Power Supply | 220 V ±10%, 50 Hz |
| Dimension | 440 × 220 × 300 mm |
| Weight | 10 Kg |

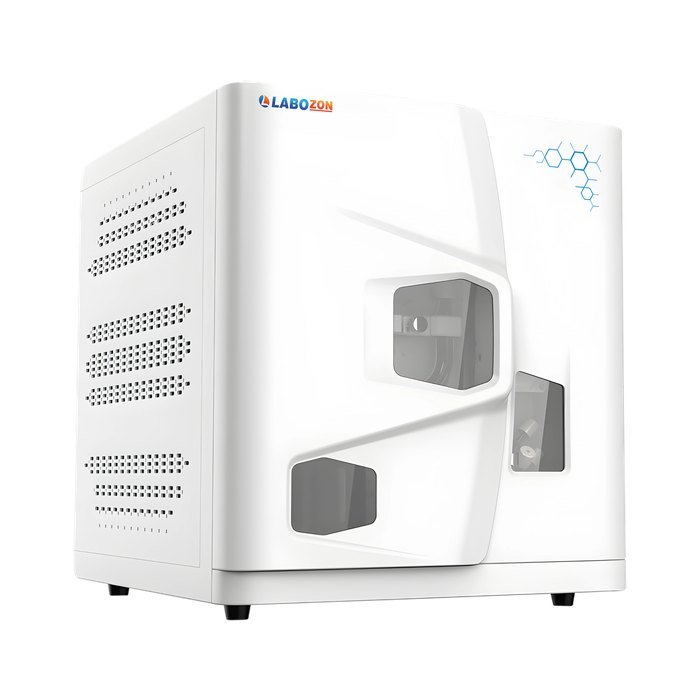

| LZ-TOC-A101 — TOC Analyzer | |
| Measurement capacity | 0 to 100,000 mg/L |
| Minimal detectable concentration | TC: 50 μg/l |
| Testing procedure | High temperature catalytic combustion |
| Detector | NDIR |
| Measured factors | TC, TIC, TOC, NPOC |
| Gas specifications | Oxygen / purity ≥ 99.995 % |
| Testing time | TC: around 4 minutes |
| Volume injected | TC: 100 to 500μL |
| Auto Sampler ( Optional ) | Sample capacity : 19 sample slots and 1 cleaning slot Sample container capacity : 60mL Ambient Temperature : 0 to 40 ℃ Relative Humidity : ≤ 85% Power Supply : AC100 to 240V, 50/60 Hz Power Consumption : 120W Packing dimension : 550 × 260 × 550 mm Volume : 0.078 cbm Net weight : 4kg Gross weight : 7 kg |
| Maximum allowable error | TOC: ± 5% |
| Repeatability | ≤ 3% |
| Mode of control | Computer-controlled |
| Power supply | AC 110 / 220 V , 50 / 60 Hz |
| Power consumption | 700 W |
| Packing dimension | 780 × 710 × 610 mm |
| Volume | 0.337cbm |
| Net weight | 46 kg |
| Gross weight | 64 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Delivers high-accuracy total organic carbon measurement for lab samples.
- Digital interface allows clear display and simple operation of settings.
- Streamlines sample processing with automated handling functions.
- Supports built-in calibration for consistent and precise results.
- Space-efficient design fits easily into various laboratory setups.
- TOC analyzer ensures high stability
- Suitable for liquid samples
- Accurate gas flow regulation
Applications
Where it is used
Application
Environmental Testing
Measures organic carbon levels for ecological studies and regulatory compliance
Application
Semiconductor Applications
Analyzes water to maintain proper conditions in semiconductor manufacturing
Application
Research Laboratories
Provides precise evaluation of water for scientific experiments and sample preparation
Application
Industrial Water Monitoring
Maintains stable conditions in process water for consistent operations
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
