Titrator
- Models
- LZ-PTM-A100; LZ-PTM-A101
- pH Range
- 0.00-14.00 pH
- pH Resolution
- 0.01pH
- pH Accuracy
- ±0.01 pH
- mV Range
- -1800.0-1800.0 mV
Potentiometric and automatic titration for assay and content determination.
Added to your inquiry list. It travels with your next quote request.
2 models
Product Description
Titrator specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

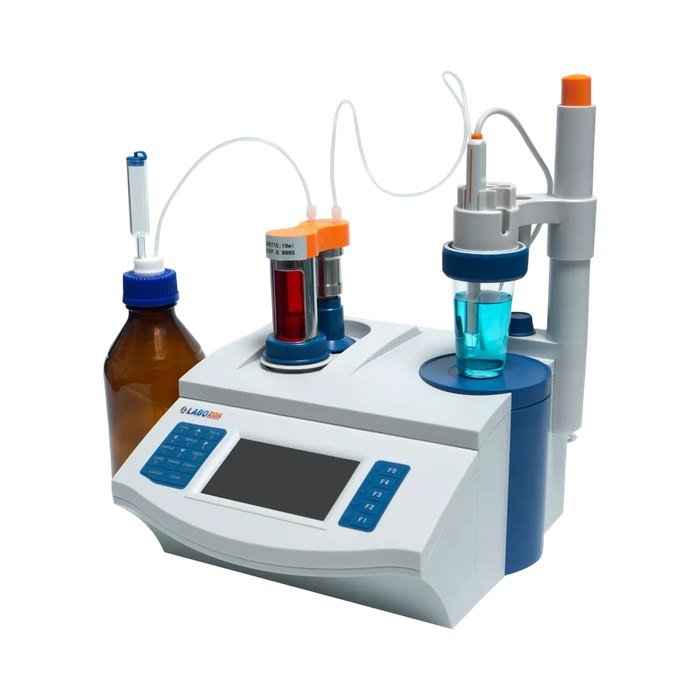

| LZ-PTM-A100 — Potentiometric Titrator | |
| pH Range | 0.00-14.00 pH |
| pH Resolution | 0.01pH |
| pH Accuracy | ±0.01 pH |
| mV Range | -1800.0-1800.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.05% FS |
| mV Fluctuation | ±0.3mV/3h |
| Temperature Range | (-5.0~105.0)°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.3°C |
| Burette Repeatability | 0.2% |
| Burette Accuracy | 10ml Burette: ±0.025ml 20ml Burette: ±0.035ml |
| Display | LCD |
| Titration Modes | DET, MET, SET, MAT |
| Interface | RS232 |
| Power Supply | 100-240V AC input, C24V output |
| Dimensions | 340×400×400 mm |
| Weight | 10 kg |

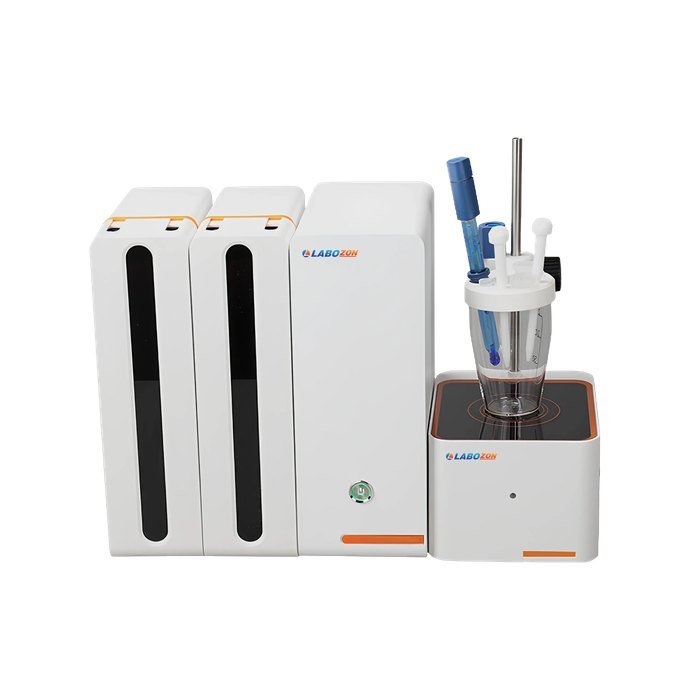

| LZ-PTM-A101 — Potentiometric Titrator | |
| Titration Type | Potentiometric Titration |
| mV Measuring Range | ±2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.1 mV |
| pH Measuring Range | -20.000 pH to +20.000 pH |
| pH Resolution | 0.001 pH |
| pH Accuracy | ±0.003 pH |
| Temperature Measuring Range | -5°C to 120°C |
| Temperature Accuracy | ±0.1°C |
| Communication Interfaces | 2 × USB, RS232, Ethernet |
| Maximum Titration Stations | 4 |
| Maximum Liquid Filling Modules | 4 |
| Burette Sizes | 1 ml, 5 ml, 10 ml, 25 ml |
| Burette Resolution | 1/1,500,000 |
| Burette Filling Time | 16 seconds (100% charging speed) |
| Auditing & Traceability | Yes |
| User Management | 3 Access Levels |
| PC Control | Yes |
| Electrode Connections | mV/pH Electrode, Reference Electrode, PT1000 Temperature Electrode |
| Sampler | 1 Independent Titration Station (Optional 12-, 16-, or 18-Position Auto Samplers) |
| Power Supply | 100–240 V, 50/60 Hz |
| Package Dimensions (W × D × H) | 415 × 345 × 370 mm |
| Gross Weight | 14 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Multiple Titration Modes
- High-Precision Burette System
- Enables both pH and mV measurements
- Stores up to 50 titration results
- Flexible Connectivity
- Automated Operation
- High-precision potentiometric titration
- Modular multi-channel design
Applications
Where it is used
- Automatic Potentiometric Titrator is widely used in laboratories for quantitative chemical analysis, include acid-base titration, redox titration, precipitation titration, and non-aqueous titration.
- Suitable for food testing, pharmaceutical analysis, environmental monitoring, water treatment, petrochemical laboratories, chemical industries, power generation, marine testing, commodity inspection, educational institutions, and scientific research laboratories.
