Safety & containment
Safety Cabinets
- Models
- LZ-ASC-A110; LZ-FSC-A100; LZ-FTC-A100; LZ-NCSC-A104
- Capacity
- 12 Gallon ( 45L)
- Material
- PP
- Shelf
- 1
- Door
- Single /Manual
Flammable, acid and chemical storage cabinets for controlled reagent keeping.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Safety Cabinets specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

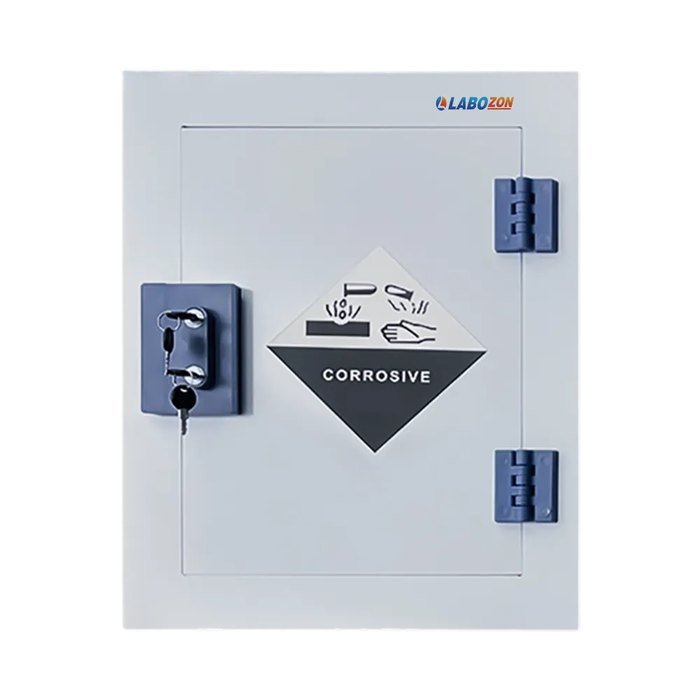

| LZ-ASC-A110 — Acid And Alkali Safety Storage Cabinet | |
| Capacity | 12 Gallon ( 45L) |
| Material | PP |
| Shelf | 1 |
| Door | Single /Manual |
| External Dimensions | 590 x 460 x 890 mm |
| Packing Dimensions | 675 x 545 x 1025 mm |
| Gross Weight | 30 kg |

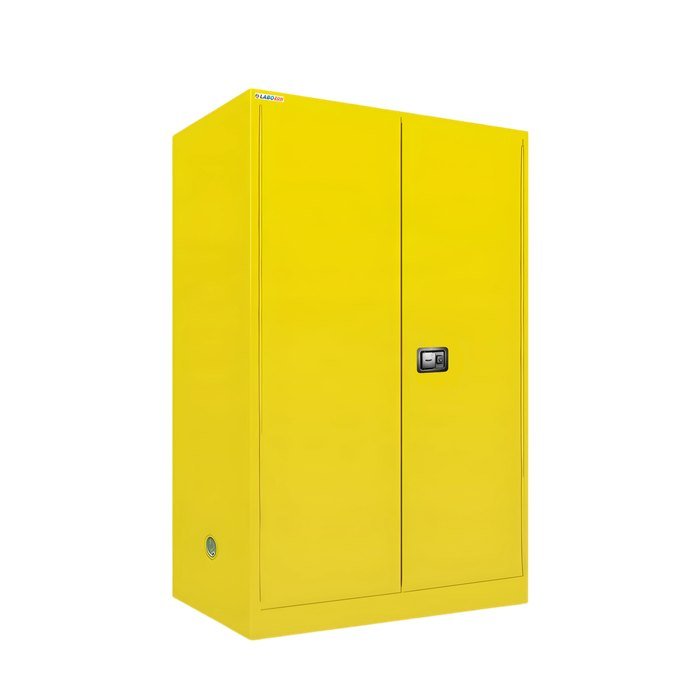

| LZ-FSC-A100 — Flammable Safety Cabinets | |
| Capacity Ga/Ltr | 60 / 227 L |
| Shelves | 2 |
| Shelves Capacity | 100 kg |
| Door | Manual Double door |
| Color | Yellow |
| Internal dimensions ( H x W x D ) | 1612 x 822 x 822 mm |
| External dimensions ( H x W x D ) | 1650 x 860 x 860 mm |
| Weight | 165 kg |

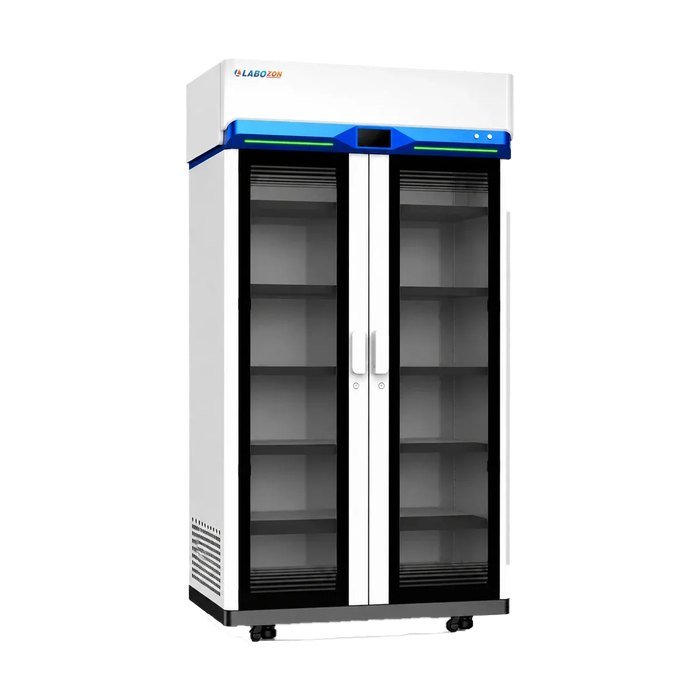

| LZ-FTC-A100 — Filtered Storage Cabinet | |
| Cabinet Type | Ductless Filtered Chemical Storage Cabinet |
| Bottle Capacity | 180 × 0.5 L Bottles |
| Airflow Volume | 180–230 m³/h |
| Noise Level | ≤46 dB |
| Number of Filters | ≥1 Modular Filter |
| Shelf Load Capacity | 100 kg |
| Cabinet Material | 304 Stainless steel |
| Shelving Material | Chemical-Resistant Composite PP |
| Display | 10.1-inch Color Touchscreen |
| Fan Type | DC Brushless Centrifugal Fan |
| Filter Monitoring | Automatic |
| Mobility | Lockable Heavy-Duty Casters |
| Internal Dimensions | 1065 × 510 × 1660 mm |
| External Dimensions | 1098 × 612 × 2130 mm |
| Power Consumption | 46 W |
| Power Supply | AC 100–240 V, 50 Hz |

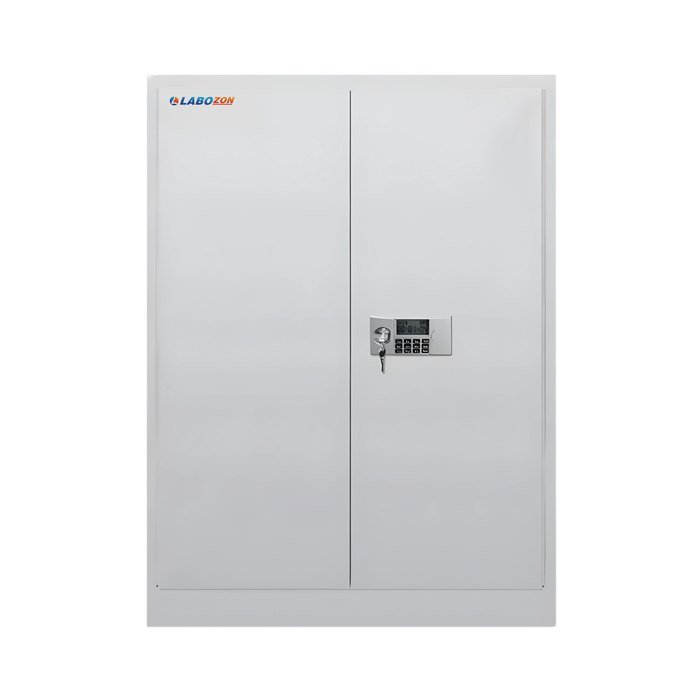

| LZ-NCSC-A104 — Narcotic Chemical Storage Cabinet | |
| Storage capacity | 227 L |
| Adjustable shelf | 2 |
| Shelf loading capacity | 100 kgs |
| Door configuration | Manual double-door configuration |
| Certification | CE |
| Internal dimensions ( W × D × H ) | 822 × 822 × 1612 mm |
| External dimensions ( W × D × H ) | 860 × 860 × 1650 mm |
| Net weight | 165 kgs |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Padlock-compatible locking design
- Height-adjustable internal shelves
- Anti-corrosive construction material
- Leak-proof base design
- Durable construction ensuring long service life in harsh laboratory environments
- Rugged and durable construction
- Maximum protection under fire conditions
- Double-wall cabinet construction with heavy-duty steel and 38mm air space efficiently isolates from combustion
Applications
Where it is used
- Used in analytical laboratories, research institutes, pharmaceutical facilities, chemical plants, and educational laboratories for safe storage of strong acids and alkalis.
- Designed for the safe storage of acids, bases, solvents, flammable chemicals, reagents, and laboratory chemicals while minimizing operator exposure to hazardous vapors.
- Narcotic Chemical Storage Cabinet is used in sectors such as healthcare, pharmaceuticals, biotechnology, research laboratories, educational institutions, and forensic science
