Spectroscopy
Refractometer
- Models
- LZ-BR-A110; LZ-BR-A120; LZ-BR-A125; LZ-PRM-A100; LZ-PSR-A100
- Brix
- 0-100%
Benchtop and portable refractive index measurement for concentration and identity.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Refractometer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LZ-BR-A110 — Benchtop Refractometer | |
| Brix | 0-100% |
| LZ-BR-A120 — Benchtop Refractometer | |
| Brix | 0-100% |

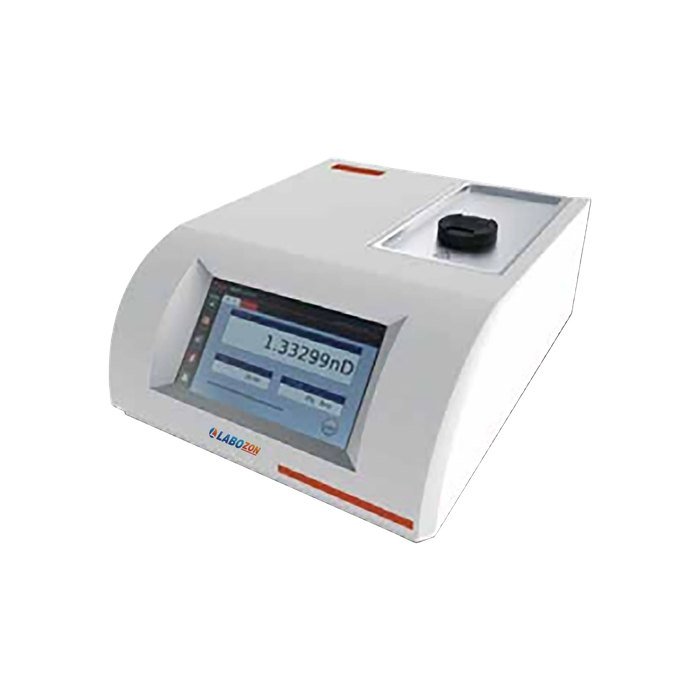

| LZ-BR-A125 — Benchtop Refractometer | |
| Refractive Index Range | 1.30000 – 1.70000 nD |
| Resolution | 0.00001 nD |
| Accuracy | ±0.00002 nD |
| Brix Range | 0 – 100 % |
| Brix Accuracy | ±0.01 % |
| Measurement Mode: | Refractive Index, Brix, Salinity, Honey Moisture, Custom Methods |
| Temperature Controller | Built-in Peltier System |
| Temperature Control Range | 5°C – 90°C |
| Temperature Stability | ±0.01°C |
| Light Source | LED |
| Wavelength | 589 nm |
| Prism Material | Sapphire |
| Sample Cell Material | Hastelloy |
| Detector | High-Resolution Linear CCD |
| Display | 7-inch TFT Color Touchscreen |
| Data Storage | 64 gb |
| Interface | USB, RS232, RJ45, SD Card, USB Flash Drive |
| User Management | Four-Level Authority Management |
| Audit Trail | Yes |
| Electronic Signature | Yes |
| Custom Method Library | Yes |
| File Verification | MD5 Protection |
| Export Formats | PDF, Excel |
| Dimensions (W × D × H) | 360 × 300 × 155 mm |
| Power Supply | 220 V, 50 Hz |
| Weight | 5 kg |

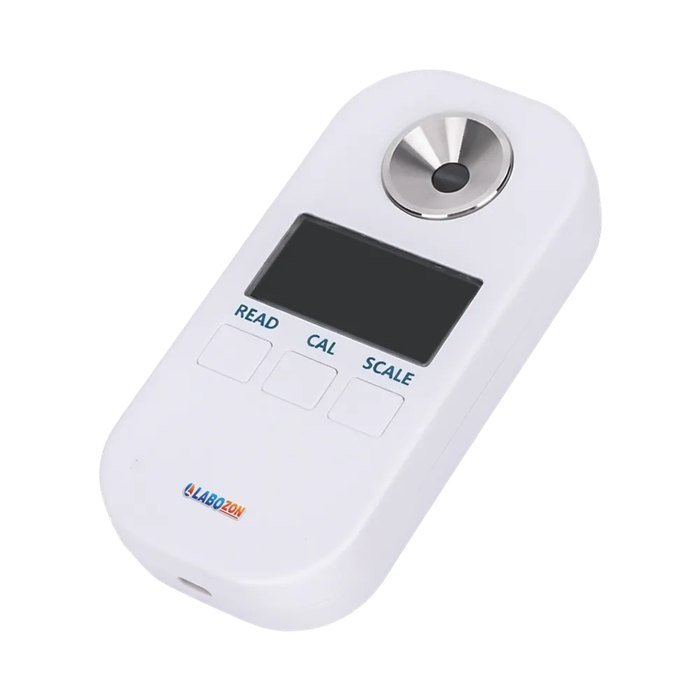

| LZ-PRM-A100 — Portable Refractometer | |
| Brix Range | 0.0 ~ 50.0 % |
| Wort | 1.000 ~ 1.130 |
| Resolution | 0.001 |
| Temperature | 0 °C ~ 50 °C |
| Battery | 1.5 V |
| Dimensions | 121 × 58 × 25 mm |
| Weight | 90 grams |

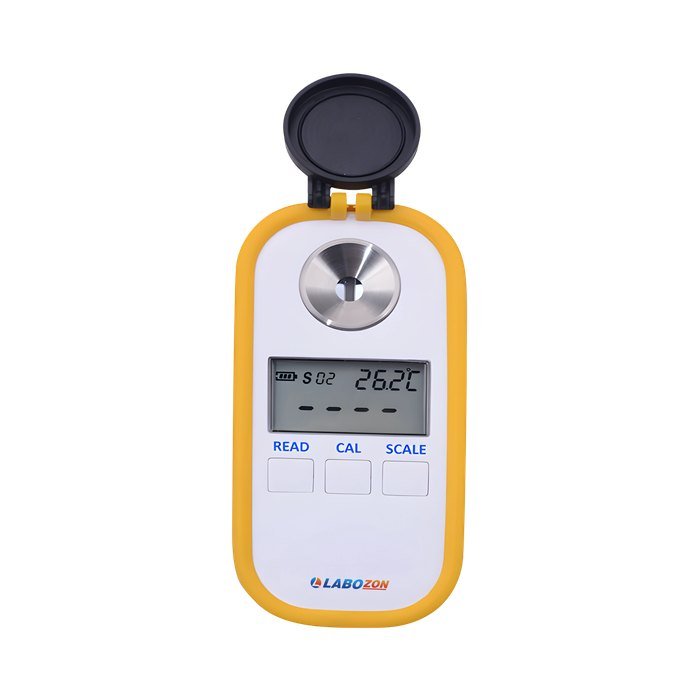

| LZ-PSR-A100 — Portable Salinity Refractometer | |
| Salinity Range | 0.0 – 100 % |
| Chlorinity Range | 0.0 – 57 % |
| Refractive Index | 1.3330 nD – 1.3530 nD |
| Specific Gravity | 1.000 – 1.070 |
| Salinity Resolution | 0.01 |
| Salinity Accuracy | ±0.02 |
| Chlorinity Resolution | 0.01 |
| Chlorinity Accuracy | ±0.02 |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Battery | 1.5 V |
| Dimensions (W×D×H) | 121 × 58 × 25 mm |
| Weight | 90 g |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Microprocessor controlled
- 7-inch color touch screen with Android system to display measurement data in one view
- High measuring resolution
- Built in Peltier accurate temperature control system with accuracy up to 0.02°C
- RS232 and USB interface, can be easily connected to printer and network to facilitate users for export or backup of data
- Abrasion and corrosion-resistant coating on sapphire prism, with excellent properties against corrosion and scratch free
- LED light source with long working life span of more than 100000hours
- High performance CCD sensor
Applications
Where it is used
- Benchtop Refractometer is used for precise measurement of refractive index or concentration of solutions in applications such as quality control, research laboratories, food and beverage analysis, pharmaceuticals, and chemical testing.
- Suitable for quality control and analysis in the food and beverage, pharmaceutical, petroleum, chemical, petrochemical, cosmetics, sugar, dairy, beverage, research, educational, and scientific laboratories.
- Suitable for measuring the salt concentration of seawater, saline solutions, aquaculture water, food products, pharmaceuticals, chemical processing, research laboratories, environmental monitoring, and quality control applications.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
