Weighing & measurement
Moisture Analyzer
- Models
- LZ-GMM-A100; LZ-GMM-A101; LZ-HMA-A100; LZ-HMA-A101; LZ-WMM-A100
- Measuring Element
- Grain
- Measuring Moisture Range
- 3-45%
- Repeat Error
- ≤0.2%
- Measuring Error
- ≤±0.5%
Halogen and infrared moisture balances for rapid loss-on-drying results.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Moisture Analyzer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

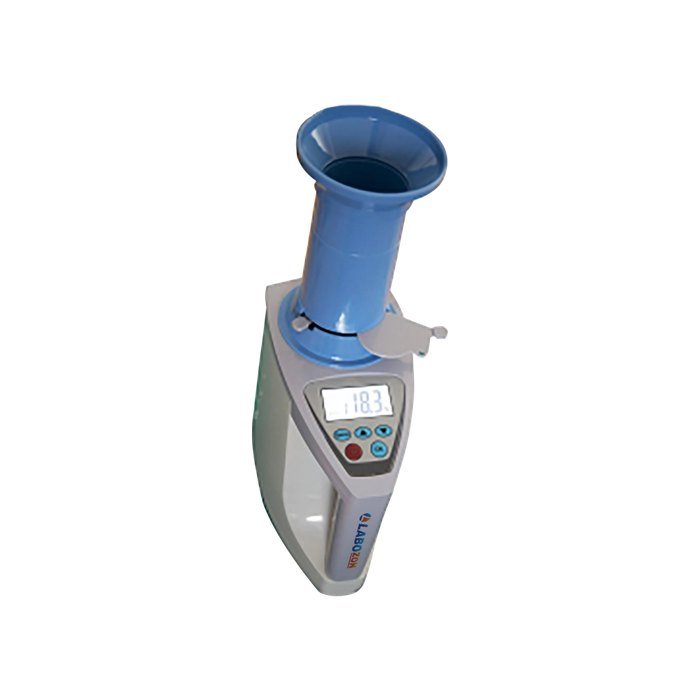

| LZ-GMM-A100 — Grain Moisture Meter | |
| Measuring Element | Grain |
| Measuring Moisture Range | 3-45% |
| Repeat Error | ≤0.2% |
| Measuring Error | ≤±0.5% |
| Timer | ≤10 seconds |
| Auto Power Off | 3 minutes shut down automatically |
| Working Temperature | 0-40°C |
| Temperature Adjustment | Automatic |
| Power Supply | 4pcs *1.5V AA batteries |
| Dimensions | 320 x 360 x 170 mm |
| Net Weight | 0.6 kg |

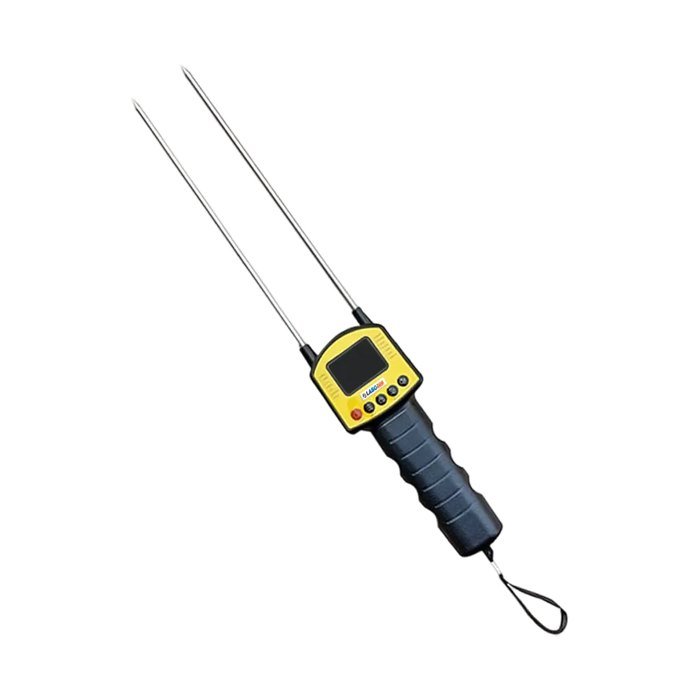

| LZ-GMM-A101 — Grain Moisture Meter | |
| Measurement Range | 5% – 49.9% |
| Resolution | 0.1% |
| Accuracy | ±0.5% |
| Correctable Moisture Range | 9% – 15% |
| Measured Materials | 14 Grain & Seed Types |
| Operating Temperature | -25°C to 50°C |
| Display | Digital LCD |
| Probe Type | Dual Stainless Steel Pins |
| Power Supply | 4 × AA Batteries |
| Weight | 500 g |

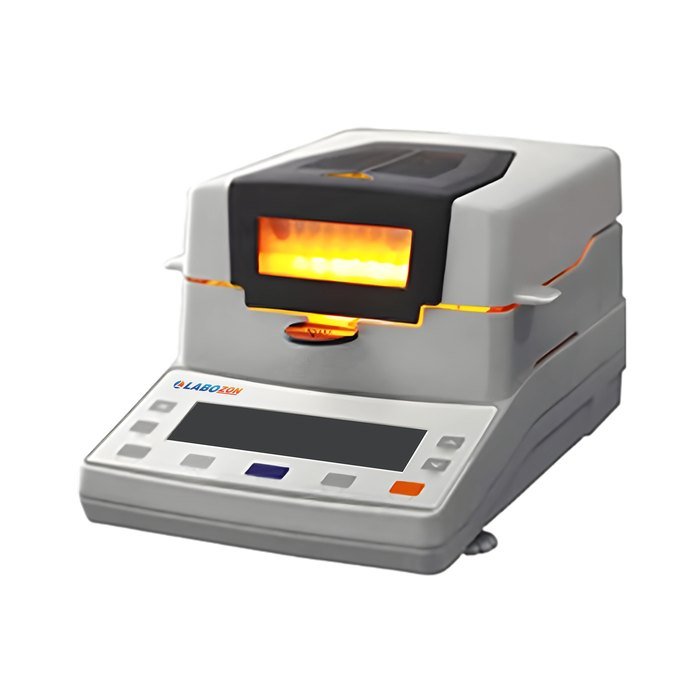

| LZ-HMA-A100 — Halogen Moisture Analyzer | |
| Capacity | 10 mg to 110 g |
| Readability | 10 mg |
| Temperature range | 40 to 199˚C |
| Sensor | Load cell |
| Heat source | Halogen lamp 1 |
| Pan size | 90 mm diameter |
| Operating temperature range | 5 to 35˚C |
| Temperature sensor | PT-100 |
| Temperature step | 1˚C |
| Temperature setting | 40 to 199˚C by 1˚C step |
| Time setting | 1 to 99 min by 10s step |
| Auto stop | 0.1 to 9.9 % within 1 min |
| Dry residual range | 0 to 100 % |
| Dry residual readability | 0.002 |
| Moisture range | 0 to 100 % |
| Moisture readability | 0.002 |
| Number of storage data | 15 |
| Number of history data | 15 |
| Display | 5 Inch Backlight LCD Display |
| Interface | RS 232 |
| Dimension | 490 × 360 × 350 mm |
| Gross weight | 7.5 kg |
| LZ-HMA-A101 — Halogen Moisture Analyzer | |
| Capacity | 5 mg to 110 g |
| Readability | 5 mg |
| Temperature range | 40 to 199˚C |
| Sensor | Load cell |
| Heat source | Halogen lamp 1 |
| Pan size | 90 mm diameter |
| Operating temperature range | 5 to 35˚C |
| Temperature sensor | PT-100 |
| Temperature step | 1˚C |
| Temperature setting | 40 to 199˚C by 1˚C step |
| Time setting | 1 to 99 min by 10s step |
| Auto stop | 0.1 to 9.9 % within 1 min |
| Dry residual range | 0 to 100 % |
| Dry residual readability | 0.002 |
| Moisture range | 0 to 100 % |
| Moisture readability | 0.001 |
| Number of storage data | 15 |
| Number of history data | 15 |
| Display | 5 Inch Backlight LCD Display |
| Interface | RS 232 |
| Dimension | 490 × 360 × 350 mm |
| Gross weight | 7.5 kg |

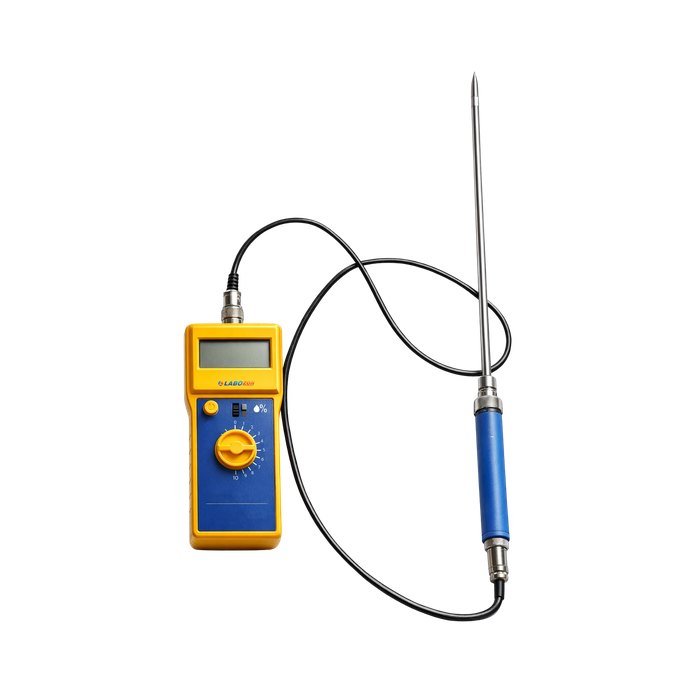

| LZ-WMM-A100 — Wood Moisture Meter | |
| Measuring Element | Wood |
| Moisture Range | 0 ~ 80% |
| Resolution | 0.001 |
| Timer | 1 second |
| Display | LCD |
| Probe length | 60cm |
| Power supply | one pc of 9V laminated battery |
| Dimensions | 160 x 60 x 27 mm |
| Weight | 200 g |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Auto weighing of the material
- Automatic Power off facility
- Temperature can be adjusted automatically
- Automatic measurement of moisture
- Automatic moisture correction when no material is measured
- Advanced revising mode
- User can decide the type of material and revise the moisture error
- Full-featured backlit graphic LCD display
Applications
Where it is used
- It is widely applied in agriculture, grain storage, food processing, and quality control laboratories. The device helps prevent spoilage, ensure proper storage, and maintain grain quality by providing fast and reliable moisture readings.
- Used for rapid moisture analysis of grains, cereals, seeds, and animal feed during harvesting, storage, transportation, and processing.
- Halogen Moisture Analyzer used for the testing and analysis of granular, pellets, pastes, and powder samples of food products, drug, dye, biomass, feed wood, herbal products, chemicals etc.
- It is widely applied in lumber processing, construction, woodworking, and quality control to prevent warping, cracking, and decay. The device ensures optimal wood quality and durability by providing fast and reliable moisture readings.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
