Weighing & measurement

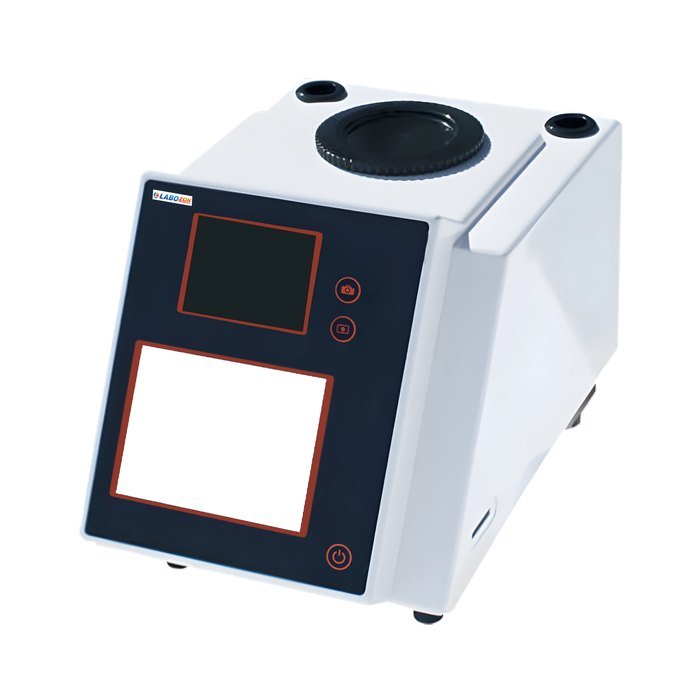

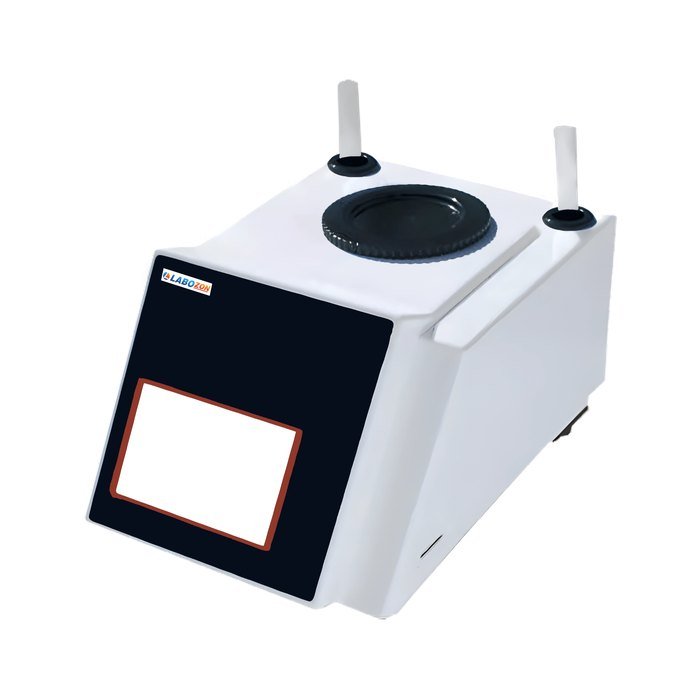

Melting Point Apparatus
- Models
- LZ-MPA-A100; LZ-MPA-A101; LZ-MPA-A102; LZ-MPA-A103; LZ-MPA-B110
- Temperature control range
- RT to 100℃
- Detection method
- Semi-automatic
- Capacity per batch
- 2pc./batch
- Temperature resolution
- 0.1℃
Capillary melting point determination for identity and purity checks.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Melting Point Apparatus specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LZ-MPA-A100 — Melting Point Apparatus | |
| Temperature control range | RT to 100℃ |
| Detection method | Semi-automatic |
| Capacity per batch | 2pc./batch |
| Temperature resolution | 0.1℃ |
| Temperature gradients | (0.1 to 10.0)℃/Min |
| Temperature accuracy | ±0.3℃ |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Camera & Video | Camera |
| Video playback | NA |
| Operator account | NA |
| Result storage | 200 |
| SD card capacity | 8G |
| Display | TFT Touch screen |
| Interface | USB RS232 SD card Enternet |
| Opening capillary size | I.D>1.0 mm, O.D.1.4 mm Double opening |
| Power consumption | 120 W |
| Power supply | 110 to 220 V, 50/60 Hz |
| Dimension | 400 × 280 × 330 mm |
| Weight | 5 kg |
| LZ-MPA-A101 — Melting Point Apparatus | |
| Temperature control range | 6 to 100℃ |
| Detection method | Semi-automatic |
| Capacity per batch | 2pc./batch |
| Temperature resolution | 0.1℃ |
| Temperature gradients | (0.1 to 10.0)℃/Min |
| Temperature accuracy | ±0.3℃ |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Camera & Video | Camera & Video |
| Video playback | YES |
| Operator account | 8 |
| Result storage | 400 |
| SD card capacity | 8G |
| Display | TFT Touch screen |
| Interface | USB RS232 SD card Enternet |
| Opening capillary size | I.D>1.0 mm, O.D.1.4 mm Double opening |
| Power consumption | 120 W |
| Power supply | 110 to 220 V, 50/60 Hz |
| Dimension | 400 × 280 × 330 mm |
| Weight | 5 kg |
| LZ-MPA-A102 — Melting Point Apparatus | |
| Temperature control range | RT to 100℃ |
| Detection method | Fully automatic (compatible with Semi-automatic) |
| Capacity per batch | 2pc./batch |
| Temperature resolution | 0.1℃ |
| Temperature gradients | (0.1 to 10.0)℃/Min |
| Temperature accuracy | ±0.3℃ |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Camera & Video | Camera |
| Video playback | NA |
| Operator account | 10 |
| Result storage | 600 |
| SD card capacity | 8G |
| Display | TFT Touch screen |
| Interface | USB RS232 SD card Enternet |
| Opening capillary size | I.D.1.0 mm, O.D.1.4 mm |
| Power consumption | 120 W |
| Power supply | 110 to 220 V, 50/60 Hz |
| Dimension | 400 × 280 × 330 mm |
| Weight | 5 kg |
| LZ-MPA-A103 — Melting Point Apparatus | |
| Temperature control range | 4 to 100℃ |
| Detection method | Fully automatic (compatible with Semi-automatic) |
| Capacity per batch | 2pc./batch |
| Temperature resolution | 0.1℃ |
| Temperature gradients | (0.1 to 10.0)℃/Min |
| Temperature accuracy | ±0.3℃ |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Camera & Video | Camera & Video |
| Video playback | YES |
| Operator account | 20 |
| Result storage | 1000 |
| SD card capacity | 16G |
| Display | TFT Touch screen |
| Interface | USB RS232 SD card Enternet |
| Opening capillary size | I.D.1.0 mm, O.D.1.4 mm |
| Power consumption | 120 W |
| Power supply | 110 to 220 V, 50/60 Hz |
| Dimension | 400 × 280 × 330 mm |
| Weight | 5 kg |
| LZ-MPA-B110 — Melting Point Apparatus | |
| Temperature Range | Room Temperature-400 ℃ |
| Detection Method | Automatic |
| Capacity | 4pcs/ batch |
| Temperature Resolution | 0.1 ℃ |
| Temperature Gradient | (0.1 to 20.0)℃/Min |
| Temperature Accuracy | ±0.3℃ ( 250℃) |
| Repeatability | 0.1℃/Min, ±0.1℃ |
| Exploration | YES |
| Display | TFT Touch Screen |
| Operator Account | 8 |
| Curve Storage | 10 |
| Result storage | 100 |
| Interface | USB RS232, SD Card Ethernet |
| Capillary Size | I.D. 1.0 mm, O.D. 1.4 mm |
| Power Consumption | 120 W |
| Power Supply | 110 to 220 V, 50/60 Hz |
| Dimensions | 430x320x370 mm |
| Weight | 6.5 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- TFT Touch Screen LCD Display
- High automatic integration, to achieve a key measurement function
- Peltier precise temperature function technology
- Semi-automatic detection method
- High-definition video instead of traditional visual microscope recording
- Designed with international and ISO in the determination of the melting point of oils and fats
- Measures four samples at the same time
- Automatically calculate average value of initial and final melting points
Applications
Where it is used
- Melting Point Apparatus used in chemical, pharmaceutical, textile, food and dye, petrochemical industries for determining melting point of different material intended for quality checking and research experiments
