Heating, cooling & storage

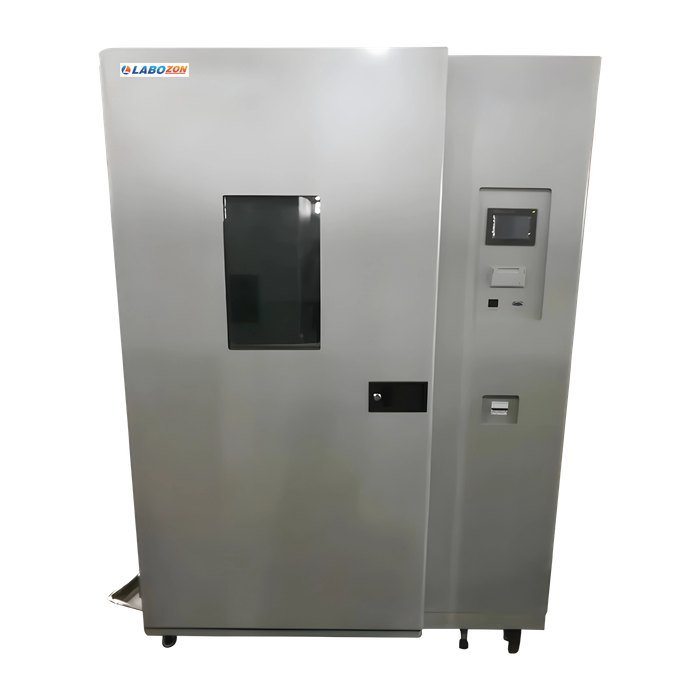

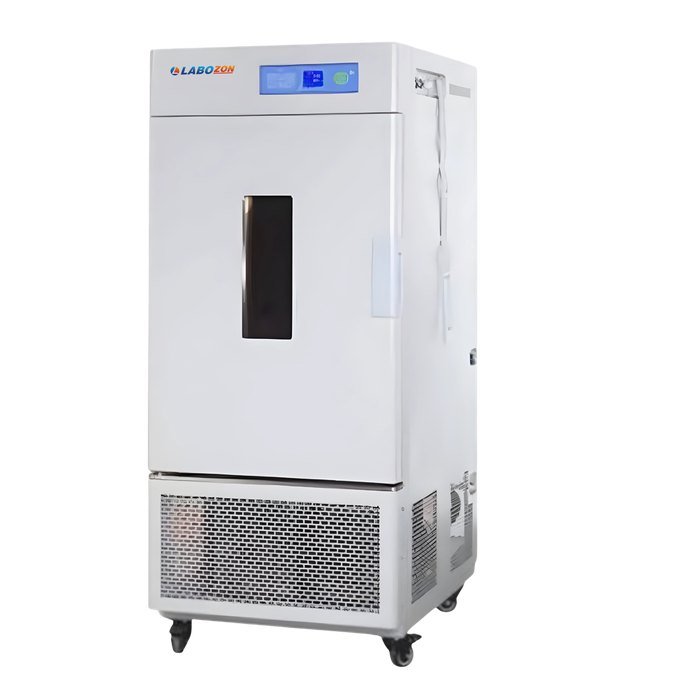

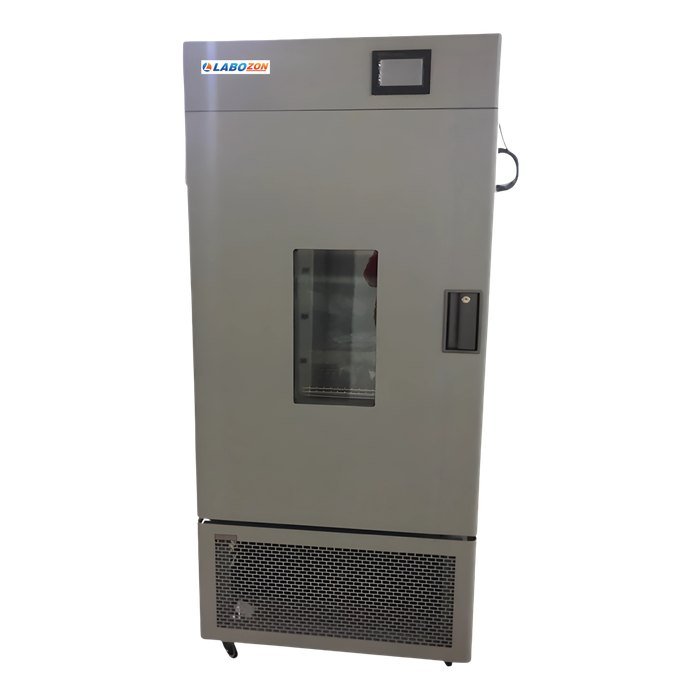

Medical Stability Test Chamber
- Models
- LZ-MSC-A100; LZ-MSC-A101; LZ-MSC-A102; LZ-MSC-A103
- Chamber Volume
- 150 L
- Temperature control range
- 0 to 65℃ without illumination, 10 to 50℃ with illumination
- Temperature Stability
- ±0.5℃
- Temperature Uniformity
- ±2℃
Medical Stability Test Chamber LZ-MSC-A100 is designed with a 150 L capacity volume.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Medical Stability Test Chamber specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LZ-MSC-A100 — Medical Stability Test Chamber | |
| Chamber Volume | 150 L |
| Temperature control range | 0 to 65℃ without illumination, 10 to 50℃ with illumination |
| Temperature Stability | ±0.5℃ |
| Temperature Uniformity | ±2℃ |
| Humidity Range | 35 to 95 % RH |
| Humidity Stability | ±3 % RH |
| Illumination | 0 to 6000 LX adjustable |
| Illumination difference | ≤± 500 LX |
| Timing Range | 1 to 99 hours each period |
| Humidity and temp adjusting | Balance temperature and humidity adjusting |
| Cooling system/cooling mode | Two sets of imported compressor work rotationally |
| Controller | Programmable ( LCD screen) |
| Sensor | Temperature Pt 100, Humidity: capacitance sensor |
| Ambient Temperature | RT+5 to 30℃ |
| Shelves | 3 pcs |
| Safety Device | Compressor overheating and overpressure protection, Fan overheating protection Over temperature protection, Overload protection, Water protections |
| Internal Dimension | 550 × 405 × 670 mm |
| External dimension | 690 × 805 × 1530 mm |
| Power Consumption | 2250 W |
| Power supply | AC 220V, 50 Hz |
| Net weight | 186 kg |
| Gross weight | 230 kg |
| LZ-MSC-A101 — Medical Stability Test Chamber | |
| Chamber Volume | 250 L |
| Temperature control range | 0 to 65℃ without illumination, 10 to 50℃ with illumination |
| Temperature Stability | ±0.5℃ |
| Temperature Uniformity | ±2℃ |
| Humidity Range | 35 to 95 % RH |
| Humidity Stability | ±3 % RH |
| Illumination | 0 to 6000 LX adjustable |
| Illumination difference | ≤± 500 LX |
| Timing Range | 1 to 99 hours each period |
| Humidity and temp adjusting | Balance temperature and humidity adjusting |
| Cooling system/cooling mode | Two sets of imported compressor work rotationally |
| Controller | Programmable ( LCD screen) |
| Sensor | Temperature Pt 100, Humidity: capacitance sensor |
| Ambient Temperature | RT+5 to 30℃ |
| Shelves | 3 pcs |
| Safety Device | Compressor overheating and overpressure protection, Fan overheating protection Over temperature protection, Overload protection, Water protections |
| Internal Dimension | 600 × 500 × 830 mm |
| External dimension | 740 × 890 × 1680 mm |
| Power Consumption | 2500 W |
| Power supply | AC 220V, 50 Hz |
| Net weight | 196 kg |
| Gross weight | 250 kg |
| LZ-MSC-A102 — Medical Stability Test Chamber | |
| Chamber Volume | 500L |
| Temperature Control Range | 0 to 65°C without illumination, 10 to 50°C with illumination |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity | ±2 °C |
| Humidity Range | 35 to 95%RH |
| Humidity Stability | ±3%RH |
| Illumination | 0 to 6000LX adjustable |
| Refrigerant | R134a |
| Illumination Difference | ≤±500LX |
| Cooling System/Cooling Mode | Two sets of imported compressor work rotationally |
| Controller | Programmable (touch screen) |
| Sensor | Temp: Pt100, Humidity: capacitance sensor |
| Ambient Temperature | RT+5 to 30°C |
| Shelves | 4 pcs |
| Safety Device | Compressor overheating and overpressure protection, Fan overheating protection, Over temperature protection, Overload protection, Water protections |
| Internal Dimension(W×D×H) | 670×725×1020 mm |
| External Dimension(W×D×H) | 850×1100×1930 mm |
| Power Consumption | 3750 W |
| Power supply | AC220V 50Hz |
| LZ-MSC-A103 — Medical Stability Test Chamber | |
| Chamber Volume | 800L |
| Temperature Control Range | 0 to 65°C without illumination, 10 to 50°C with illumination |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity | ±2 °C |
| Humidity Range | 35 to 95%RH |
| Humidity Stability | ±3%RH |
| Illumination | 0 to 6000LX adjustable |
| Refrigerant | R134a |
| Illumination Difference | ≤±500LX |
| Cooling System/Cooling Mode | Two sets of imported compressor work rotationally |
| Controller | Programmable (touch screen) |
| Sensor | Temp: Pt100, Humidity: capacitance sensor |
| Ambient Temperature | RT+5 to 30°C |
| Shelves | 4 pcs |
| Safety Device | Compressor overheating and overpressure protection, Fan overheating protection, Over temperature protection, Overload protection, Water protections |
| Internal Dimension(W×D×H) | 800×590×1650 mm |
| External Dimension(W×D×H) | 1360×890×2000 mm |
| Power Consumption | 7150 W |
| Power supply | AC380V 50Hz |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Designed with microprocessor control, stainless steel chamber, semicircular arcs at corners for easy cleaning
- Offers 100 groups with 1000 periods 999 circulations, max timing for each period is 99 hours 59 minute
- Over-temperature and temperature difference alarms
- Imported humidity sensor which can be used in high humidity environment
- Equipped with R134a refrigerant, 2 imported compressors, and fan motor
- Designed with a large LCD screen to display more data at the same time
- Balance temperature and humidity adjusting system
- Offers 25 mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
