Sample prep & stability
Magnetic Stirrer
- Models
- LZ-LSH-A100; LZ-MSH-B102; LZ-MSH-D100; LZ-MSH-E130; LZ-OSR-A110
- Maximum Stirring Quantity
- 30 L
- Speed Range
- 50-1300 rpm
- Speed Accuracy
- ±5rpm
- Timer
- 1 min 23h59min
Hotplate and multi-position magnetic stirring for reagent and media preparation.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Magnetic Stirrer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

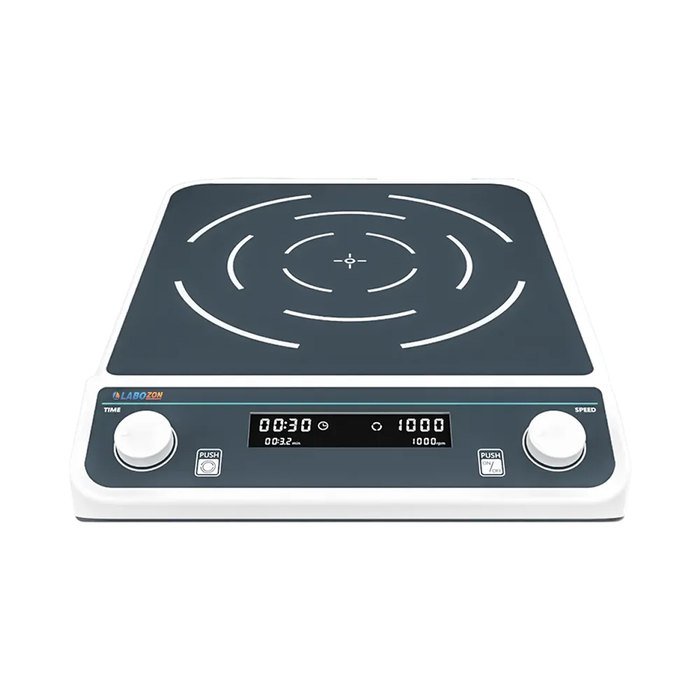

| LZ-LSH-A100 — Large Capacity Magnetic Stirrer | |
| Maximum Stirring Quantity | 30 L |
| Speed Range | 50-1300 rpm |
| Speed Accuracy | ±5rpm |
| Timer | 1 min 23h59min |
| Work Plate Size | 260 x 260 mm |
| Stir Bar | 80 mm |
| Motor | Brushless Motor |
| Display | LCD |
| Adjust Mode | Display & Knob |
| Power | 30 W |
| External Dimensions | 350 x 260 x 85 mm |
| Packing Dimensions | 445 x 360 x 120 mm |
| Weight | 5.5 kg |

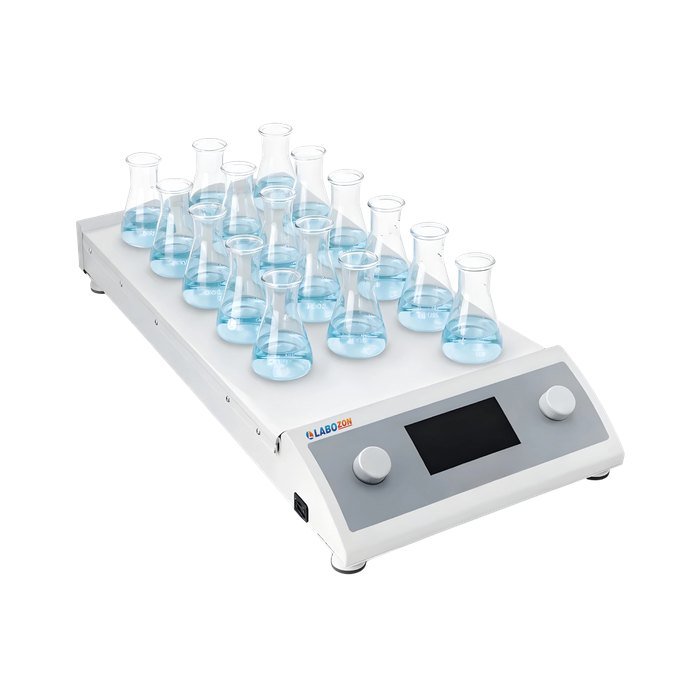

| LZ-MSH-B102 — Multi-Position Hotplate Magnetic Stirrer | |
| Work plate Dimension | 460x304 mm |
| Work plate material | Aluminum |
| Motor type | Brushless DC motor |
| Stirring positions | 15 |
| Max. stirring quantity | 0.4L x 15 |
| Max. magnetic bar length | 40 mm |
| Speed range | 0-1500 rpm |
| Speed control accuracy | ±10rpm |
| Timer | 0min-99h 59min |
| Display | LCD |
| Environmental conditions | 5-40℃，80%RH |
| Protection class | IP21 |
| Power consumption | 40 W |
| Power supply | 110V/220V50Hz/60Hz |
| Weight | 9.2kg |
| Dimension | 615x307x90 mm |

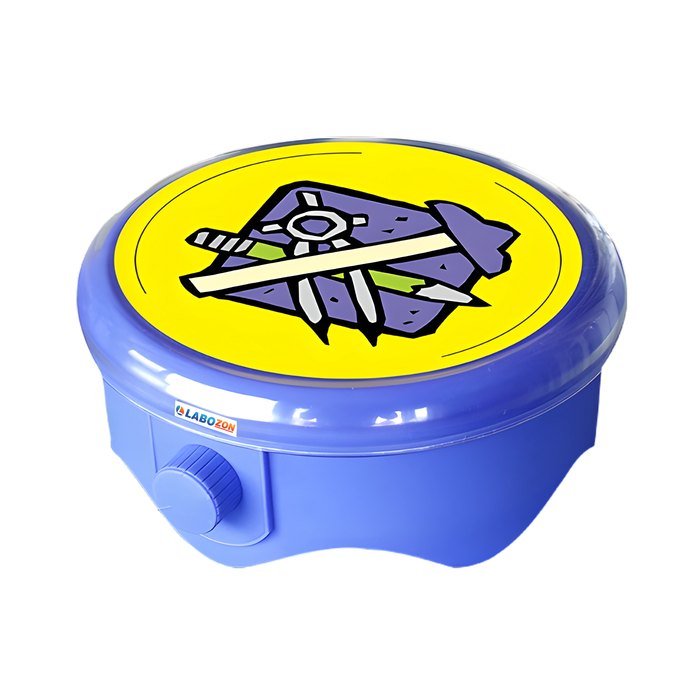

| LZ-MSH-D100 — Mini Magnetic Stirrer | |
| Work Plate Dimension | 145 mm |
| Work Plate Material | PC |
| Max. Stirring Quantity | 2L |
| Speed Range | 0 to 1250 rpm |
| Stir Bar Size | 30×7 mm |
| Dimensions | 185×75mm |
| Power Supply | AC 220V/50Hz |
| Weight | 0.6 kg |

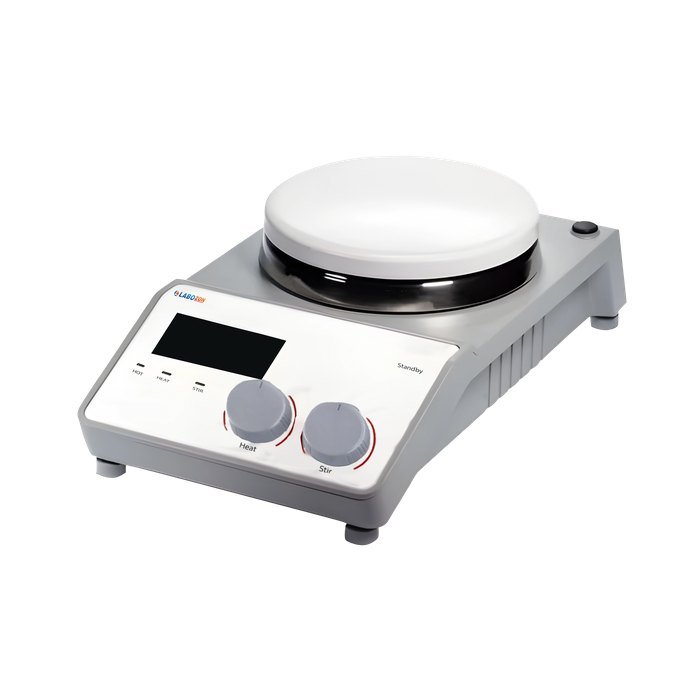

| LZ-MSH-E130 — Hot Plate Magnetic Stirrer | |
| Work Plate Dimension | 135× 135 mm |
| Work Plate Material | Stainless Steel cover with ceramic |
| Motor | Brushless DC motor |
| Max. Stirring Quantity | 20 L |
| Max. magnetic Bar(length) | 80mm |
| Speed Range | 100 to 1500 rpm |
| Hot Plate Temperature | 340°C |
| Ambient Temperature | 5-40°C |
| Temperature control accuracy | ±1°C( 100°C) |
| Display | LCD |
| Dimensions | 160× 280× 85 mm |
| Power Consumption | 550W |
| Electrical Supply | AC 100-200/200-240V 50/60Hz |
| Weight | 2.8 kg |

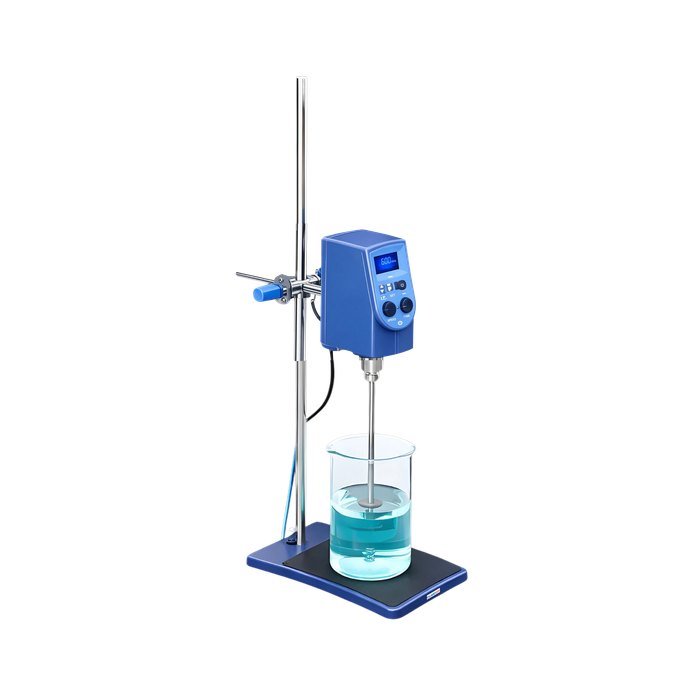

| LZ-OSR-A110 — Overhead Stirrer | |
| Maximum Stirring Capacity | 40 L |
| Plate Dimensions | 200 x 300 mm |
| Plate Load | 50 kg |
| Speed Range | 100 to 2500 rpm |
| Minimum Resolution | 100 rpm |
| Maximum Vicosity | 15000 Mpas |
| Working Time | Continous |
| Motor | Brushless |
| Continous Operation | Yes |
| Display | LCD |
| Timer | Yes |
| Power Supply | 100 ~ 240 V |
| Exterior Dimensions | 115 x 95 x 240 mm |
| Packing Dimensions | 400 x 250 x 210 mm |
| Net Weight | 7.5 kg |
| Gross Weight | 8.5 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Large-capacity magnetic stirring system with up to 30 L
- Adjustable stirring speed
- Stable magnetic drive
- Suitable for continuous laboratory operation
- Compact and durable design
- Low-noise operation
- Easy-to-use control interface
- Energy-efficient design for long-term use
Applications
Where it is used
- Used for liquid mixing, reagent preparation, buffer formulation, chemical analysis, pharmaceutical research, educational experiments, biotechnology, and industrial laboratory applications.
- Multi-position Hotplate Magnetic Stirrer used in physical and chemical, bio-chemical analysis, bio-pharmaceuticals and other fields for different scientific research and quality testing of materials.
- Mini Magnetic Stirrer is a compact benchtop device designed to mix liquid samples smoothly and uniformly using a rotating magnetic field and stir bar. It is ideal for laboratories with limited space, offering quiet, stable stirring for routine sample preparation and general mixing tasks.
- Hotplate Magnetic Stirrer used in physical and chemical, bio-chemical analysis, bio-pharmaceuticals and other fields for different scientific research and quality testing of materials.
